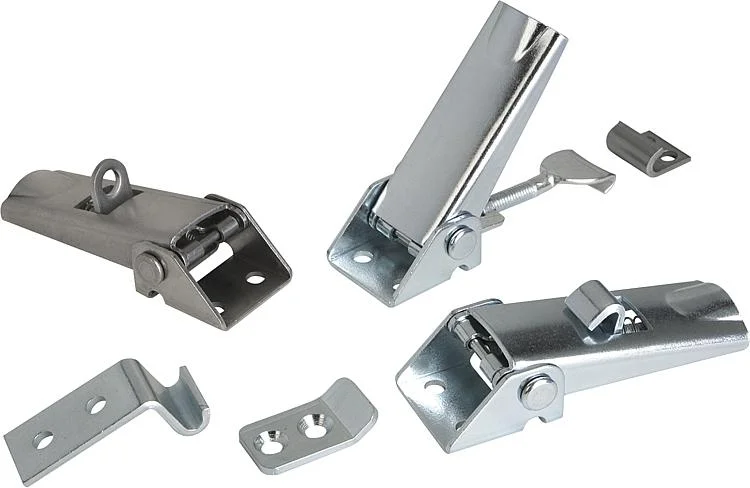

K0046 Kipp Latches adjustable fastening holes accessible
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.
Steel trivalent blue passivated.
Stainless steel bright.
Adjustable latches are secure locking systems for industrial applications. By exceeding the dead centre they resist vibration.
After the hook is engaged with the catch plate, the parts to be locked can be drawn together by up to 5 mm by pushing the lever down.
To compensate for tolerances or to create enough tension, the hook length can be adjusted using the M5 threaded spindle.
The latches can be screwed down or riveted.
Any catch plate can be combined with any latch.
Order required catch plate version separately.
The retaining force F1 applies to the latch, not the catch plate.
Form A standard
Form B with safety catch
Form C with padlock bracket
