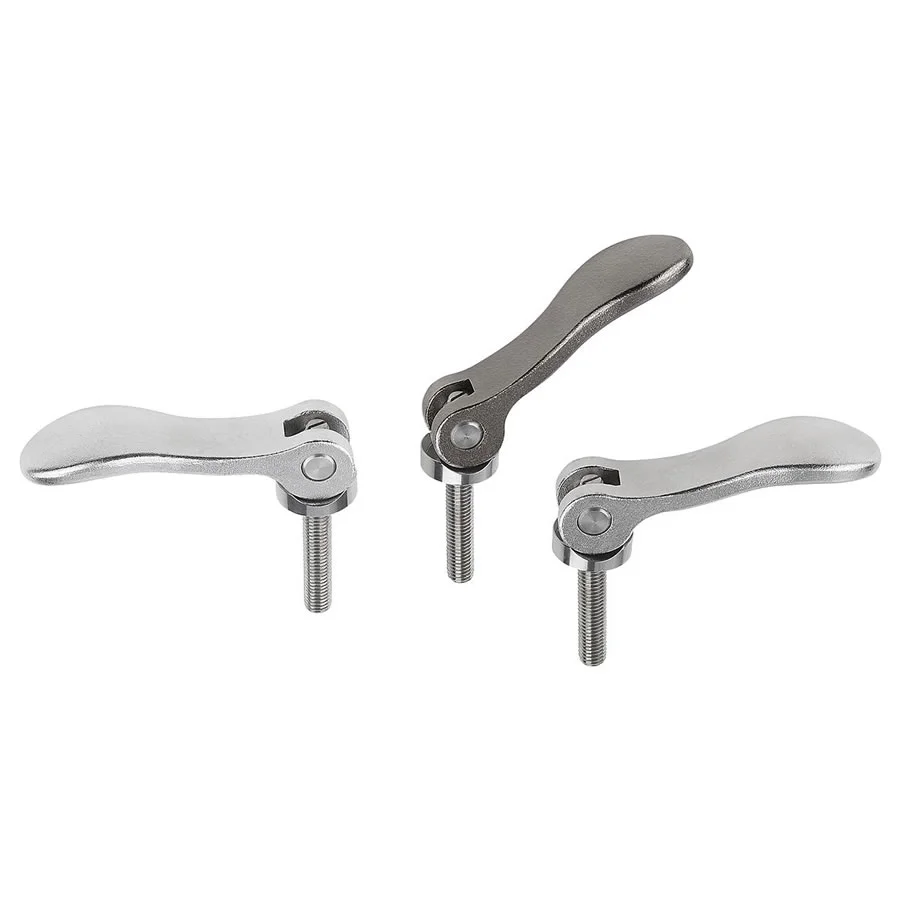

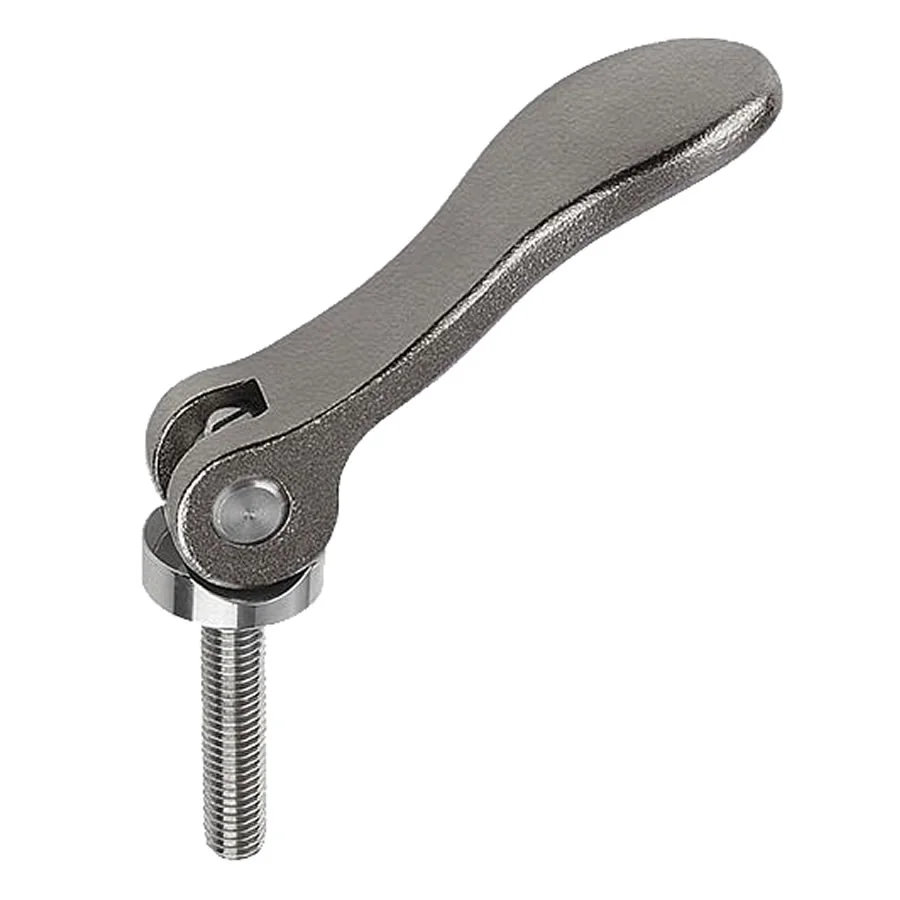

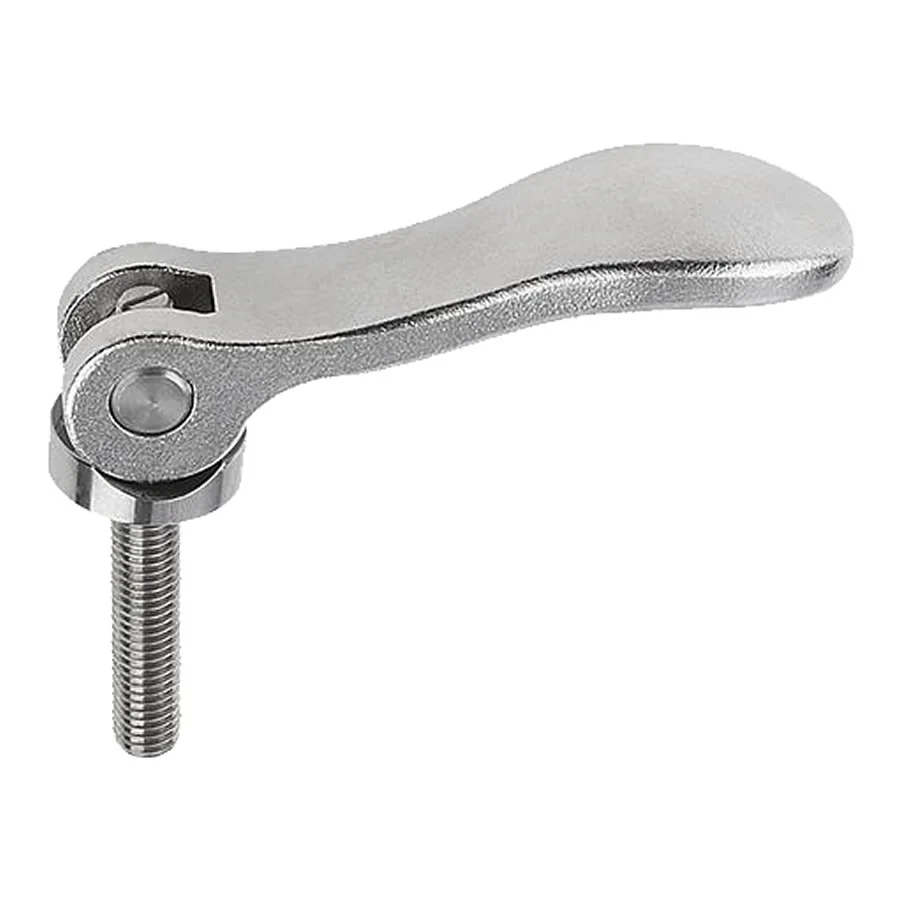

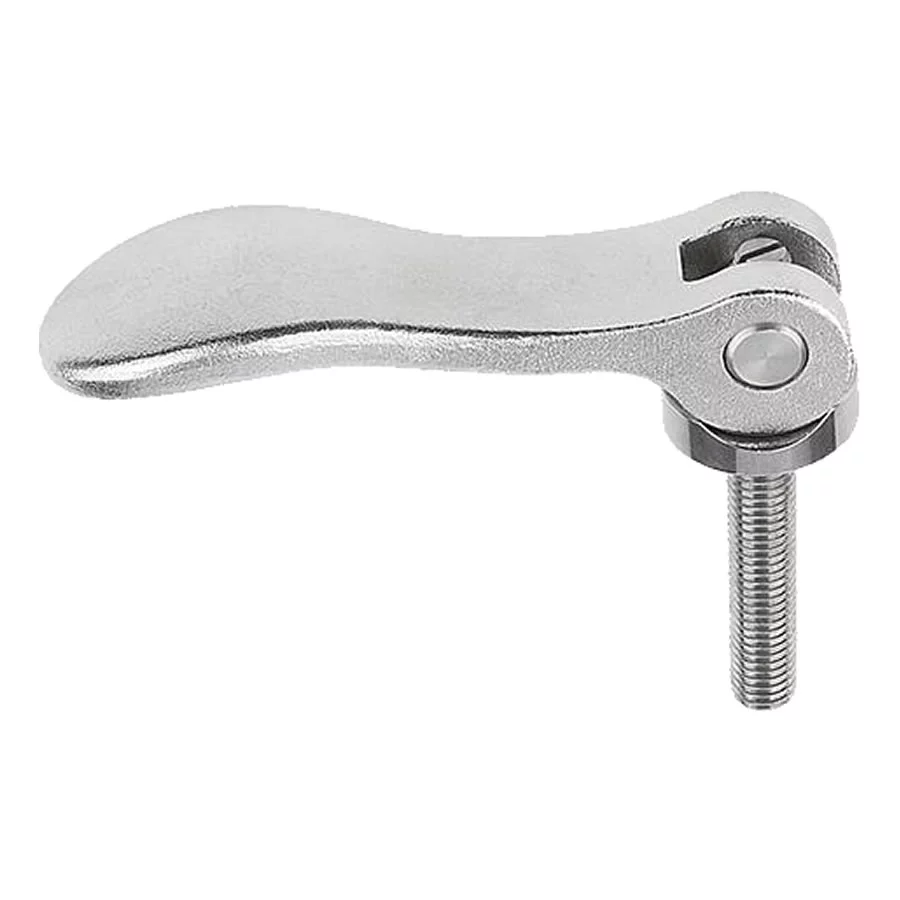

K0647 Kipp cam levers adjustable external thread, stainless steel, thrust washer stainless steel

Material:
Handle 1.4308 stainless steel.
Thrust washer 1.4034 stainless steel, hardened.
Hinge pin and stud 1.4305 stainless steel.

Version:
Handle electropolished or blasted.
Thrust washer, hinge pin and screw bright.

Note:
Adjustable cam levers are used when the position of the clamping lever relative to the clamping axis permits only one specific position (swing circle interference). The exact position of the clamping lever is adjusted with a screwdriver via the fine thread on the stud.

The thrust washer face is lightly greased before delivery.
The grease is FDA conform and is suitable for use in the foodstuff and pharmaceutical industries.

Drawing reference:
1) setscrew for fine adjustment of lever

Special features:


Order No. K0647.9541003X10 K0647.9541003X15 K0647.9541003X30 K0647.9541004X10 K0647.9541004X15 K0647.9541004X30 K0647.0541004X15 K0647.0541004X20 K0647.0541004X30 K0647.0541005X20 K0647.0541005X30 K0647.0541005X40 K0647.0541005X50 K0647.1541005X20 K0647.1541005X30 K0647.1541005X40 K0647.1541005X50 K0647.1541006X20 K0647.1541006X30 K0647.1541006X40 K0647.1541006X50 K0647.2541008X25 K0647.2541008X30 K0647.2541008X40 K0647.2541008X50 K0647.2541010X25 K0647.2541010X30 K0647.2541010X40 K0647.2541010X50 K0647.9541303X10 K0647.9541303X15 K0647.9541303X30 K0647.9541304X10 K0647.9541304X15 K0647.9541304X30 K0647.0541304X15 K0647.0541304X20 K0647.0541304X30 K0647.0541305X20 K0647.0541305X30 K0647.0541305X40 K0647.0541305X50 K0647.1541305X20 K0647.1541305X30 K0647.1541305X40 K0647.1541305X50 K0647.1541306X20 K0647.1541306X30 K0647.1541306X40 K0647.1541306X50 K0647.2541308X25 K0647.2541308X30 K0647.2541308X40 K0647.2541308X50 K0647.2541310X25 K0647.2541310X30 K0647.2541310X40 K0647.2541310X50
