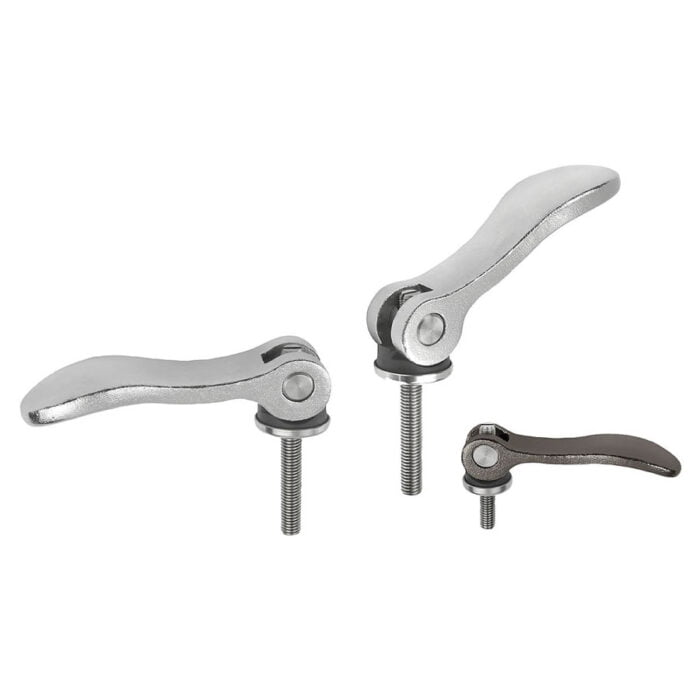

K0647 Kipp cam levers adjustable external thread, stainless steel
Product Specification Datasheet for K0647 Kipp cam levers adjustable external thread, stainless steel
Handles 1.4308 stainless steel.
Thrust washer plastic PA 66 GF 35-X, fibreglass reinforced.
Hinge pin, washer and screw 1.4305 stainless steel.
Handle electropolished or blasted.
Thrust washer black.
Hinge pin, washer and screw bright.

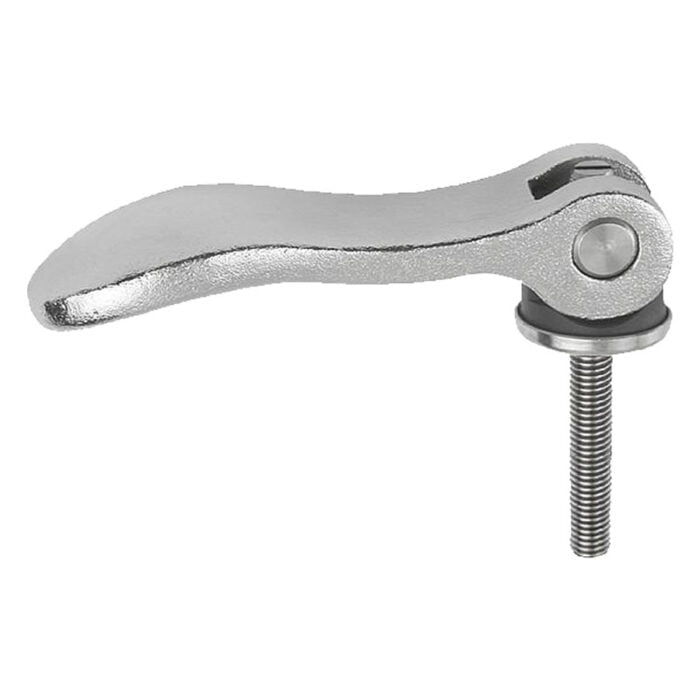

Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).
1) setscrew for fine adjustment of lever
Order No. K0647.9512003X10 K0647.9512003X15 K0647.9512003X30 K0647.9512004X10 K0647.9512004X15 K0647.9512004X30 K0647.0512004X15 K0647.0512004X20 K0647.0512004X30 K0647.0512005X20 K0647.0512005X30 K0647.0512005X40 K0647.0512005X50 K0647.1512005X20 K0647.1512005X30 K0647.1512005X40 K0647.1512005X50 K0647.1512006X20 K0647.1512006X30 K0647.1512006X40 K0647.1512006X50 K0647.2512008X25 K0647.2512008X30 K0647.2512008X40 K0647.2512008X50 K0647.2512010X25 K0647.2512010X30 K0647.2512010X40 K0647.2512010X50 K0647.9512303X10 K0647.9512303X15 K0647.9512303X30 K0647.9512304X10 K0647.9512304X15 K0647.9512304X30 K0647.0512304X15 K0647.0512304X20 K0647.0512304X30 K0647.0512305X20 K0647.0512305X30 K0647.0512305X40 K0647.0512305X50 K0647.1512305X20 K0647.1512305X30 K0647.1512305X40 K0647.1512305X50 K0647.1512306X20 K0647.1512306X30 K0647.1512306X40 K0647.1512306X50 K0647.2512308X25 K0647.2512308X30 K0647.2512308X40 K0647.2512308X50 K0647.2512310X25 K0647.2512310X30 K0647.2512310X40 K0647.2512310X50
