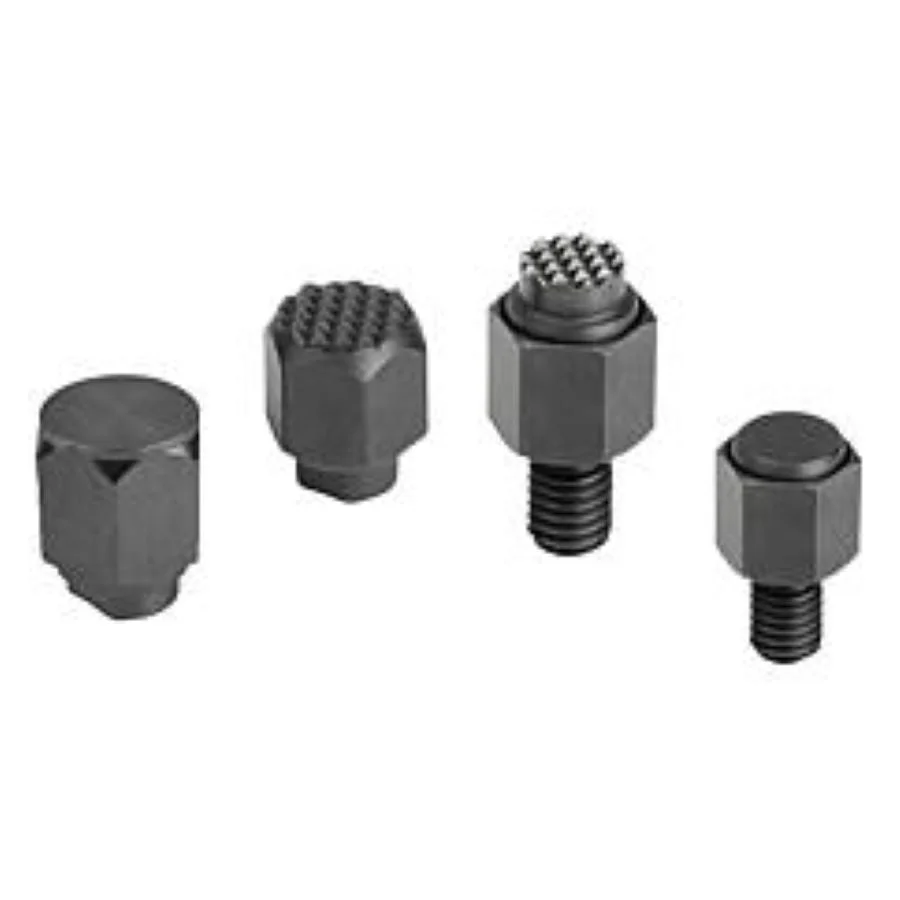

K1164 Kipp self-aligning pads self-righting
Product Specification Datasheet for K1164 Kipp self-aligning pads self-righting
Material:
Form C and F:
Ball steel, ball seat high-carbon steel.
Form G and J:
Ball high-carbon steel, ball seat steel.
Version:
Form C and F:
Ball hardened and black oxidised, ball seat phosphated.
Form G and J:
Ball phosphated, ball seat hardened and black oxidised.
Note:
The self-aligning pads serve as stops, rests and thrust pads in fixture construction.
The seating face returns to the start position when the load is removed.
Ball secured against rotation.
Drawing reference:
Form C: male thread, flattened ball, smooth
Form F: male thread, flattened ball, diamond grip
Form G: press fit, flattened ball, smooth
Form J: press fit, flattened ball, diamond grip
Special features:
Order No. K1164.106 K1164.108 K1164.110 K1164.112 K1164.116 K1164.306 K1164.308 K1164.310 K1164.312 K1164.316 K1164.403 K1164.404 K1164.405 K1164.406 K1164.408 K1164.603 K1164.604 K1164.605 K1164.606 K1164.608
