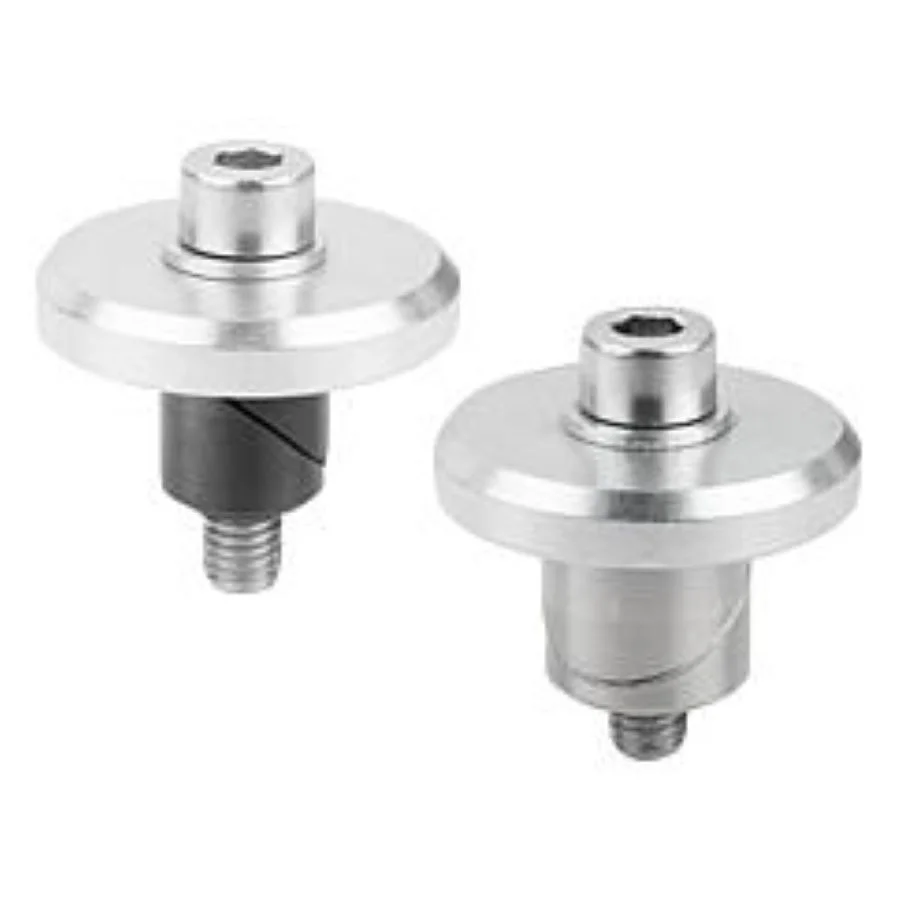

K1504 Kipp clamping pin, steel or stainless steel with washer

Material:
Washer steel 1.0715.
Wedges steel 1.0715 or stainless steel 1.4305.

Version:
Washer electro zinc-plated.
Wedges black oxidised or blank.

Note:
For fixating adapter plates, angles and plates open on grid hole tables or plates with Ø16 mm, Ø20 mm or Ø28 mm holes. Can also be used as a point end stop for positioning and fixating exchange clamping plates. By turning the cap screw, the lock wedges expand in the bore.

Advantages:
Functions also in thin table material (metal: ≥8 mm or ≥4 mm ; wood ≥18 mm).
Gentle clamping in the bore.
Low height.

Special features:

Order No. K1504.016 K1504.120 K1504.028
