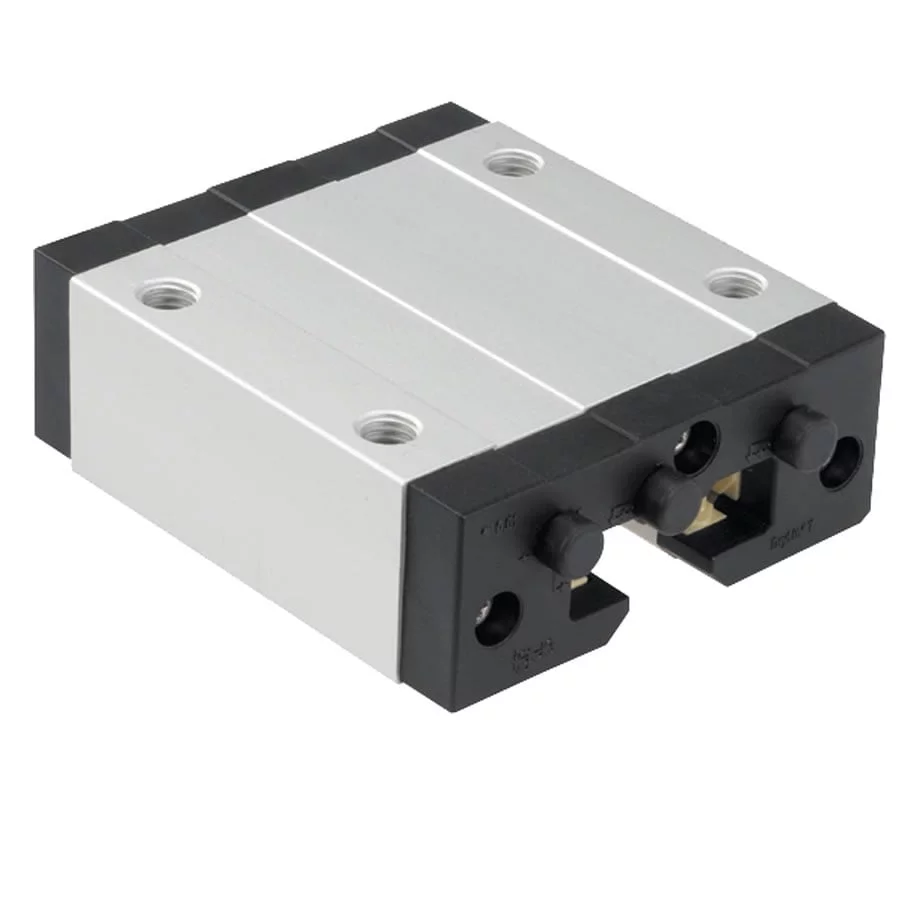

Norelem 21200 Carriages DryLin® T
Product Specification Datasheet for Norelem 21200 Carriages DryLin® TView CAD Files
Technical Data for Norelem 21200 Carriages & Guide rails DryLin® T
Sliding carriages with a low rate of inerita. High accelerations and short term extreme speeds up to 30 m/s are possible. DryLin® T linear glide guides are resistant to dirt and corrosion and are adjustable, maintenance-free and quiet. Application temperature max. 80°C.
As no lubricants are used they are recommended for use in food, medical, and clean room technologies. Manual clamping was developed for simple functions. Polymer under constant pressure has a tendency to creep which causes a decrease in clamping force over time (up to 70%), which means that no safety-relevant parts should be clamped.
- Suitable guide rails Norelem 21200 Guide rails DryLin® T
- Material:
Sliding carriage: Base structure in extruded section, aluminium EN AW-6060.
Sliding elements: Maintenance free plain bearing iglidur® J.
Cap: Thermoplastic - Version:
Eloxal-coated E6/EV1. Black thermoplastic
Order No: 21200-1500 21200-2000 21200-2500 21200-3000 21200-1510 21200-2010 21200-2510 21200-3010 21200-1520 21200-2020 21200-2520 21200-3020 21200-1530 21200-2030 21200-2530 21200-3030
