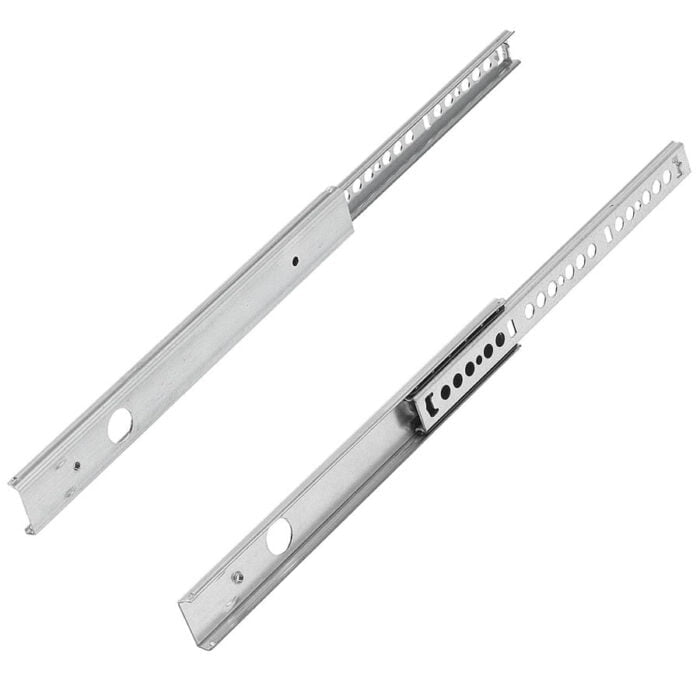

K1567 Kipp Telescopic slides, steel for slot mounting, partial extension, load capacity up to 12 kg

Material: Steel slides. Plastic ball cages. C-steel balls.
Version: Slides electro zinc-plated. Balls hardened. Load Capacity up to 12kg.
Note for ordering: Supplied in pairs

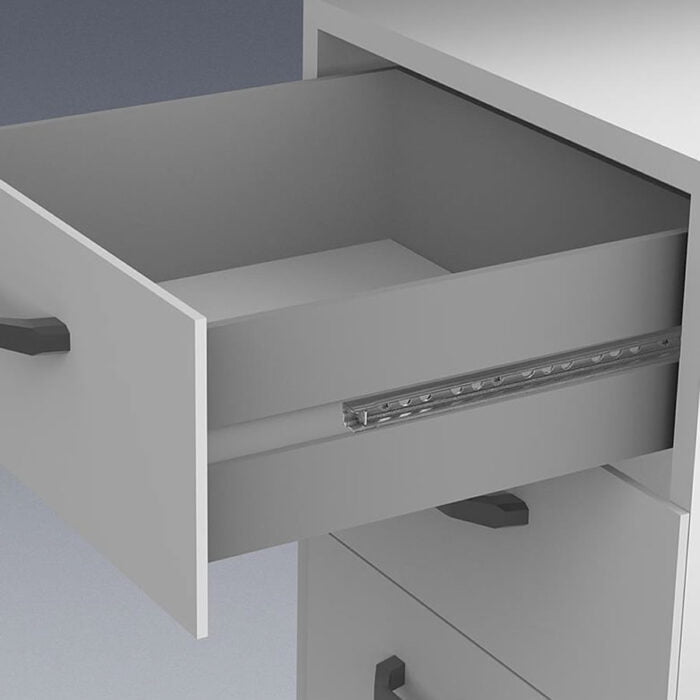

On telescopic slides with partial extension, the travel is less than the installed length. These are a low-cost solution for guiding drawers or similar items with little frictionand high lateral stability. Interlocking in closed position.

The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The specified load capacities refer to the maximum value for 20,000 cycles. The load capacity of all telescopic slides is tested to DIN EN 15338 Level 1

Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.

Download Datasheet K1567 Kipp Telescopic slides, steel for slot mounting, partial extension, load capacity up to 12 kg
