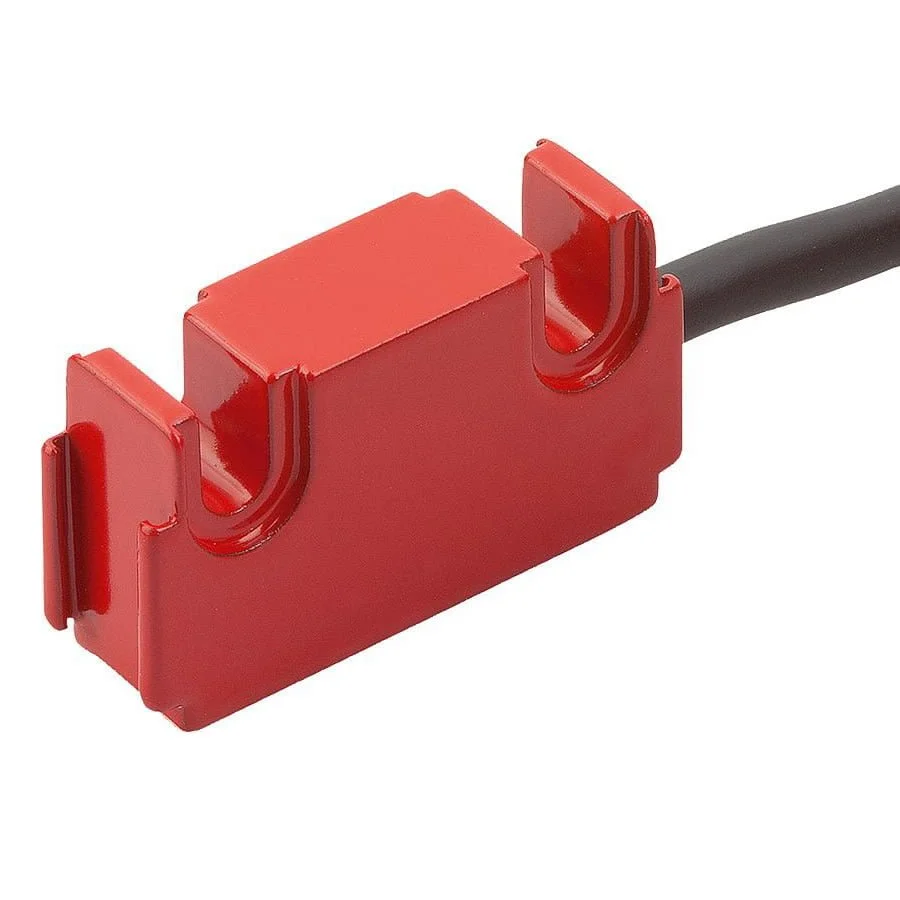

K1658 Kipp magnetic sensors, passive sensors, miniature design IO link interface

K1658 Kipp magnetic sensors, passive sensors, miniature design IO link interface. Works with magnetic tapes K1663. The reading distance between the sensor and tape must be 0.1 to 2 mm. The operating voltage and current for the sensor are supplied from the downstream electronics. System accuracy, repeat accuracy, and travel speed depend on the downstream electronics. Plug-in connection at position indicators K1657.

• Material: Housing aluminium. Cable sheath PUR.
• Version: Compact sensor and connector design. M8 connector, 6-pole, 1x pin (E15). Connection cable, mm 6-wire ø 5.2 mm. Bend radius >= 52 mm (dynamic).
• Temperature range:
  – Ambient temperature 0…60°C
  – Storage temperature -10…70°C

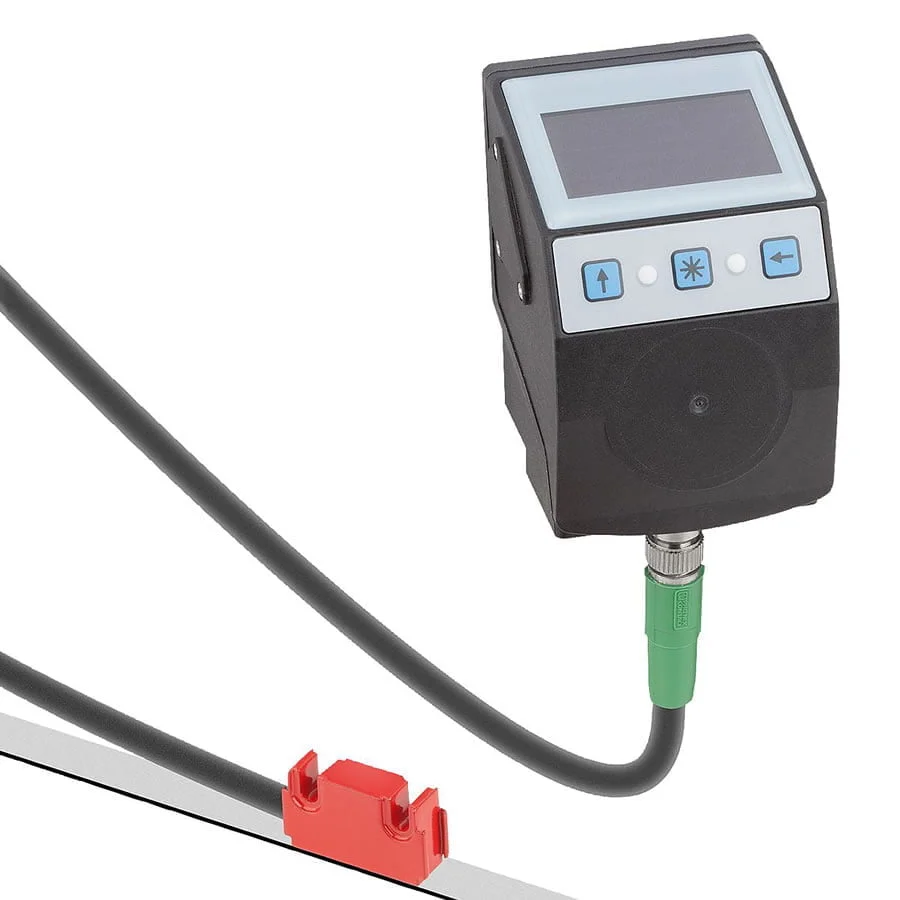

• Accessory: Position indicators K1657. Magnetic tapes K1663.

• RoHS compliant products: Products marked with this symbol are compliant with the Restriction of Hazardous Substances EU directive (RoHS)
