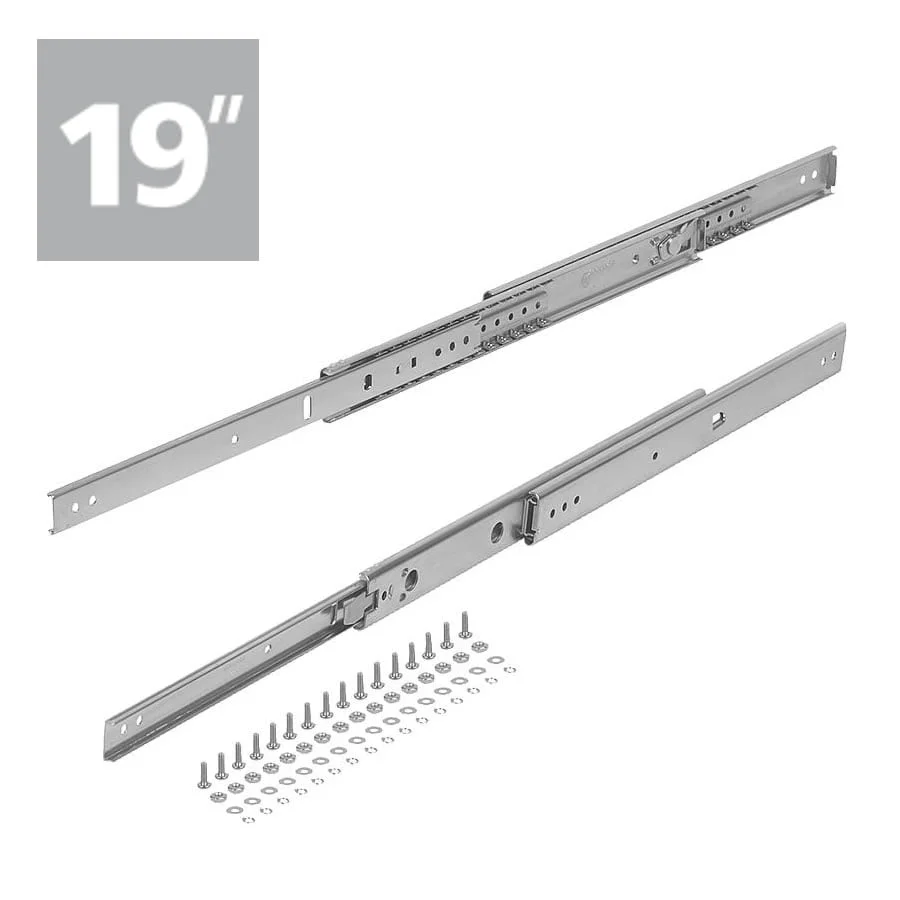

K1713 Kipp Telescopic slides, steel for side mounting, over-extension, load capacity up to 70 kg

Technical information for telescopic slides
Overview of items telescopic slides

On telescopic slides with over-extension, the travel is greater than the installed length. Latches in open position. When the release lever is actuated, the drawer can be taken out easily and separated from the guide. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacities specified refer to the maximum value for 10,000 cycles. The load capacity is ca. 75% lower by horizontal mounting.

The head height of the fastening screws should not exceed 2.5 mm otherwise there is a risk of collision with other parts of the slide.

  • Material: Slides steel. Ball cages steel. Balls, steel.
  • Version: Slides electro zinc-plated. Ball cages, electro zinc-plated. Balls hardened.
  • Note for ordering: Sold in pairs. Fastening material included.
  • Temperature range:-20°C to +110°C.
  • Advantages: Latches in open position. Quick frontal release.
  • 19″ technology: Products marked with this symbol are suitable for incorporation into standardised 19 inch systems. Whether it‘s handles, tracks or standard elements – they all go together optimally in the IT department, in racks for event technology, laboratories or computer centres.

RoHS compliant product
