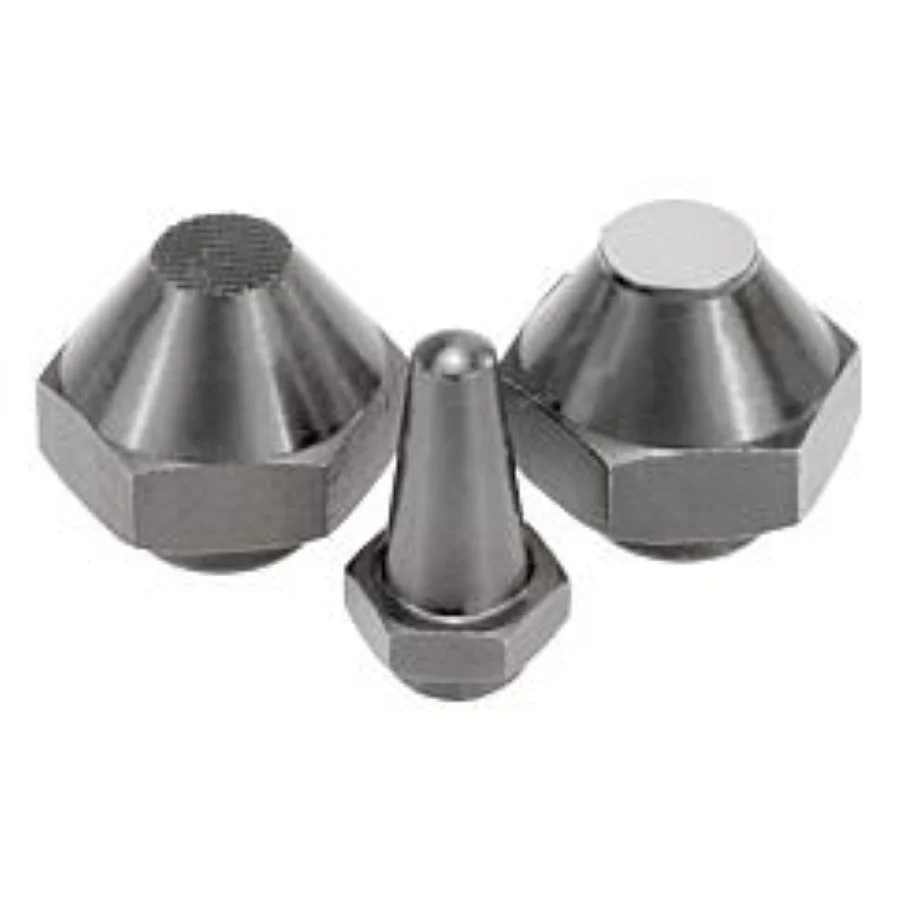

K0295 Kipp rest pads with positioning pin

Body high carbon steel.

Body tempered and black oxidised.
Contact faces case-hardened.

Rest pads are for supporting machined and unmachined parts. They can also be used as stops and thrust pads in fixtures and toolmaking. Studs or grub screws can be screwed and glued into the tapped hole D to make a support with external thread.

Drawing reference:
Form A: flat face
Form B: ball end
Form C: diamond grip

Special features:

Order No. K0295.106012 K0295.106025 K0295.110020 K0295.110040 K0295.116030 K0295.116060 K0295.206012 K0295.206025 K0295.210020 K0295.210040 K0295.216030 K0295.216060 K0295.310020 K0295.310040 K0295.316030 K0295.316060
