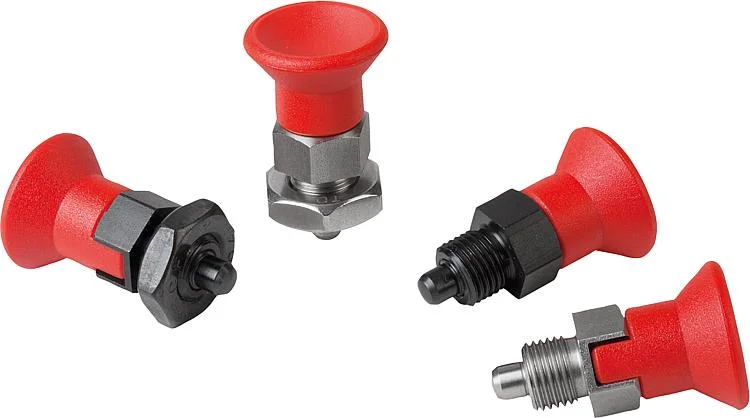

K0631 Kipp Red Handle Indexing plungers short version
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.
Indexing pin hardened, ground, black oxidised.
Stainless steel version:
Indexing pin not hardened, ground, bright.
Indexing plungers are used to prevent any change in position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications in which the pin is disengaged over extended periods and should be prevented from springing back.
