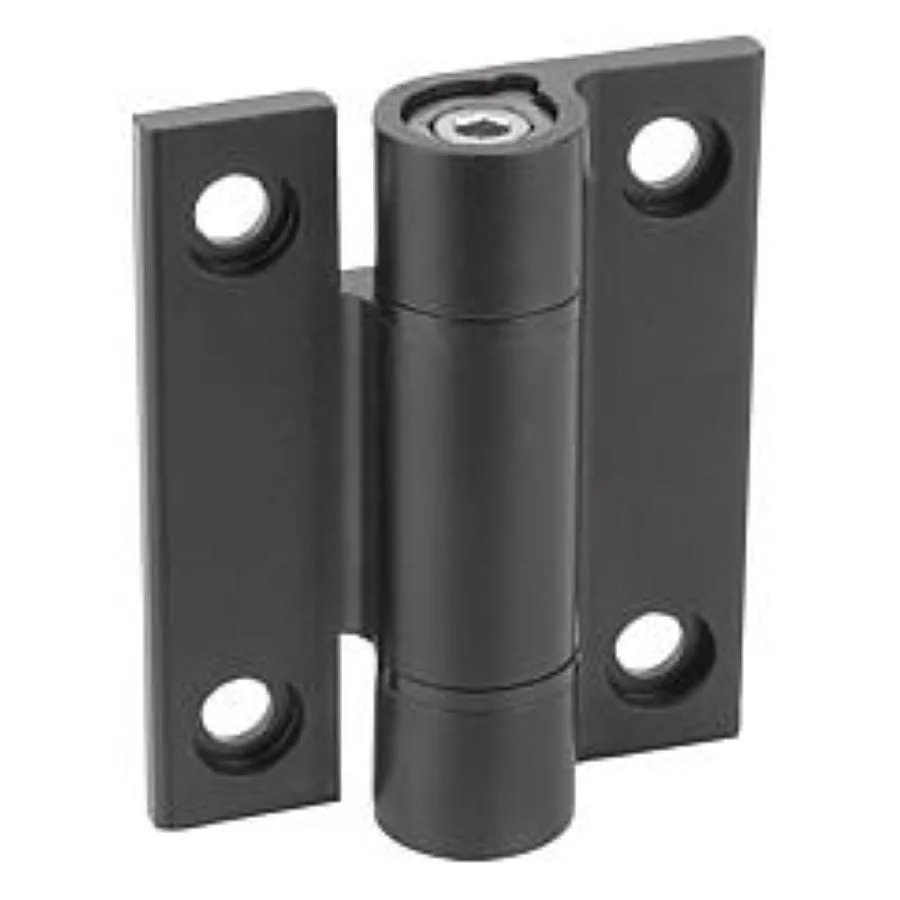

K1198 Kipp hinges aluminium, with detent
View product information as a PDF datasheet:
Product Specification Datasheet for K1198 Kipp hinges aluminium, with detent
Product Specification Datasheet for K1198 Kipp hinges aluminium, with detent
Material:
Aluminium 6060 T5.
Screws and nuts stainless steel.
Washers PA.
Version:
Black anodised
Note:
These hinges have a detent mechanism that indexes every 30° from 0° to 270° and holds doors or hatches open or tightly closed.
The detent torque is not adjustable.
The hinges have a more than 30000 cycle service life.
Torque tolerance ±20%
Fastened using DIN 912/EN ISO 4762 socket head screws.
Temperature range:
From -30°C to +70°C
Accessory:
Socket head screws with hexagon socket DIN 912/EN ISO 4762.
Special features:
Order No. K1198.556711 K1198.556712 K1198.556713 K1198.556715
Category: Hinges
