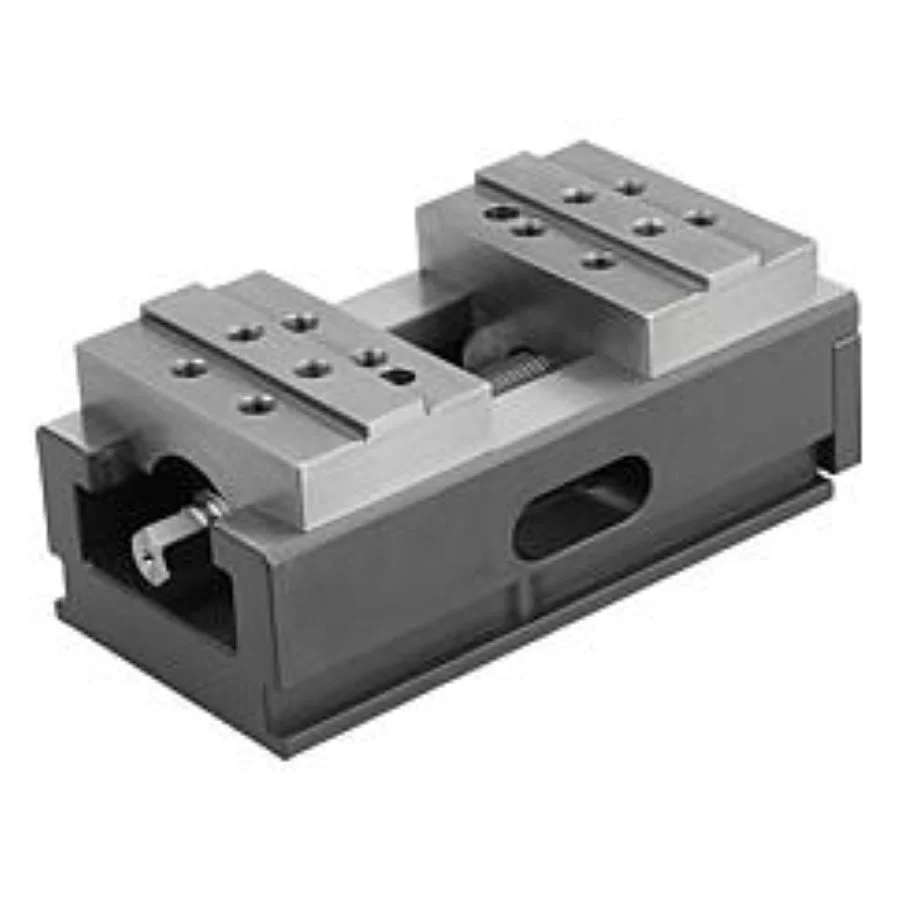

K1237 Kipp centric vices jaw width 80-125 mm
Product Specification Datasheet for K1237 Kipp centric vices jaw width 80-125 mm
Body and jaw holder mild steel.
Spindle high-strength special steel.
Body and jaw holder hardened and ground.
Note for ordering:
Supplied with hexagon crank handle.
Order jaw plates separately.
Mechanically operated centric vice.
Suitable for automation: prepared with gripper slot for handling systems.
Flexible mounting: suitable for zero-point systems, mounting on machine tables or on custom systems via a baseplate.
Centring precision: +/- 0.02 mm.
The use of a torque wrench is recommended to achieve a controlled clamping force.
– Clamping slide and spindle nut in one piece
– Slots and fastening threads for mounting attachment jaws
– Reversible jaws (accessories) with lateral thread for workpiece stop enables a wider clamping range
– Good swarf and coolant removal
Order No. K1237.080200 K1237.125315
K1169 Kipp machinable jaws rectangular

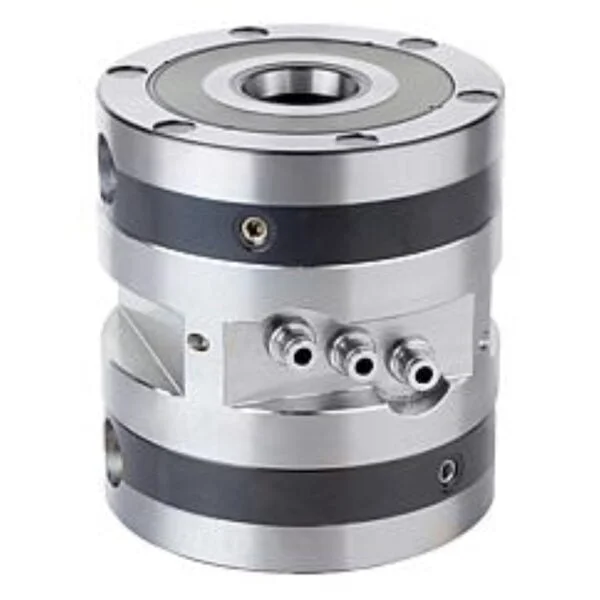

K1122 Kipp UNI lock double clamping module
