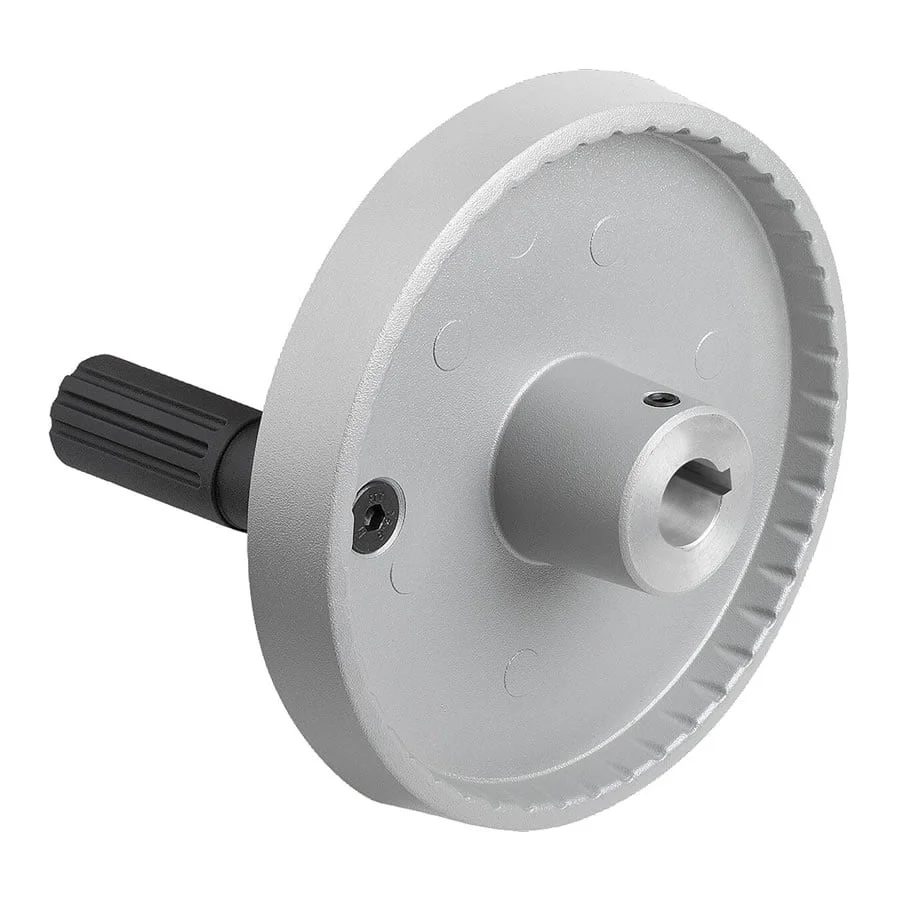

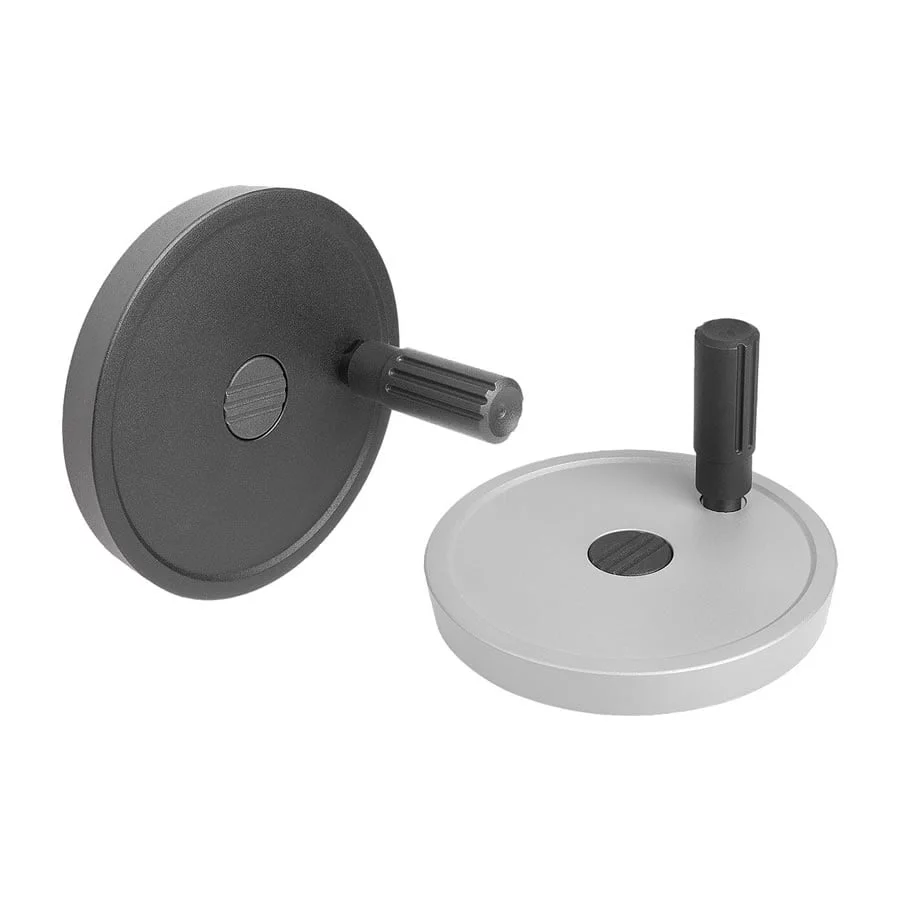

K1521_B Kipp Disc handwheels, aluminium with revolving cylindrical grip, Form B with reamed hole, keyway and transverse bore
View product information as a PDF datasheet:
Product Specification Datasheet for K1521_B Kipp Disc handwheels, aluminium with revolving cylindrical grip, Form B with reamed hole, keyway and transverse boreView CAD Files
Product Specification Datasheet for K1521_B Kipp Disc handwheels, aluminium with revolving cylindrical grip, Form B with reamed hole, keyway and transverse boreView CAD Files
K1521_A Kipp Disc handwheels, aluminium with revolving cylindrical grip, Form A with reamed hole and transverse bore, wheel rim radial and axial run-out ≤ 0.4 mm.
- Material: Handwheel aluminium. Cylinder grip and hub cover black thermoplastic. Cylinder grip pin black oxidised steel. ISO 4027 grub screw, steel grade 45 H, black.
- Version: Black or silver powder-coated.
- Assembly: The hub cover and the revolving cylinder grip are supplied unassembled. To assemble, screw the grip into the tapped hole. The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a handwheel washer K0173. By the versions with transverse bore, fixation is carried out using an ISO 4027 grub screw.

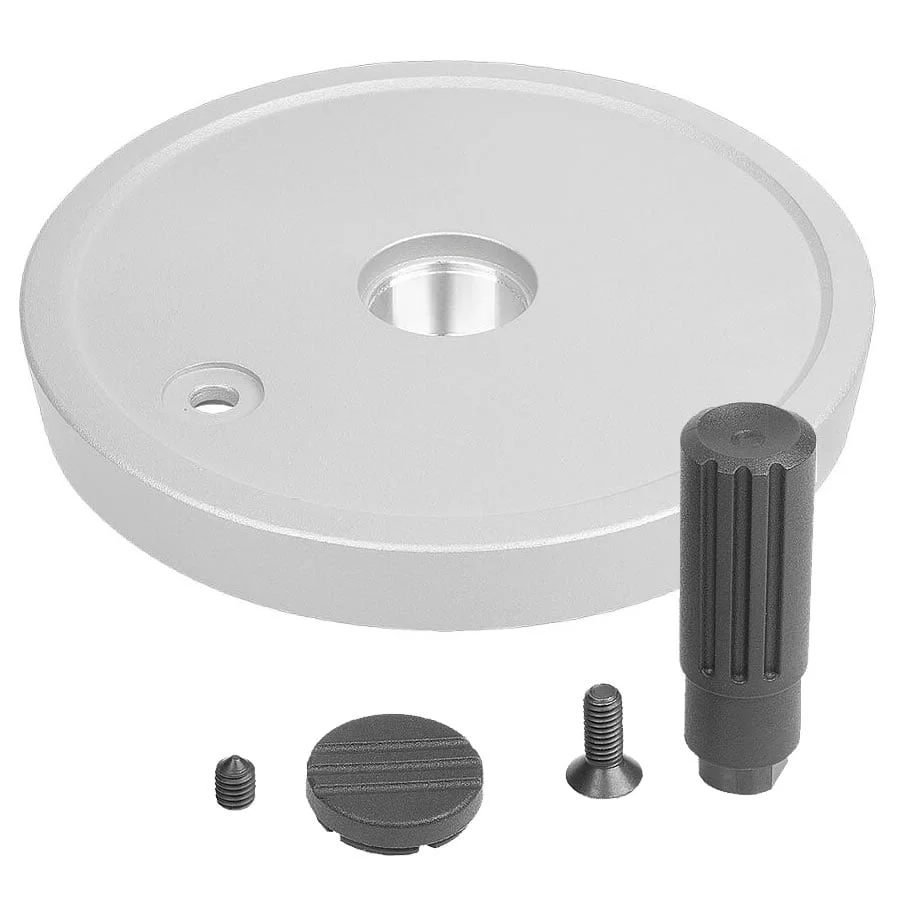

- Supplied with: Aluminium handwheel. Hub cover. ISO 4027 grub screw (type with transverse bore).
- Accessory: K0173 Handwheel washers. K1160 Socket head screws with low head DIN 6912.
Category: Handwheels
Tag: Kipp Handwheels
Order No:
