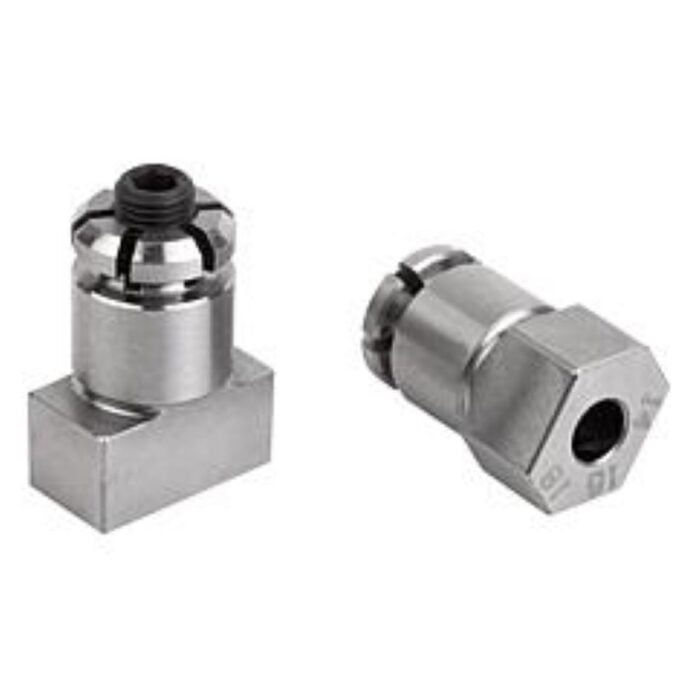

K0356 Kipp locating pins expanding
Product Specification Datasheet for K0356 Kipp locating pins expanding
Tempered and black oxidised.
Locating diameter and guide faces ground.

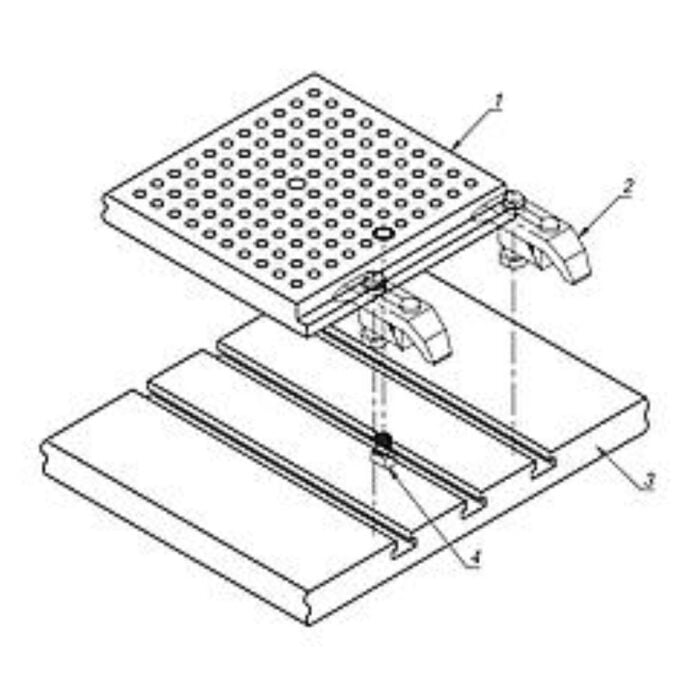

These expanding locating pins enable e.g. tooling plates to be positioned in the T-slots of machine tables (see illustration).
The plates to be positioned must have two holes matching the expanding pin diameter.
The expansion screw has a broached through hexagonal hole allowing the pin to be tightened or loosened from two sides.
1) tooling plate
2) clamp straps
3) machine table
4) expanding locating pin
Order No. K0356.1610 K0356.1612 K0356.1614 K0356.2024
