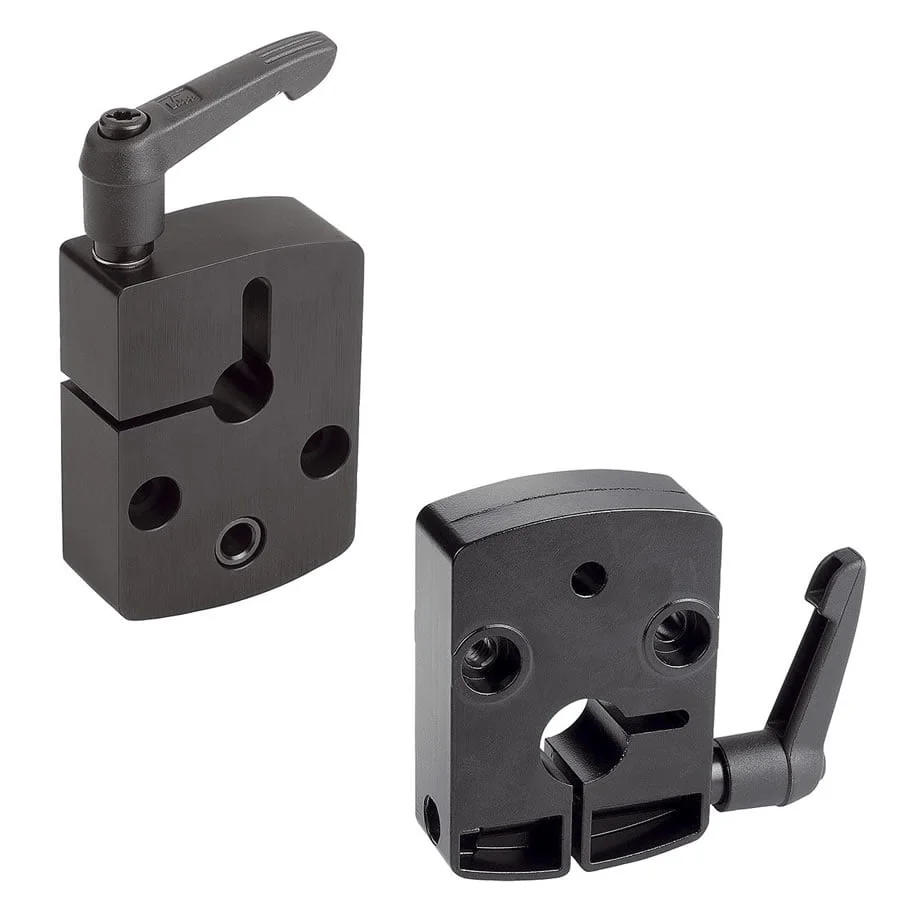

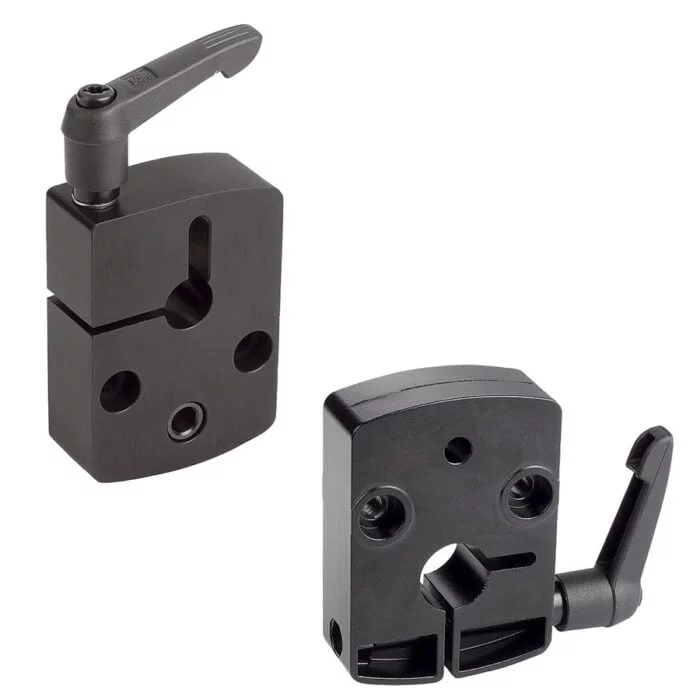

K0414 Kipp mounting brackets
Product Specification Datasheet for K0414 Kipp mounting brackets

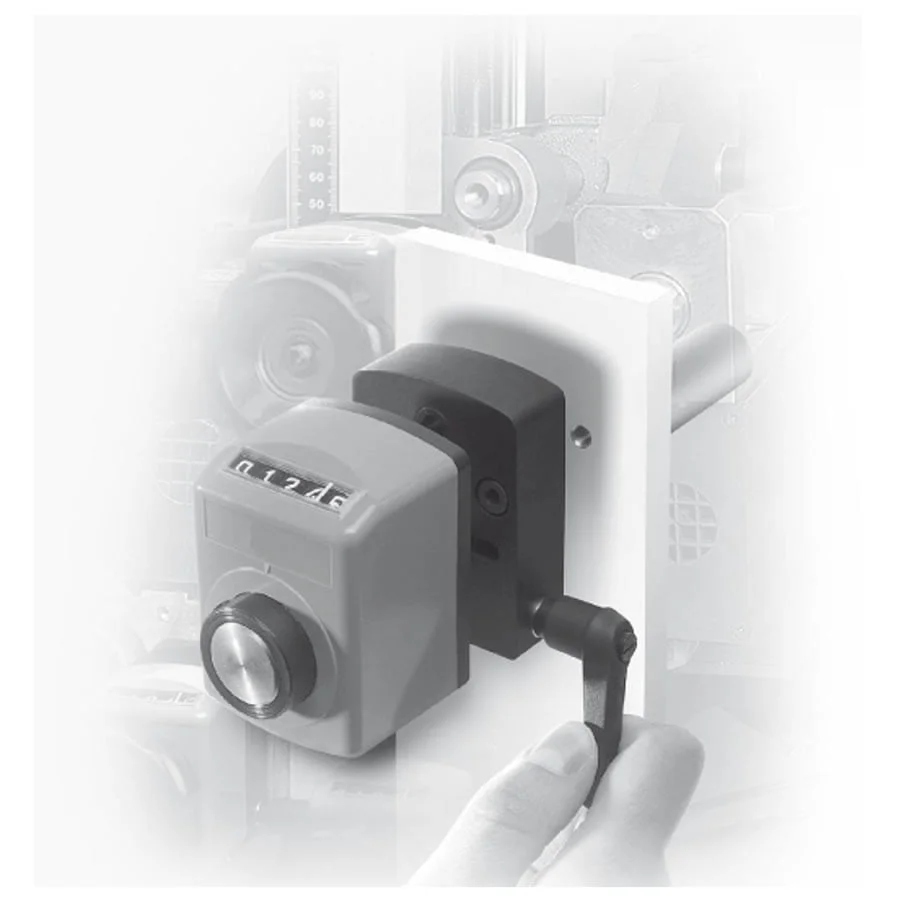

Mounting brackets form a compact unit with position indicators. They guarantee reliable spindle clamping without additional construction work.
Mounting position 1, housing die-cast zinc
Mounting position 3, housing aluminium.
Clamping lever plastic.
Installed position 1, housing, painted.
Installed position 3, housing anodised.
Clamping lever dark grey.
Note:Due to the simple assembly, the mounting bracket is also suitable for retrofitting to existing systems.
Order No. K0414.04081 K0414.04101 K0414.04121 K0414.04141 K0414.09121 K0414.09141 K0414.09161 K0414.09201 K0414.04083 K0414.04103 K0414.04123 K0414.04143 K0414.09123 K0414.09143 K0414.09163 K0414.09203
