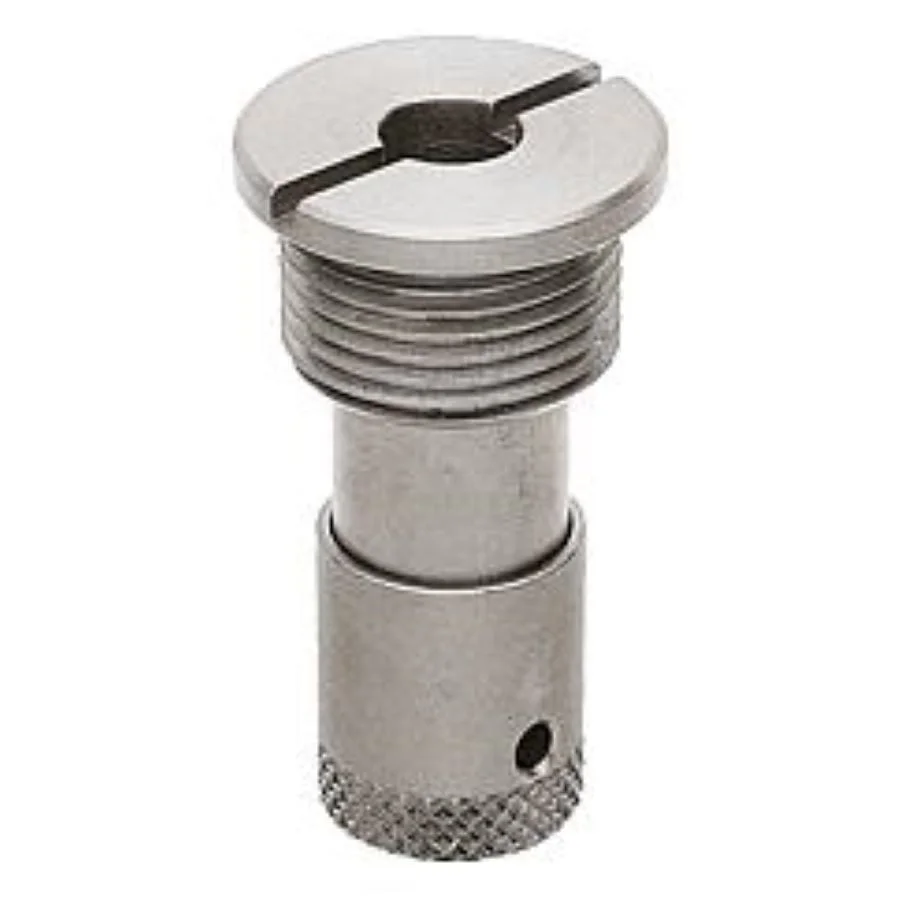

K1066 Kipp ball lock bushes with twist lock

Material:
Housing and locking elements steel.
Balls and springs stainless steel.

Version:
Housing and locking element nickel-plated.
Balls tempered.

Note:
The 3 balls inside the bush hold the locking pin with the specified retaining force.
The element is secured or released by twisting the bottom part of the bush.
Installation dimensions for Form A: min. plate thickness 6 mm.
Installation dimensions for Form B: max. plate thickness 10 mm.
Installation dimensions for Form C: plate thickness > 10 mm.
Installation dimensions for Form D: blind hole.

On request:
Suitable nuts.

Accessory:
Locking pin K1067.

Special features:

Order No.  K1066.71 K1066.151
