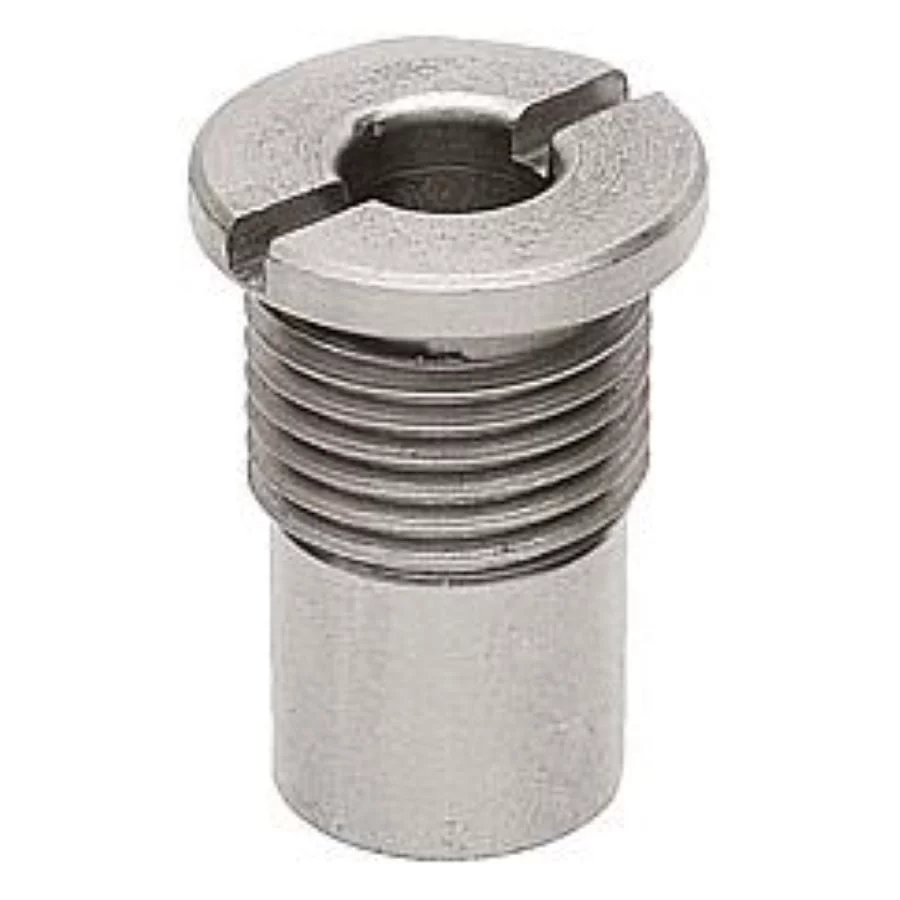

K1066 Kipp ball lock bushes

Material:
Housing steel.
Balls and springs stainless steel.

Version:
Housing nickel-plated.
Balls tempered.

Note:
The 3 balls inside the bush hold the locking pin with the specified retaining force.
Installation dimensions for Form A: min. plate thickness 6 mm.
Installation dimensions for Form B: max. plate thickness 10 mm.
Installation dimensions for Form C: plate thickness > 10 mm.
Installation dimensions for Form D: blind hole.

On request:
Suitable nuts.

Accessory:
Locking pin K1067.

Special features:

Order No. K1066.7 K1066.15
