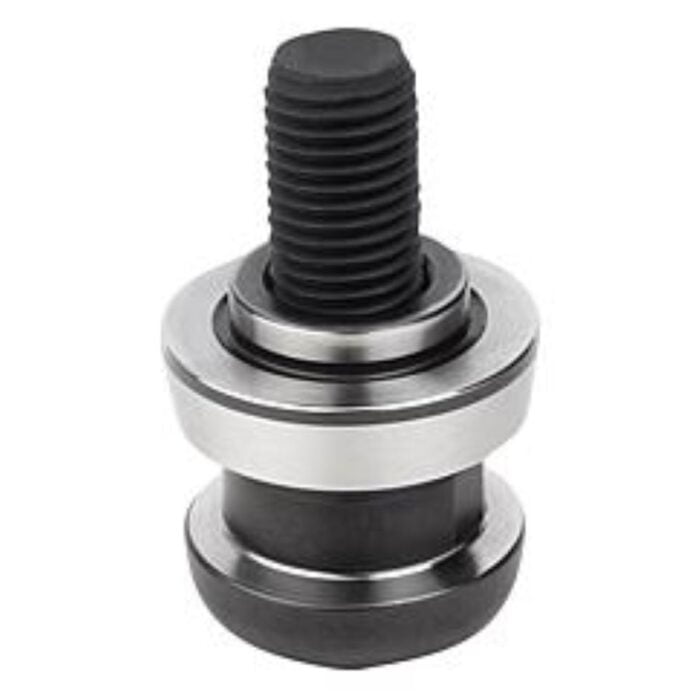

K1471 Kipp UNI lock clamping pin with through hole, system size 80 mm

Material:
Steel.

Version:
Hardened and black oxidised.
Contact faces ground.
Swivel fastening screw M16x65, tempered and black oxidised.

Note:
The UNI lock clamping pint is suitable for clamping and positioning workpieces and fixtures. Clamping pins are screwed onto the exchange element and adapted to the various basic modules.

Drawing reference:
1) Swivel fastening screw M16x65.

Special features:

Order No. K1471.140250516 K1471.240250516 K1471.340250516
