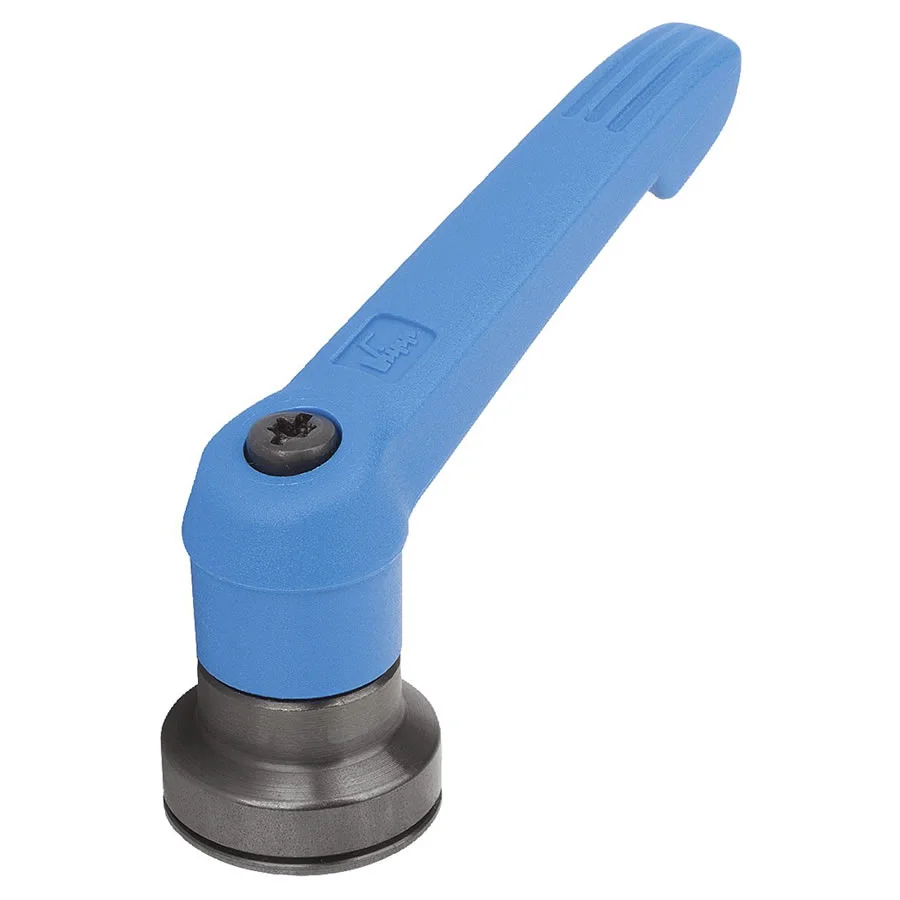

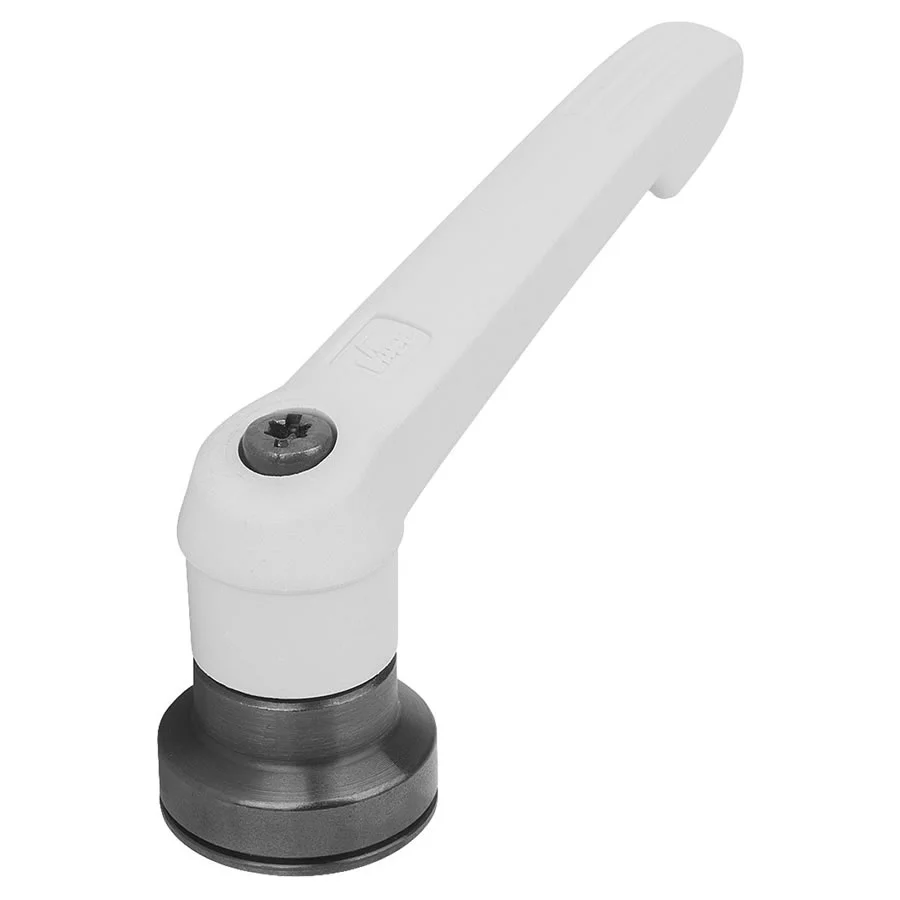

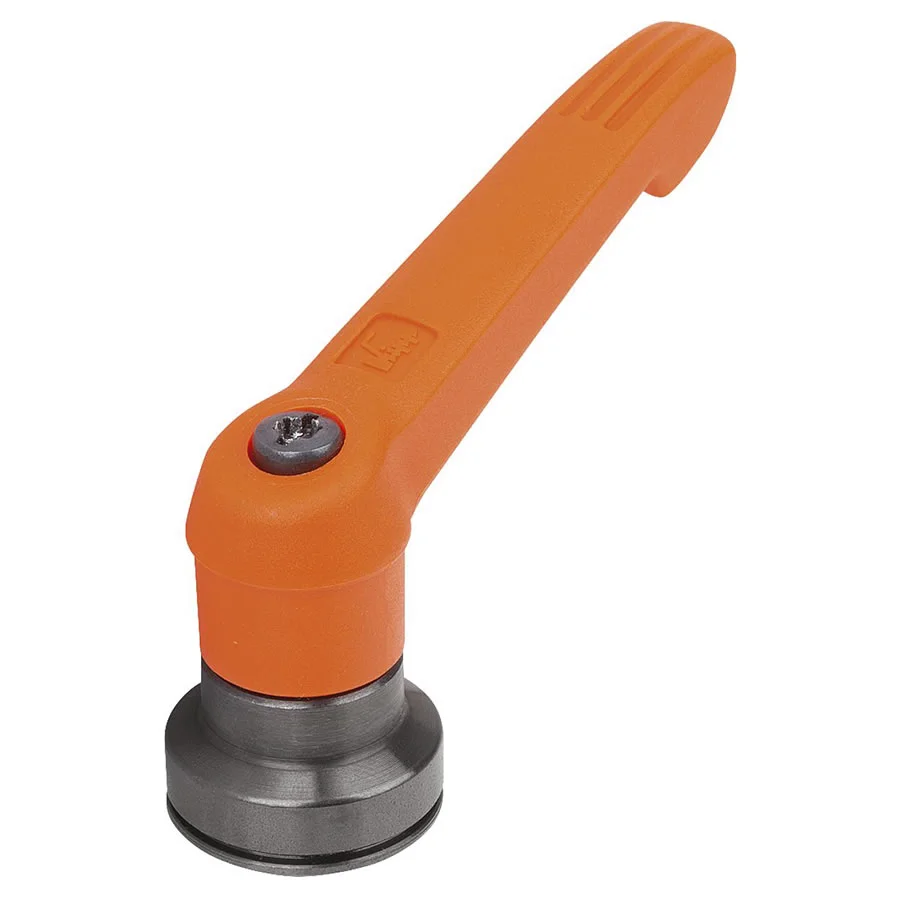

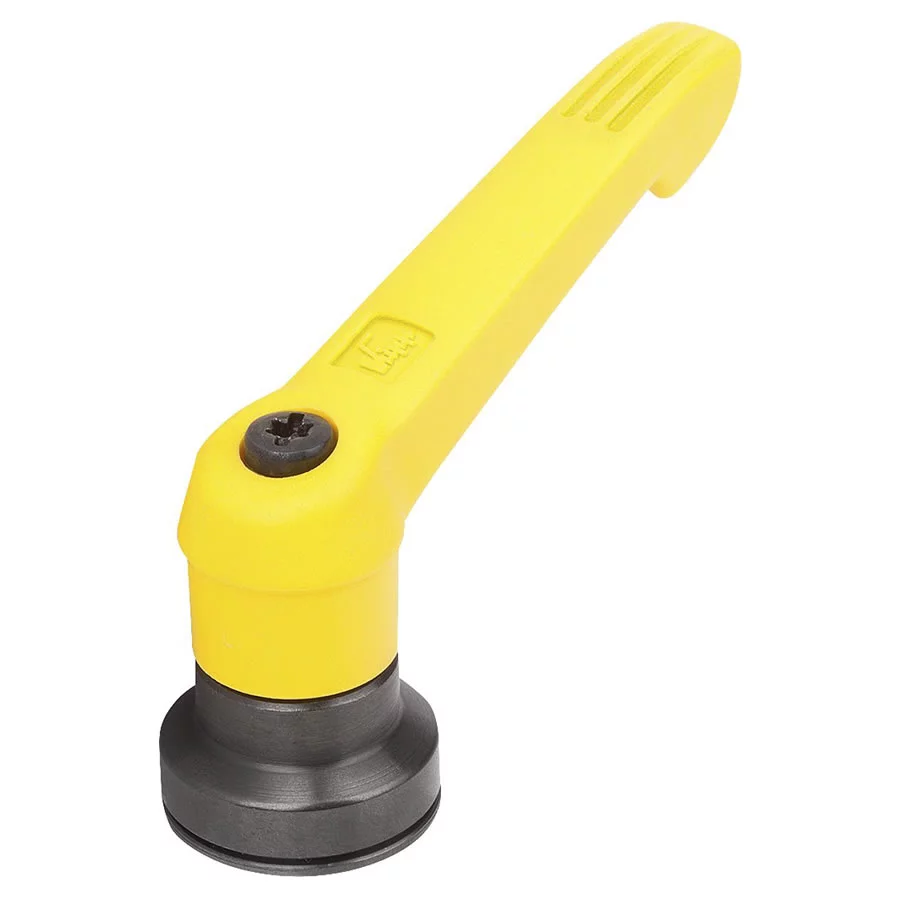

K1597 Kipp Plastic clamping lever with female thread and clamping force intensifier
Product Specification Datasheet for K1597 Kipp Plastic clamping lever with female thread and clamping force intensifierView CAD Files
K1597 Kipp Plastic clamping lever with female thread and clamping force intensifier. By using clamping levers with integrated clamping force intensifier, the clamping force can be increased by up to 75% compared to standard clamping levers. Furthermore, this product can also be used by persons with limited hand strength (e.g. in rehabilitation) to achieve comparable clamping forces with less effort. Less effort is also needed to loosen the clamping lever.
The increase in clamping force is achieved by the integral needle roller thrust bearing, which generates very low surface friction on a rigid contact surface during
clamping. The hardened thrust washers are designed for high clamping forces and the bearing with its high load rating guarantees a long service life. The clamped component is permanently protected by the large, stationary contact surface. A washer is no longer required.
- Material: Handle fibreglass reinforced plastic with die-cast zinc toothed ring. Steel parts grade 5.8.
- Version: Steel parts black oxidised. Axial needle bearing with hardened and ground thrust washer.
- Type of operation: The handle lever is engaged in the toothed insert by means of a toothed ring when not actuated, enabling the thread to be tightened or loosened. By lifting the handle, it can be repositioned and re-engaged in the toothed ring by spring force.
- Application: Machine, equipment and plant construction, rehabilitation sector.
- Advantages: Significant increase of the clamping force with the same tightening torque. High quality axial needle bearing with high load rating and long service life. The component surface is protected by the stationary lower ring.
- On request: Other colours.

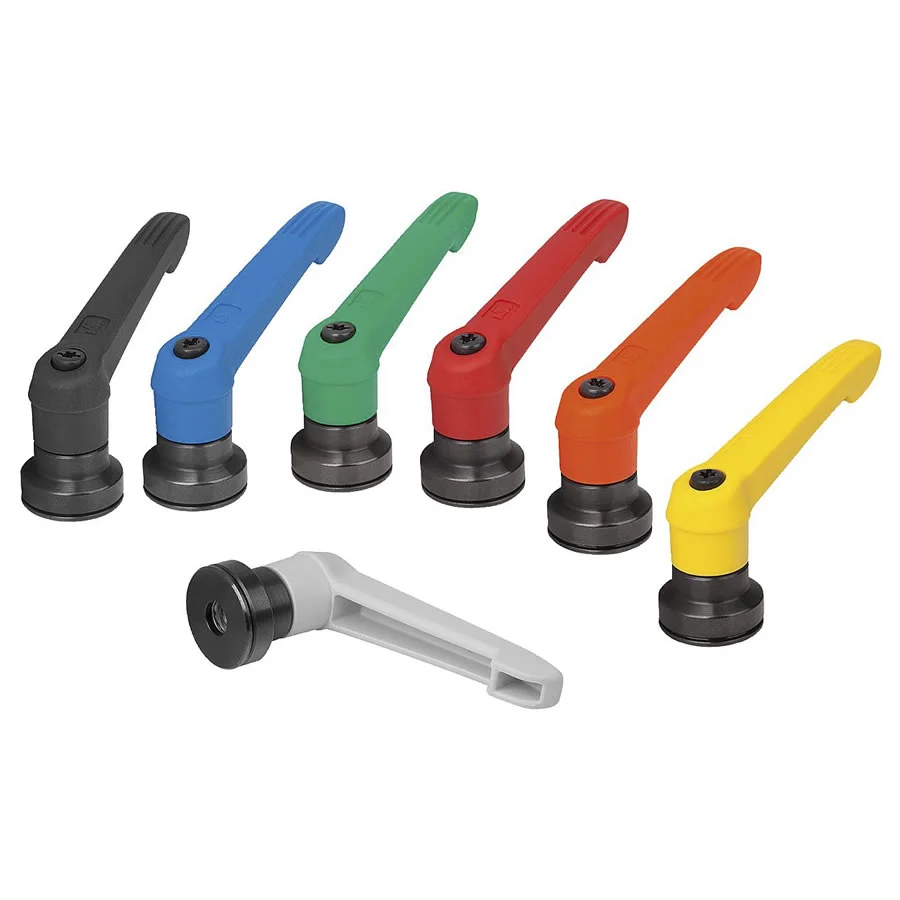

- NOVOgrip product. Our NOVOgrip product line is the classic in the plastics sector – well thought out in every detail. Sophisticated design, easy-grip shape and good value for money. All the plastic elements are available in several colour combinations and the most varied sizes.
Order No:K1597.2081 K1597.3101 K1597.4101 K1597.5121 K1597.2082 K1597.3102 K1597.4102 K1597.5122 K1597.20816 K1597.31016 K1597.41016 K1597.51216 K1597.20886 K1597.31086 K1597.41086 K1597.51286 K1597.20887 K1597.31087 K1597.41087 K1597.51287 K1597.20884 K1597.31084 K1597.41084 K1597.51284 K1597.20888 K1597.31088 K1597.41088 K1597.51288
