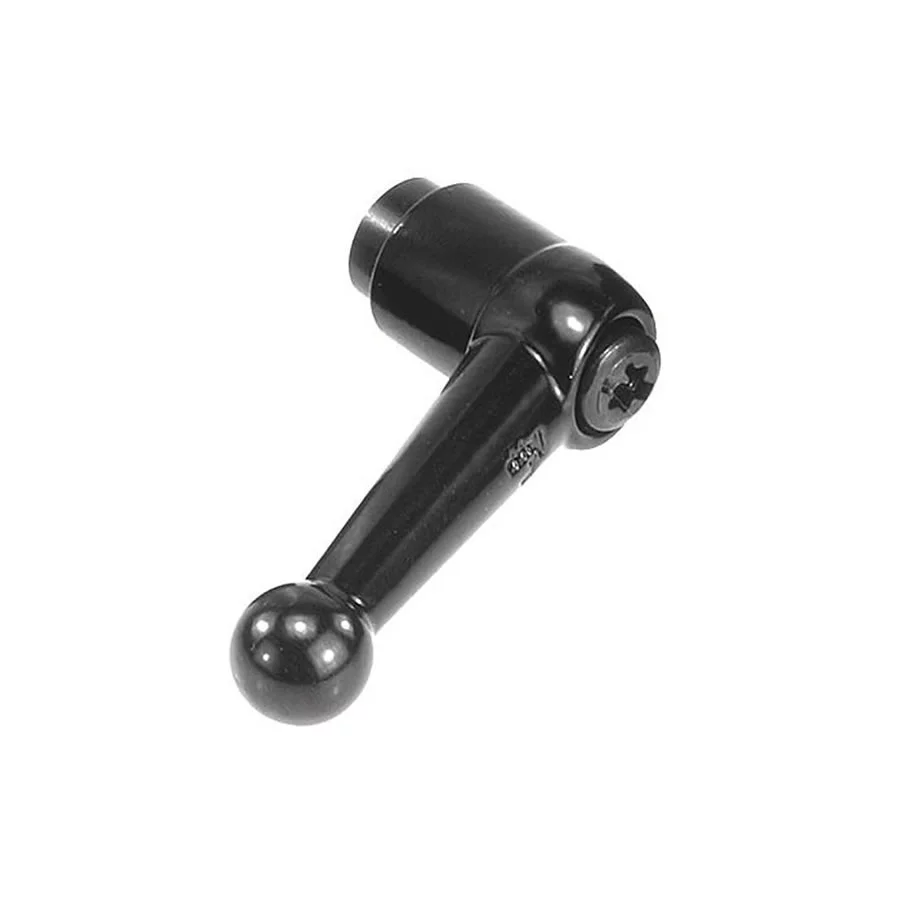

K0116 Kipp Clamping levers internal thread
Material: Handle die-cast zinc DIN EN 12844. Steel parts grade 5.8.
Version: Handle powder-coated. Steel parts black oxidised.
Note: Standard colours are: black satin finish, silver metallic.
On request: Other threads, colours and special versions. Dimension “H1” available in other lengths at extra charge.
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.
