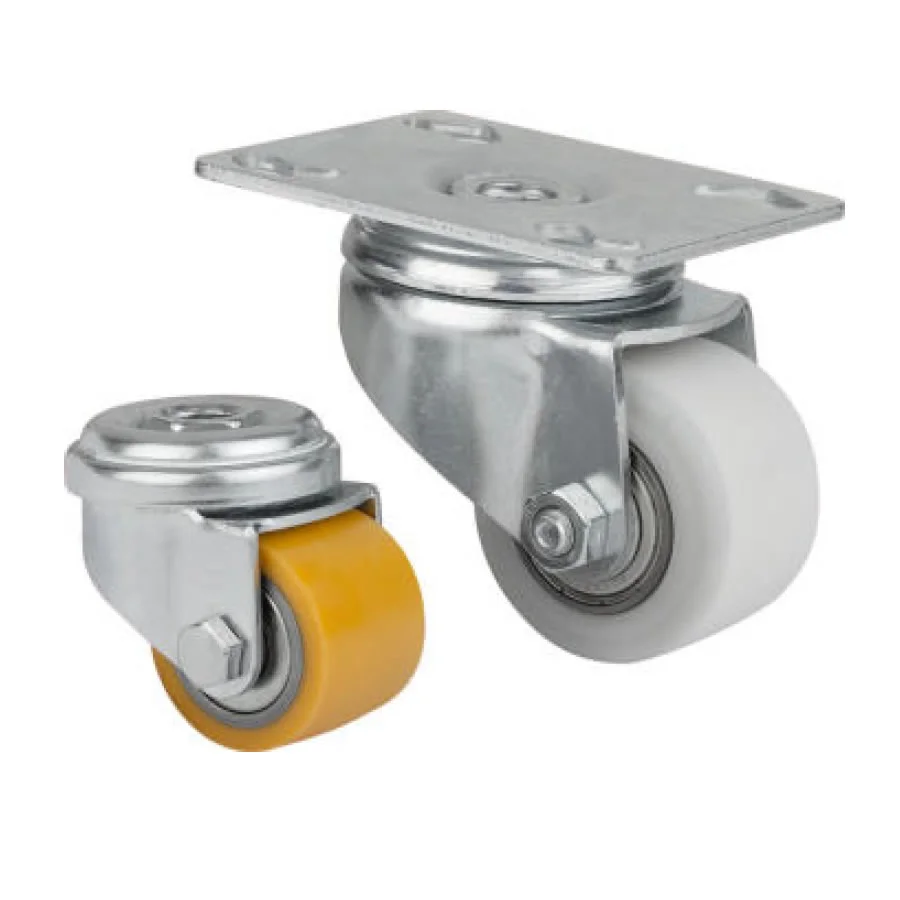

K1774 Kipp Swivel castors compact version
View product information as a PDF datasheet:
Product Specification Datasheet for K1774 Kipp Swivel castors compact versionView CAD Files
Product Specification Datasheet for K1774 Kipp Swivel castors compact versionView CAD Files
Polyurethane roller: low-noise, low rolling resistance, elastic, floor-protecting, very wear resistant , non-staining.
Polyamide roller: very low roll and pivot resistance, smooth running on smooth floors, very wear resistant.
- Housing: steel plate, trivalent blue passivated.
- Roller light brown polyurethane, Shore 92 A or white polyamide, Shore 80 D.
- Housing: press formed.
- Wheel axle bolted.
- Swivel castor housing with 2x ball bearing in the swivel head and ball shield.
- Roller with two pressed-in ball bearings.
- Permissible load: 100 – 150 kg.
Order No: K1774.0352701 K1774.0352802 K1774.0503301 K1774.0503202 K1774.0352711 K1774.0352812 K1774.0503311 K1774.0503212
Categories: Castors, wheels, rollers, Kipp Castors, wheels, rollers
Tags: castor, kipp
