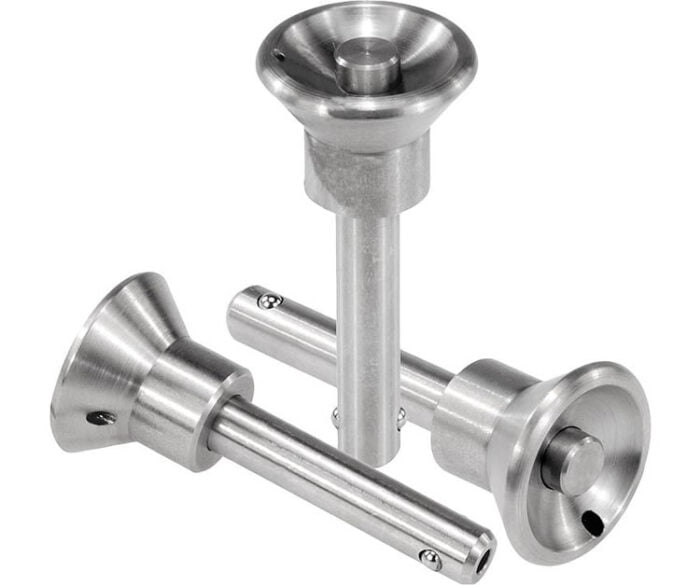

K0364 Kipp Ball lock pins self-locking stainless steel
Material: Metal parts stainless steel.
Note: Ball lock pins are used for quick and easy fastening and joining of parts and workpieces.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces.
Release the button to lock the balls and secure the connection.
Option for connecting retaining cable.
Application temperature max. +250 °C.
Shear force double-shear (F) = S · τ aB max.
Accessory: Bushes for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.
