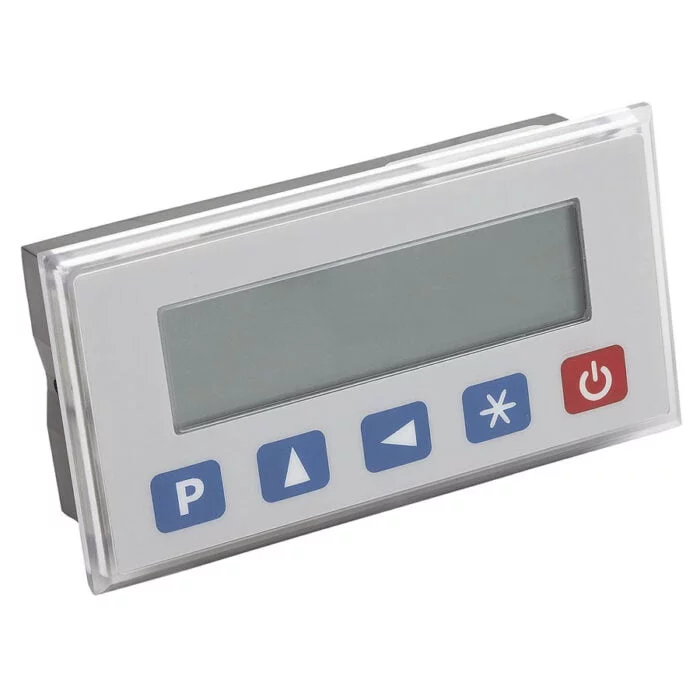

K1906 Kipp Position indicator quasi-absolute, mains-independent, indicator accuracy 10 µm

Digital, mains-independent measurement display for play-free position detection. The system is often used in industry and trade for measuring tasks on length and angle stops (on panel saws, sheet punches, press breaks…).

The recommended dimensions for switchboard installation are 92+0.8 x 45+0.6. The angle display is programmable. The display is ~13 mm high and scaleable from -1999999 to 1999999. The max. display accuracy is 10 μm decimal to 1/64 inch. The position indicator features a battery-backed memory and a battery monitoring system with a Low-Batt symbol at <1.1 V. The battery is easy to change via the battery compartment. Energy is supplied via 2 mignon AA batteries (not supplied).

  • Material: Housing plastic. Screen LCD display.
  • Version: Position indicators with integrated battery compartment. Plug-in sensor. Low-power LCD with decimal and fraction inch function.
  • Temperature range: – Ambient temperature 0–60°C. – Storage temperature -10–70°C.
  • Function: Chain dimension and reset function. Direct entry of reference/offset value.

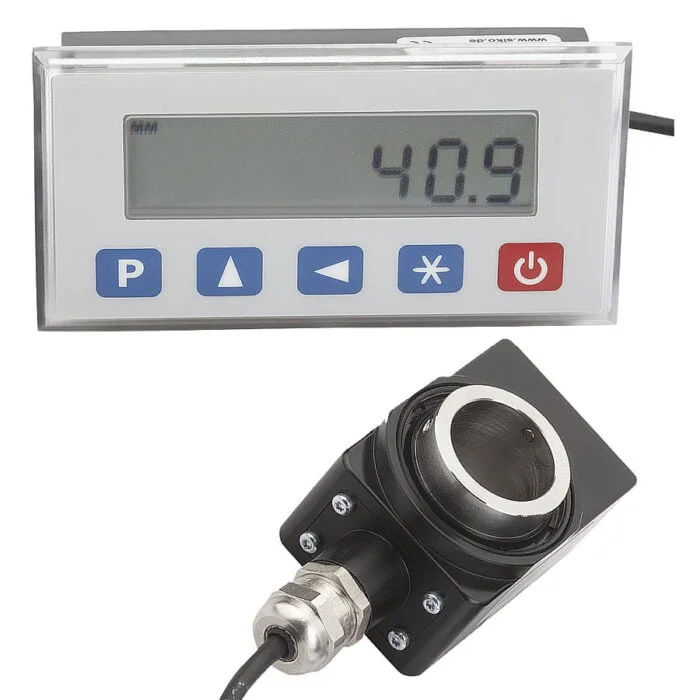

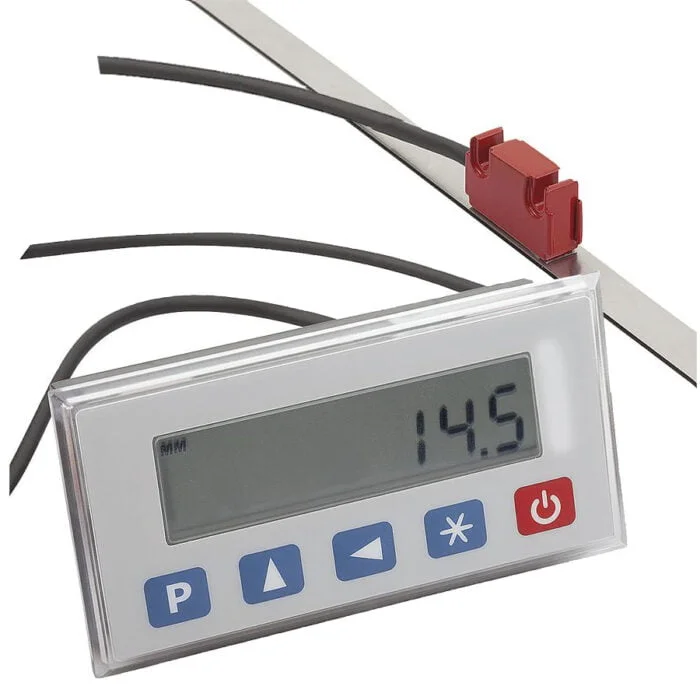

  • Accessory: Magnetic sensors K1959,  Magnetic tapes K1633,  Hollow shaft sensors K1926.
RoHS compliant product
