K0257 Kipp Handwheels with revolving grip
View product information as a PDF datasheet:
Product Specification Datasheet for K0257 Kipp Handwheels with revolving gripView CAD Files
Product Specification Datasheet for K0257 Kipp Handwheels with revolving gripView CAD Files

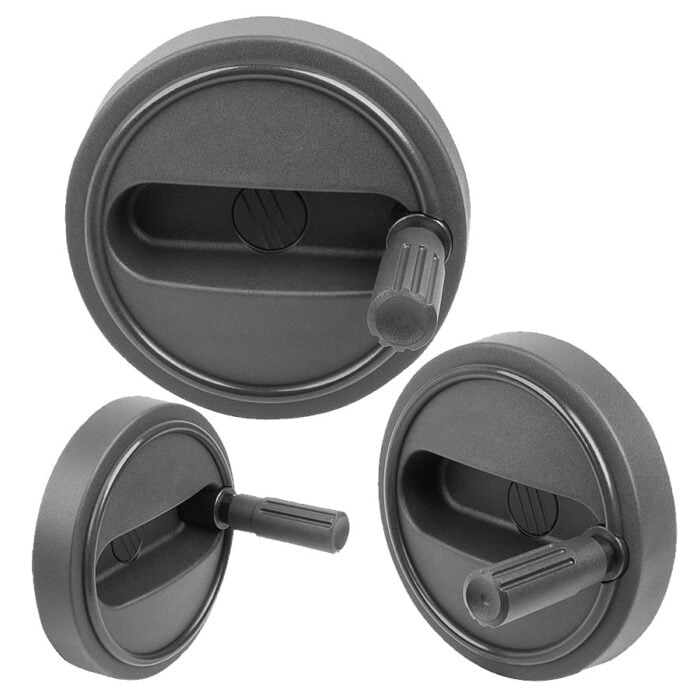

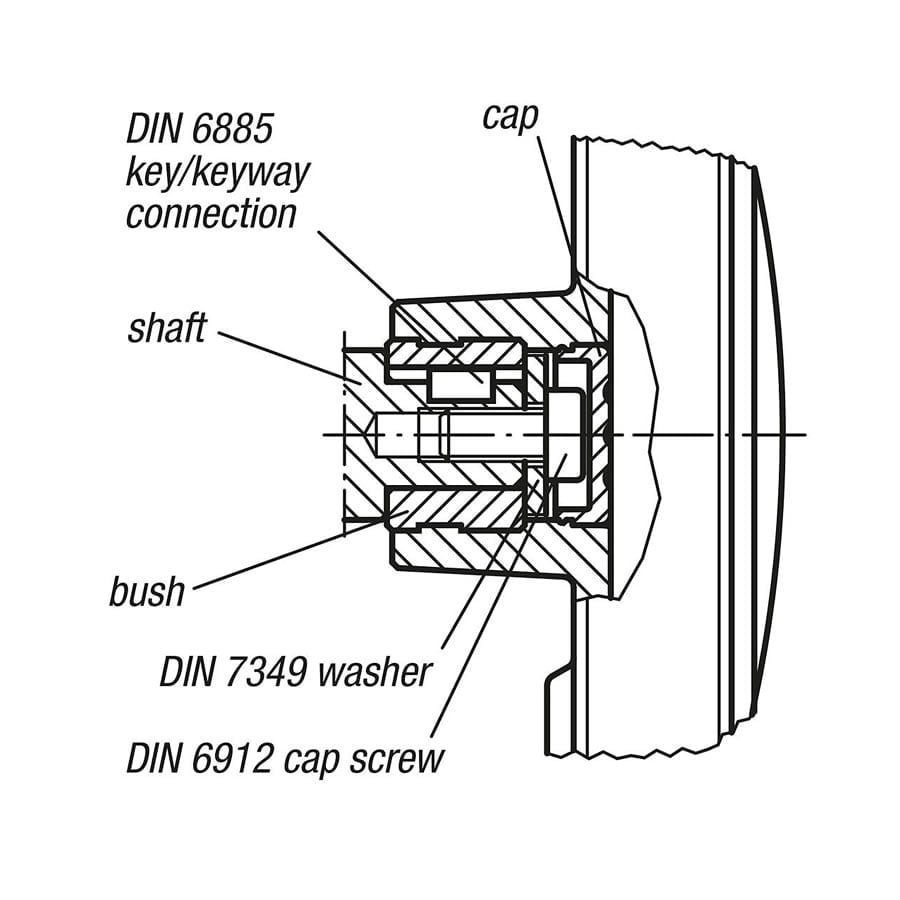

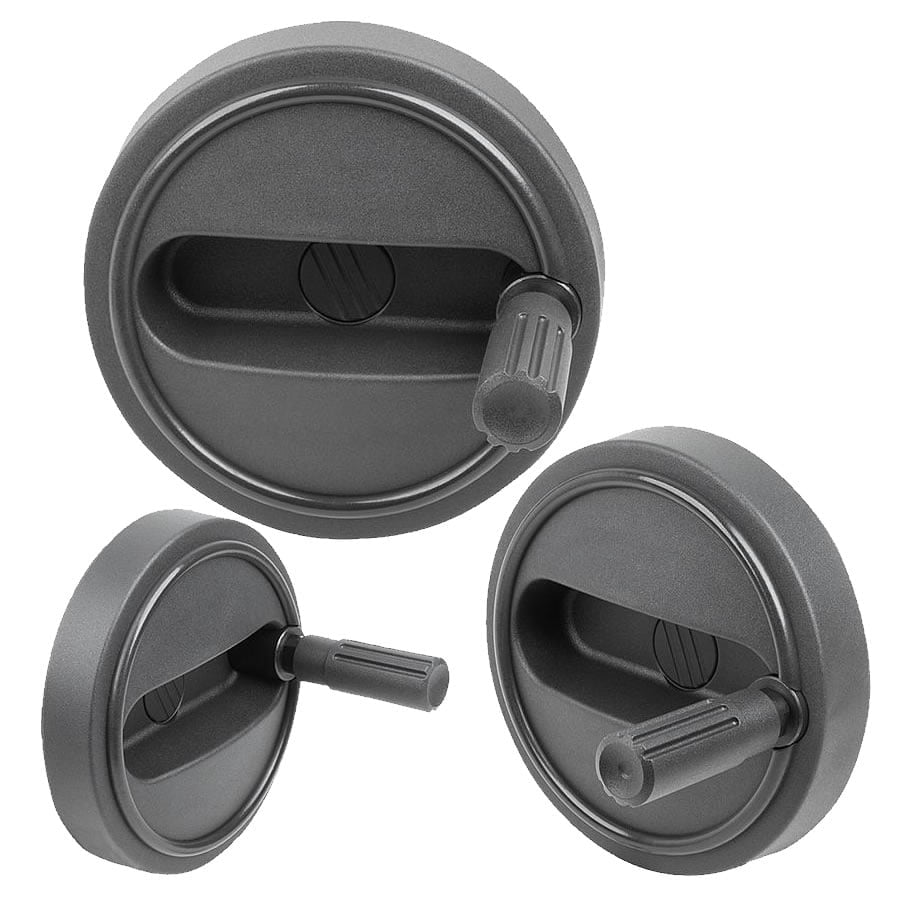

K0257 Kipp plastic handwheels with revolving grip. The hub cover and the revolving cylinder grip are supplied unassembled. To assemble, screw the grip into the tapped hole. The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a DIN 7349 washer. Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
- Material: Black grey thermoplastic.
- Version: Steel parts black oxidised.
- NOVOgrip product line: Our NOVOgrip product line is the classic in the plastics sector – well thought out in every detail. Sophisticated design, easy-grip shape and good value for money. All the plastic elements are available in several colour combinations and the most varied sizes.
Category: Handwheels
Tag: Kipp Handwheels
Order No:
K0257.108008 K0257.108010 K0257.108012 K0257.210010 K0257.210012 K0257.312512 K0257.312514 K0257.312516 K0257.416014 K0257.416016 K0257.10800802 K0257.10801003 K0257.10801204 K0257.21001003 K0257.21001204 K0257.31251204 K0257.31251405 K0257.31251605 K0257.41601405 K0257.41601605 K0257.2100126 K0257.3125126 K0257.3125146 K0257.3125166 K0257.4160146 K0257.4160166 K0257.1080086 K0257.1080106 K0257.1080126 K0257.2100106 K0257.108008026 K0257.108010036 K0257.108012046 K0257.210010036 K0257.210012046 K0257.312512046 K0257.312514056 K0257.312516056 K0257.416014056 K0257.416016056
