K0266 Kipp crank handles with fold-down grip
View product information as a PDF datasheet:
Product Specification Datasheet for K0266 Kipp crank handles with fold-down gripView CAD Files
Product Specification Datasheet for K0266 Kipp crank handles with fold-down gripView CAD Files

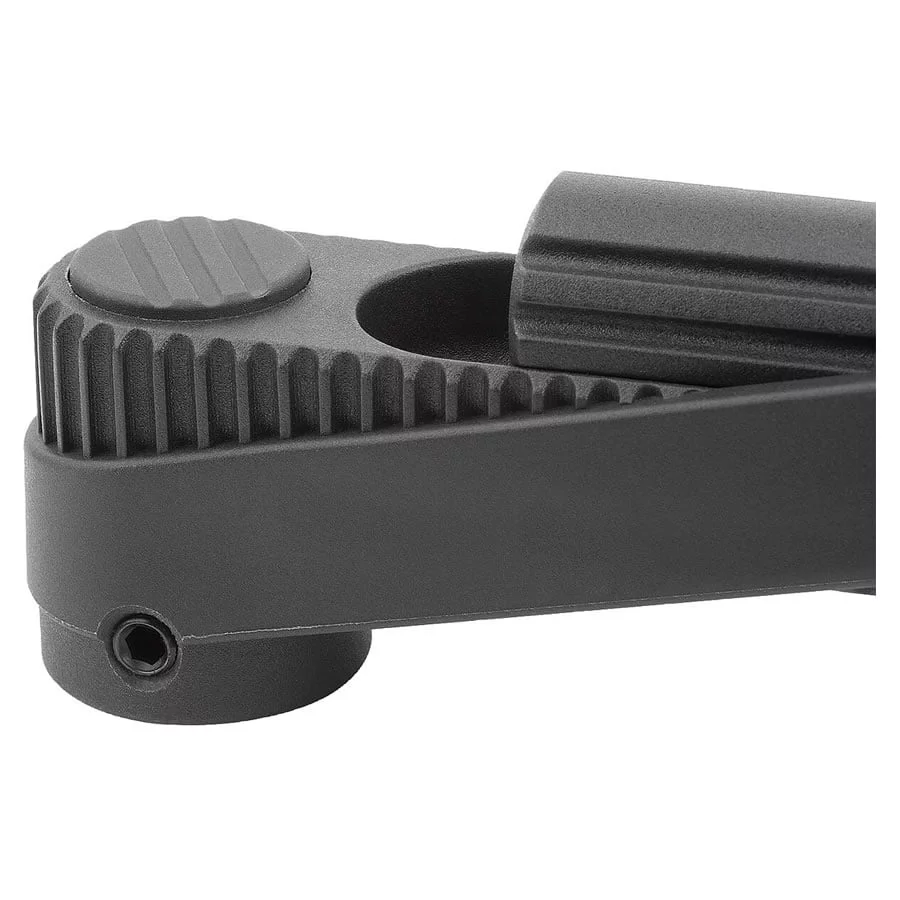

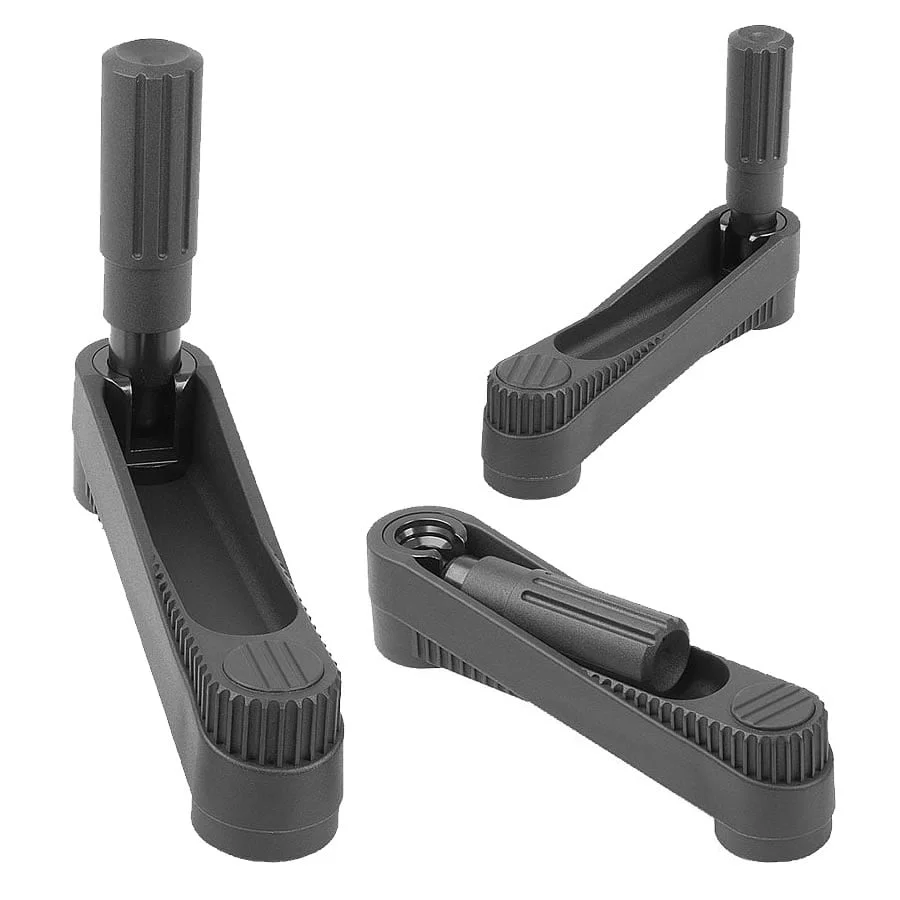

K0266 Kipp crank handles with fold-down grip. The hub cover is supplied unassembled. The crank handles can be secured to the shaft by cross-pinning or by parallel key together with a DIN 6912 socket head screw and DIN 7349 washer. Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
Available in 3 forms:
- Form PBON – without keyway
- Form PBMN – with keyway
- Form IV – with square socket
Description:
- Material: Crank thermoplastic. Cylinder grip thermoplastic and steel.
- Version: Black grey thermoplastic. Steel parts black oxidised.
- Accessory: K1160 cap screws screws, low head DIN 6912.
- NOVOgrip product line: Our NOVOgrip product line is the classic in the plastics sector – well thought out in every detail. Sophisticated design, easy-grip shape and good value for money. All the plastic elements are available in several colour combinations and the most varied sizes.
Category: Crank handles
Tag: Kipp Crank Handles
Order No:
K0266.1108 K0266.1110 K0266.1210 K0266.1212 K0266.1312 K0266.1314 K0266.11086 K0266.11106 K0266.12106 K0266.12126 K0266.13126 K0266.13146 K0266.110802 K0266.111003 K0266.121003 K0266.121204 K0266.131204 K0266.131405 K0266.1108026 K0266.1110036 K0266.1210036 K0266.1212046 K0266.1312046 K0266.1314056 K0266.2108 K0266.2110 K0266.2210 K0266.2212 K0266.2312 K0266.2314 K0266.21086 K0266.21106 K0266.22106 K0266.22126 K0266.23126 K0266.23146
