K0286 Kipp self-aligning pads self-righting
View product information as a PDF datasheet:
Product Specification Datasheet for K0286 Kipp self-aligning pads self-righting
Product Specification Datasheet for K0286 Kipp self-aligning pads self-righting
Material:
Carbon steel.
Version:
Hardened, black oxidised.
Note:

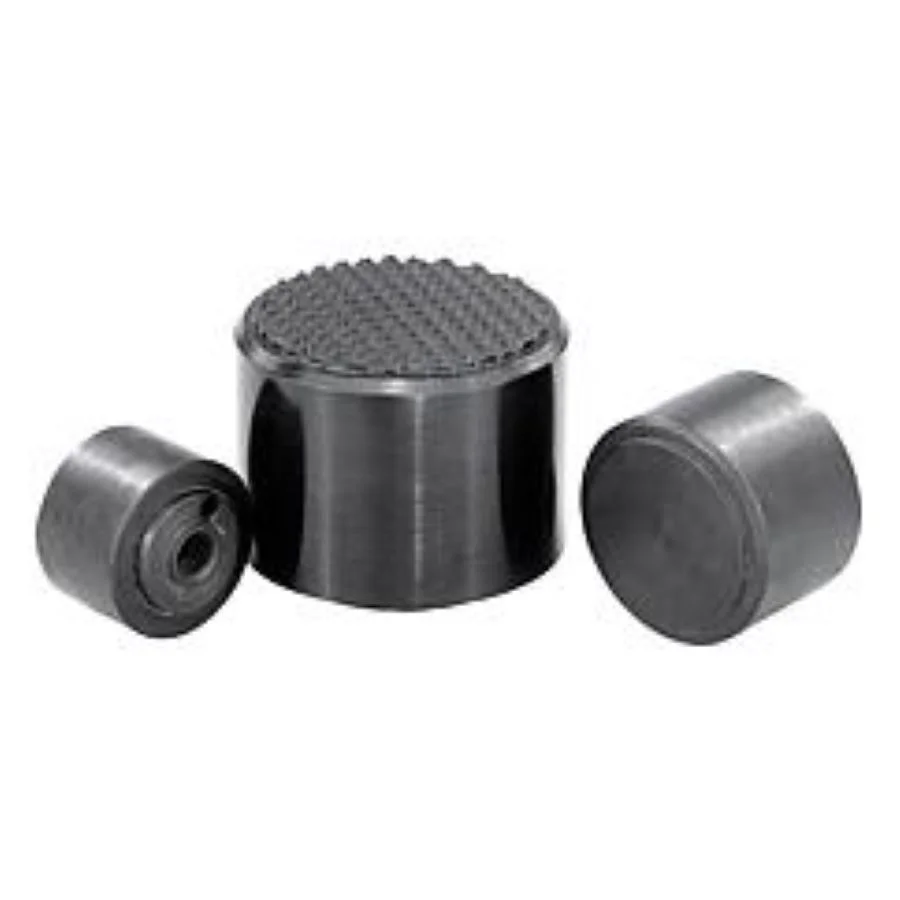

Self-aligning pads are used to support and clamp unmachined and machined workpieces.
They also serve as stops, supports and thrust pads in fixtures and toolmaking.
Advantages:
– The built-in O-ring prevents dirt and foreign particles from entering.

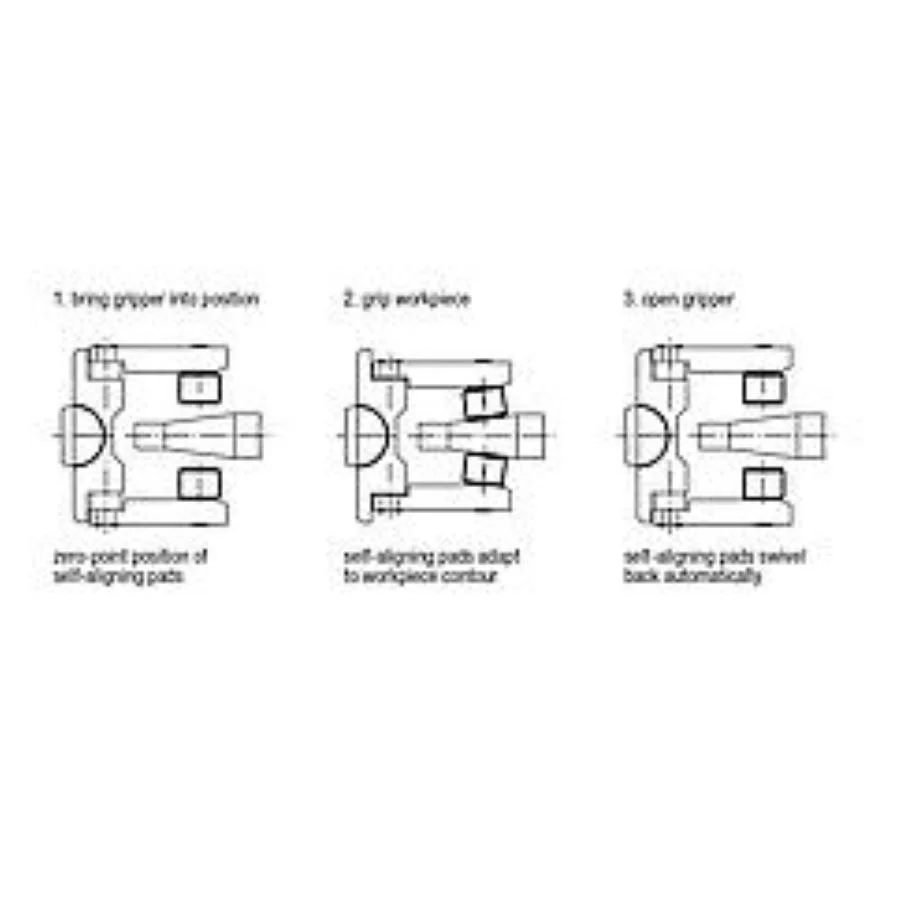

– The clamping surface swivels back automatically after clamping.
– High load rating and small size.
Drawing reference:
Form C: smooth face
Form F: serrated face
1) Hole for pin as a rotation lock
Special features:
Order No. K0286.105 K0286.106 K0286.108 K0286.110 K0286.112 K0286.305 K0286.306 K0286.308 K0286.310 K0286.312
