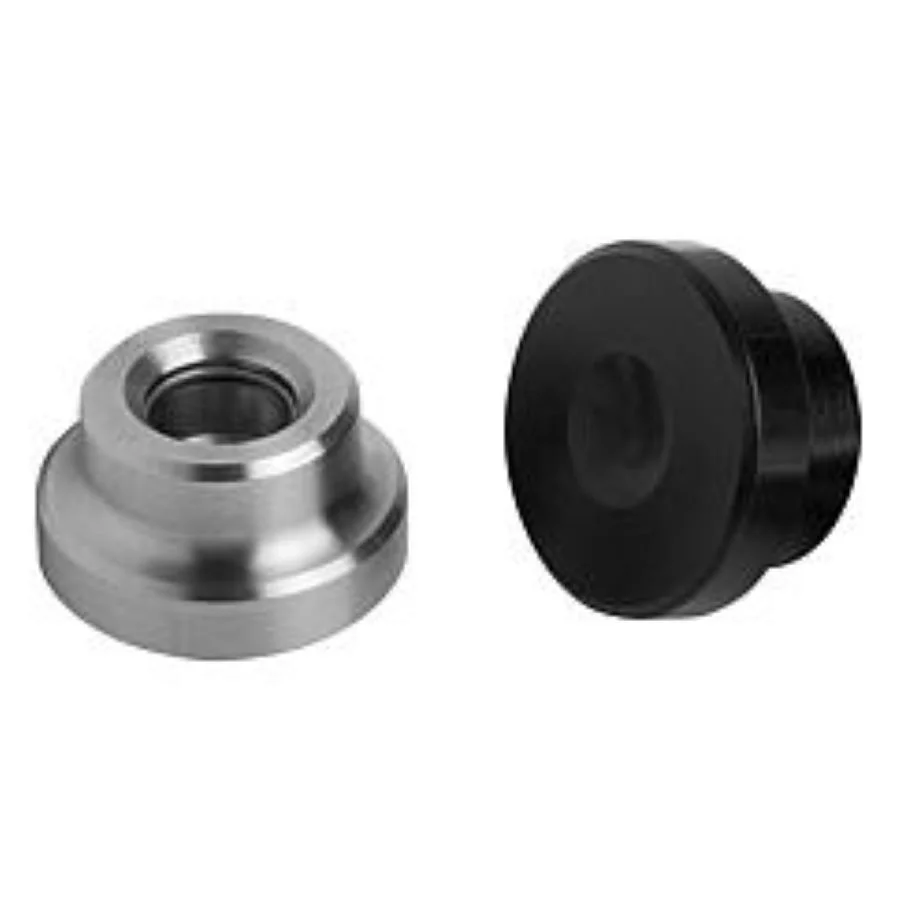

K0392 Kipp thrust pads DIN 6311 enhanced

Steel: case-hardened. Snap ring spring steel.
Stainless steel: bright. Snap ring stainless steel.

Steel black oxidised.
Stainless steel bright.

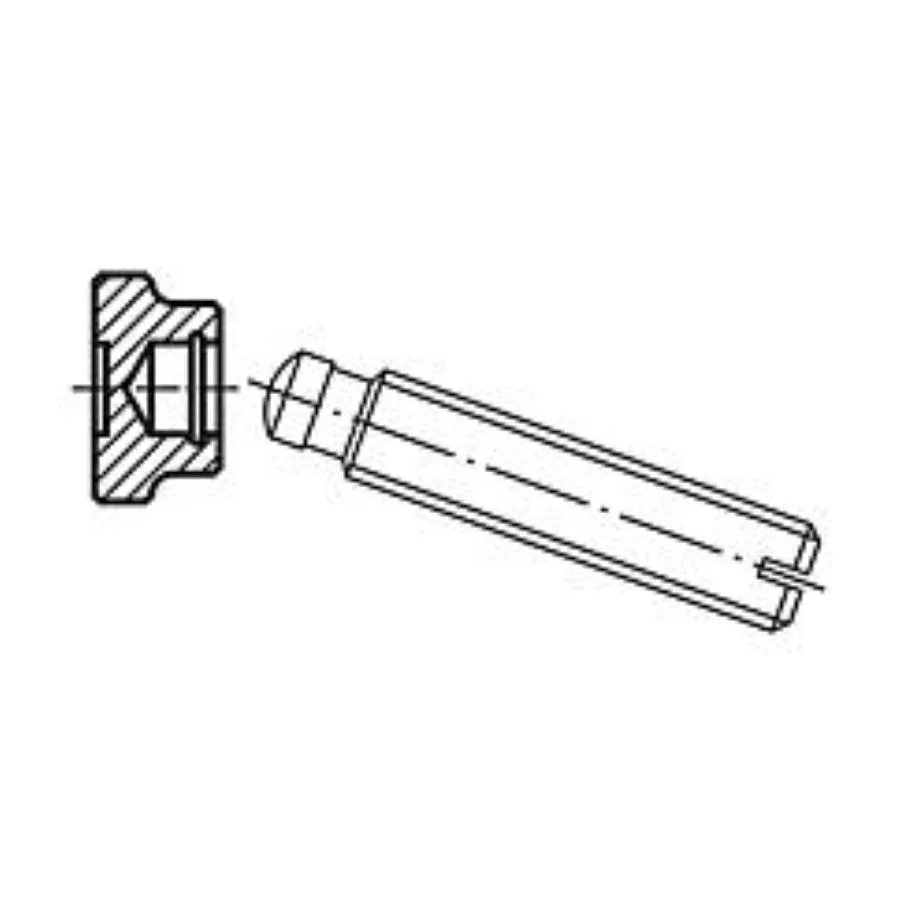

To press onto a thrust point, incline the point as far as possible over the snap ring opening and twist in. The snap ring is supplied assembled.

Drawing reference:
Form S: standard thrust pad
Form T: low version, large thrust face

1) thrust face

Special features:

Order No. K0392.06 K0392.08 K0392.10 K0392.12 K0392.16 K0392.20 K0392.108 K0392.110 K0392.116 K0392.061 K0392.081 K0392.101 K0392.121 K0392.161 K0392.201
