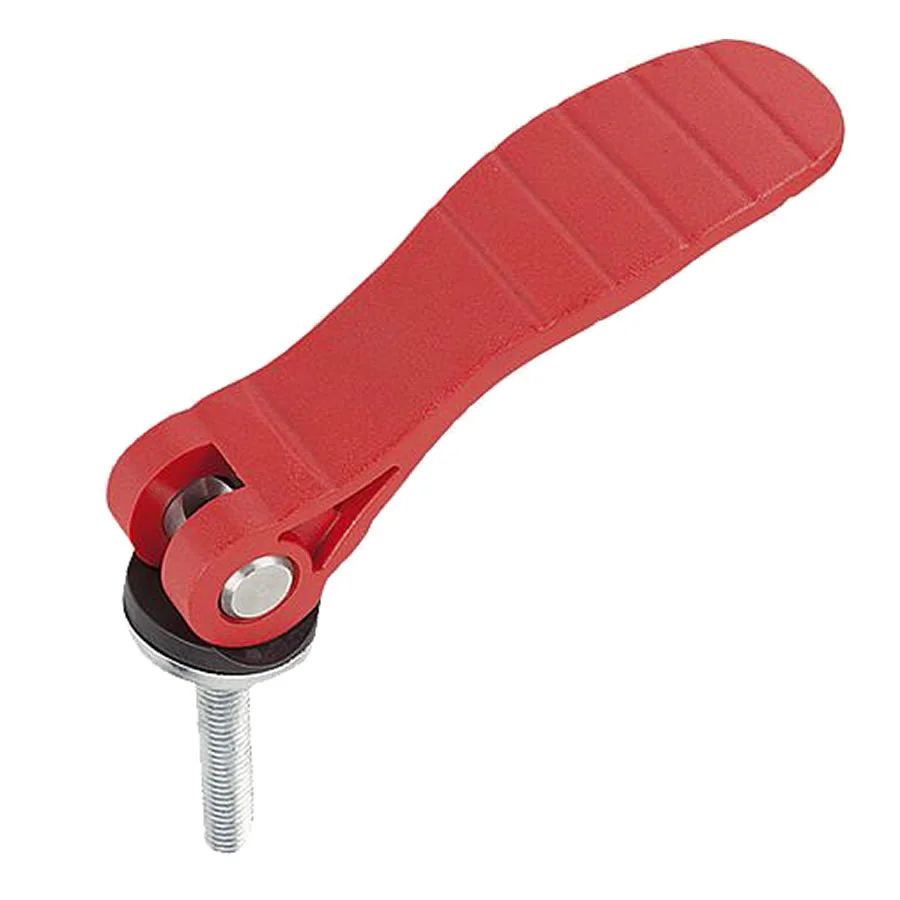

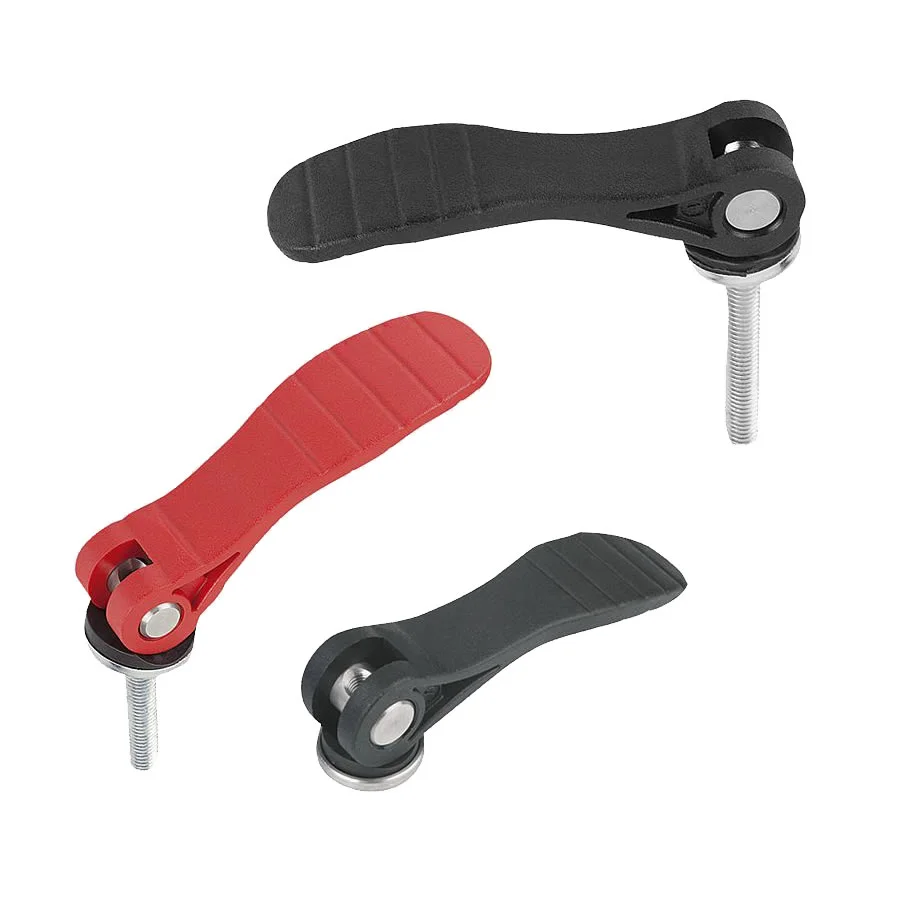

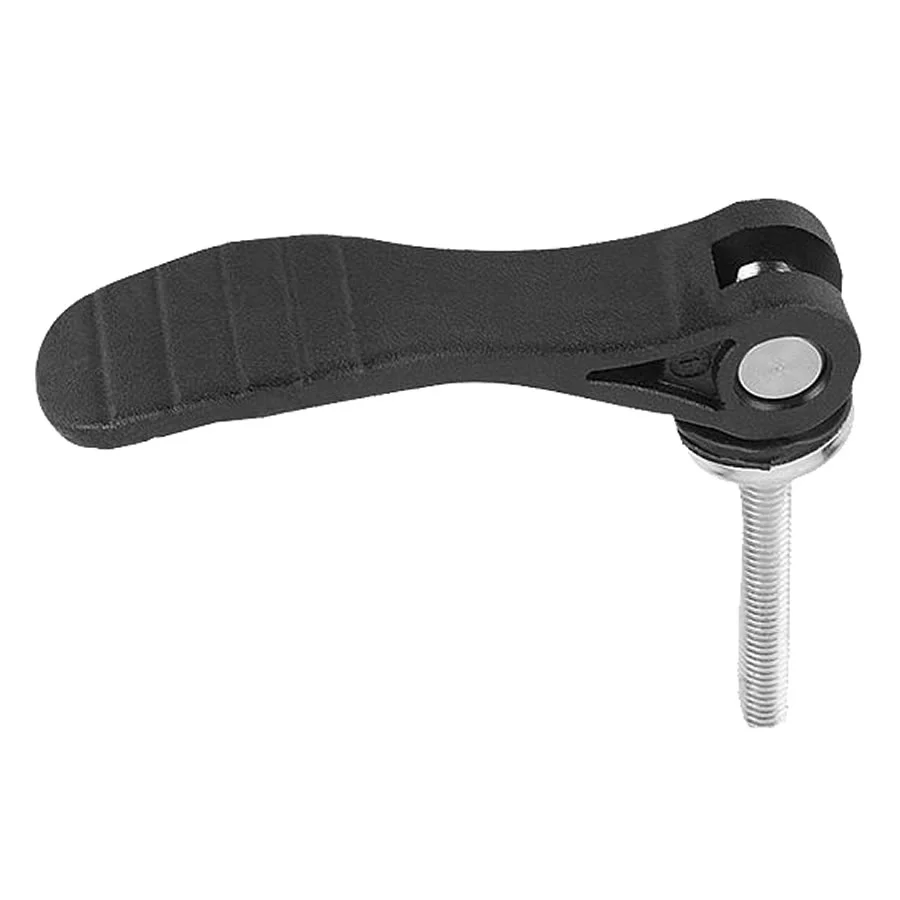

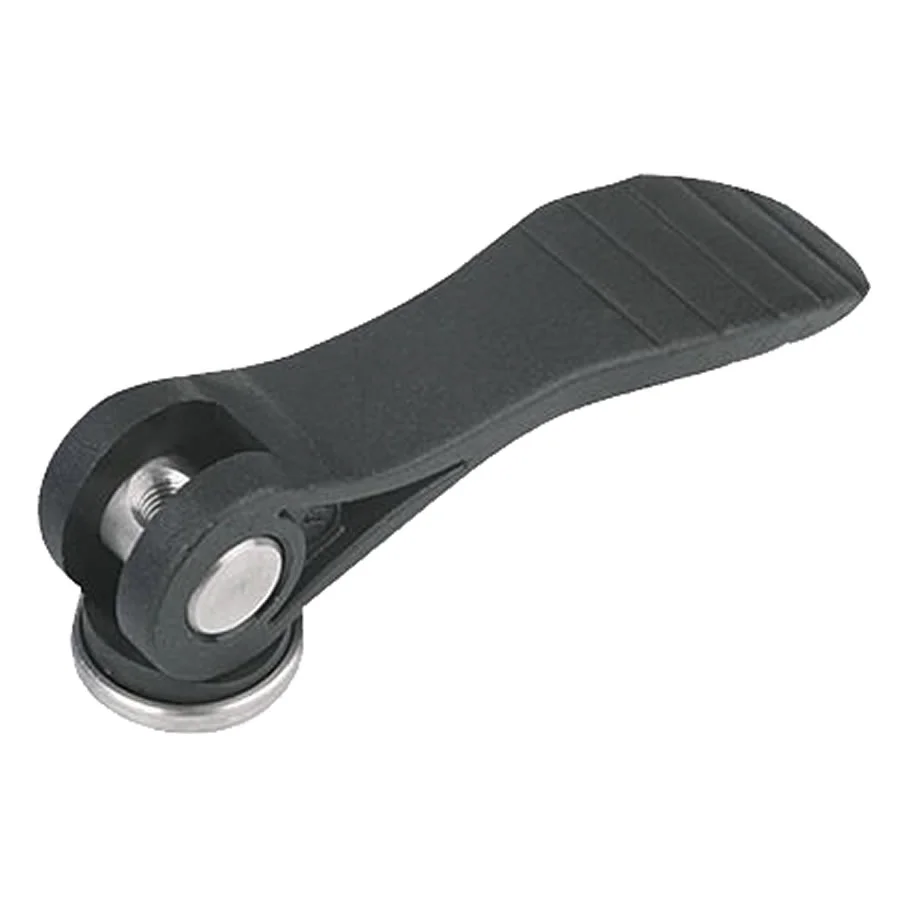

K0646 Kipp Cam levers with plastic handle internal and external thread

Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.

Download Datasheet K0646 Kipp Cam levers with plastic handle internal and external thread

Description

Material:

Version:
Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud and washer trivalent blue passivated or bright stainless steel.

Note:
Plastics are subject to creeping under load (retardation), this can cause reduced clamping force
