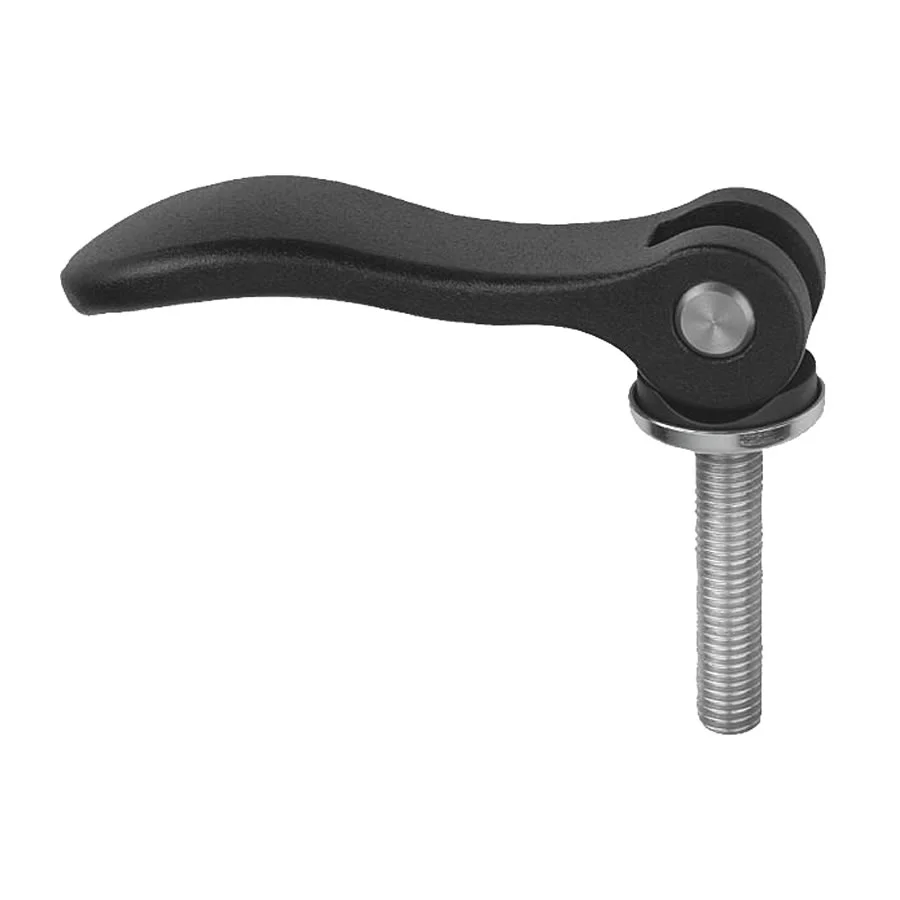

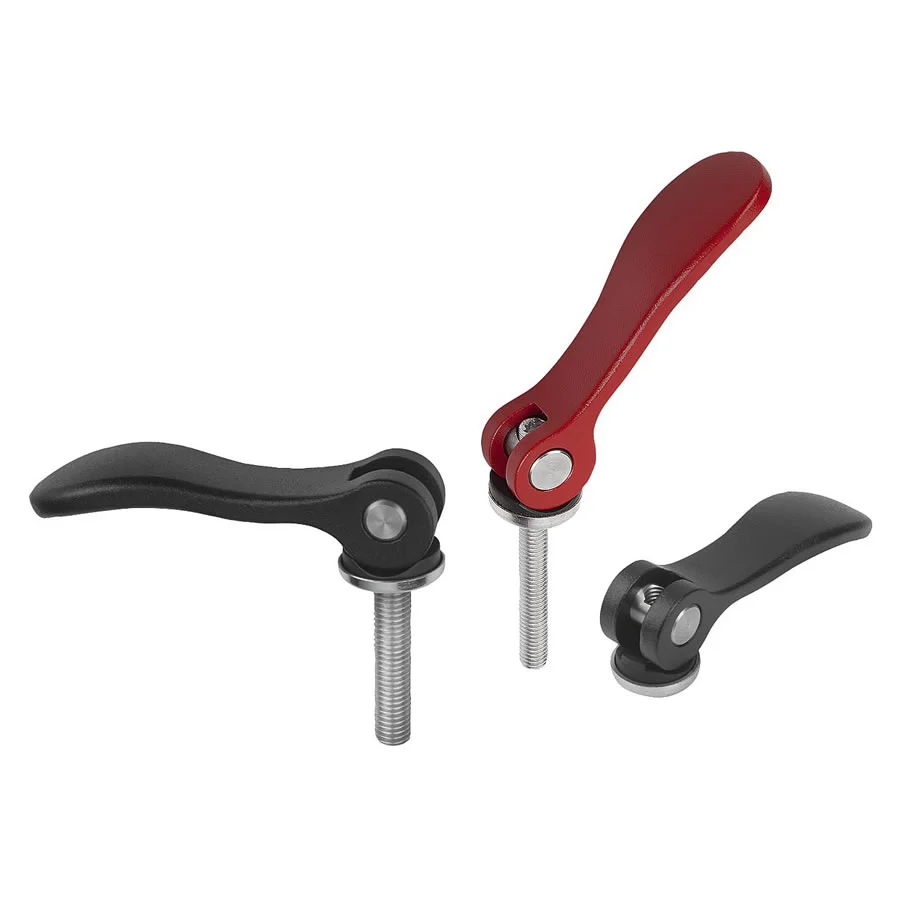

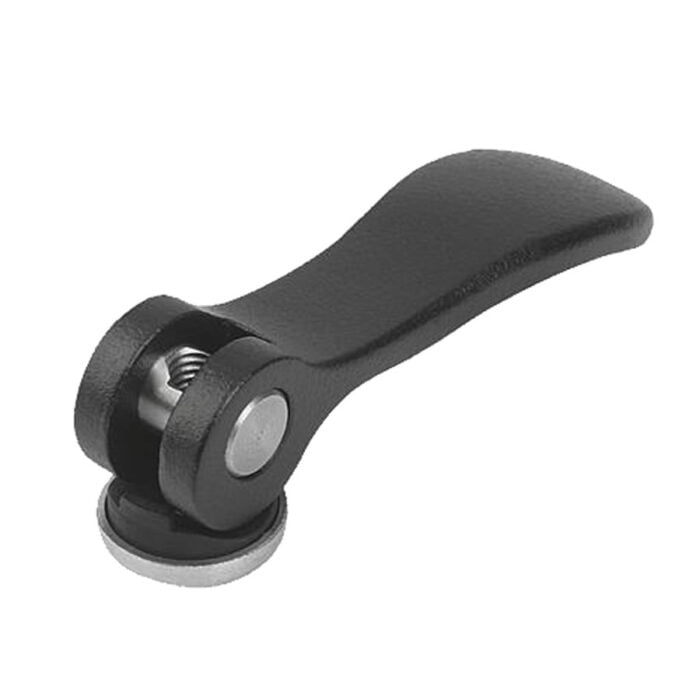

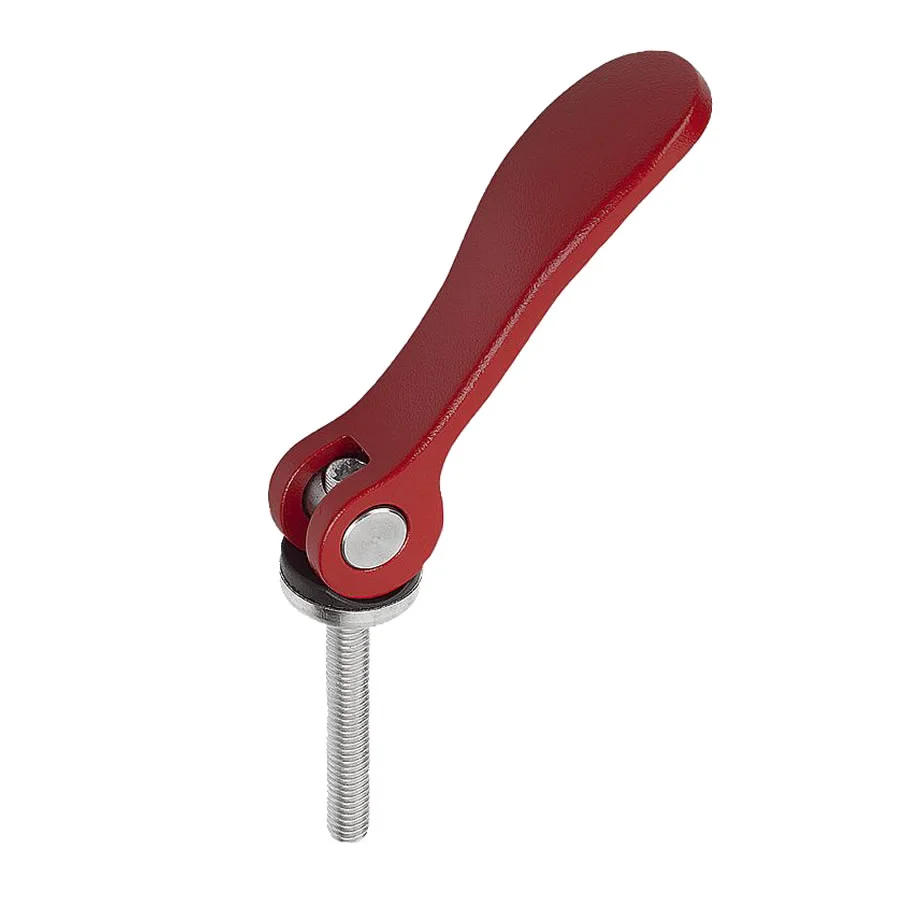

K0005 Kipp Cam levers internal and external thread, steel or stainless steel
Handles fine structured powder-coated, black or red RAL 3003.
Thrust washer black.
Hinge pin bright.
Studs and washer blue passivated steel or bright stainless steel.
Plastics are subject to creeping under load (retardation).
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.
