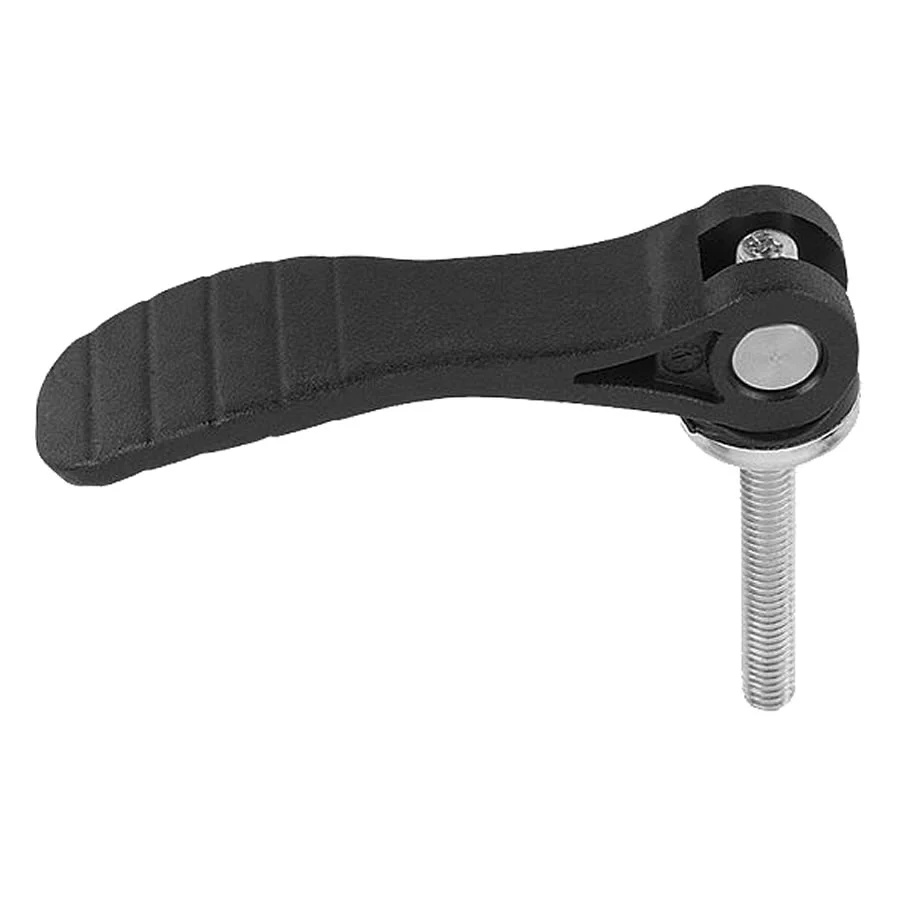

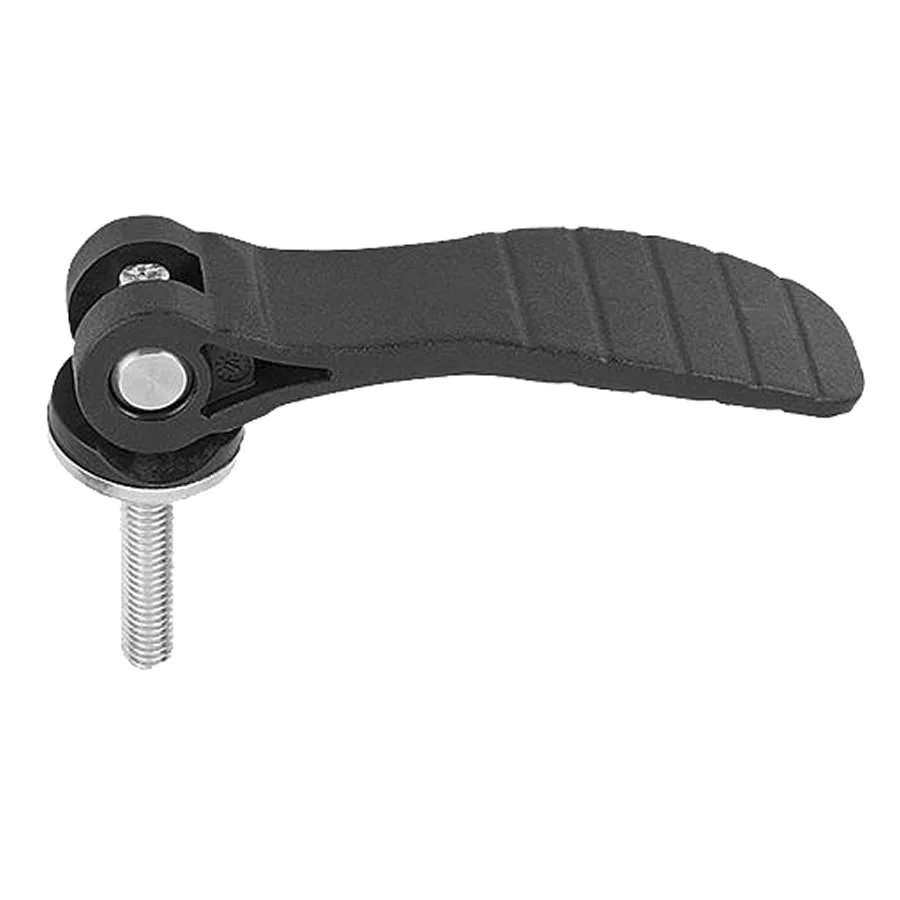

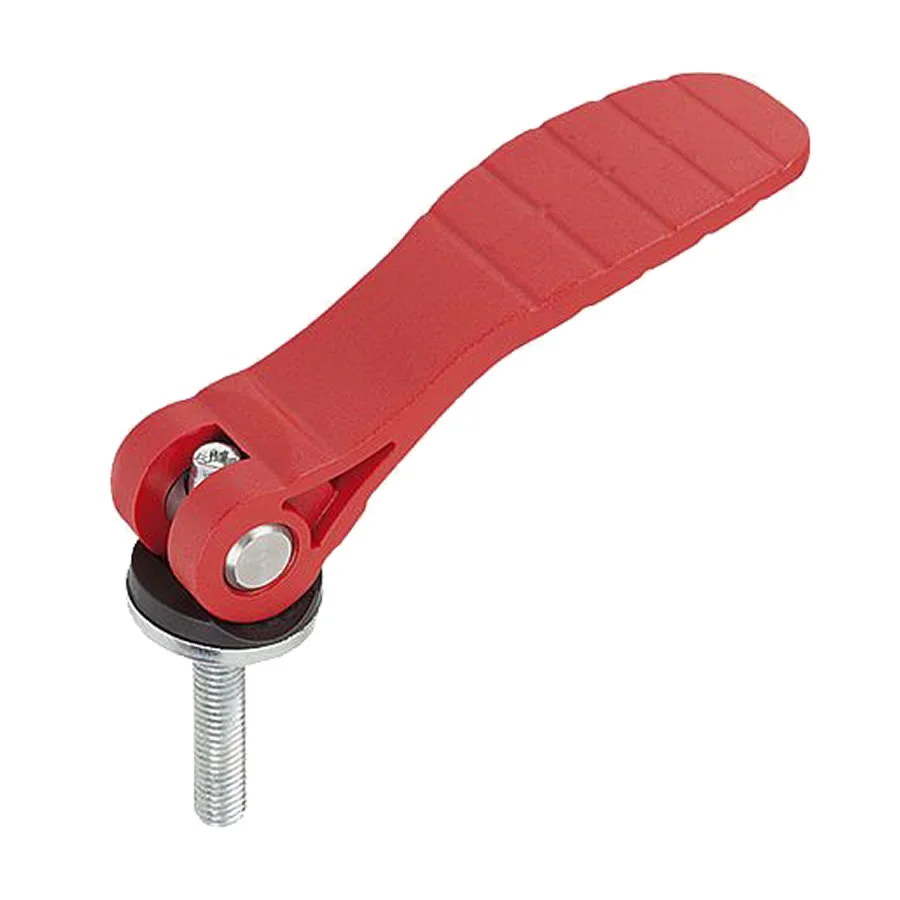

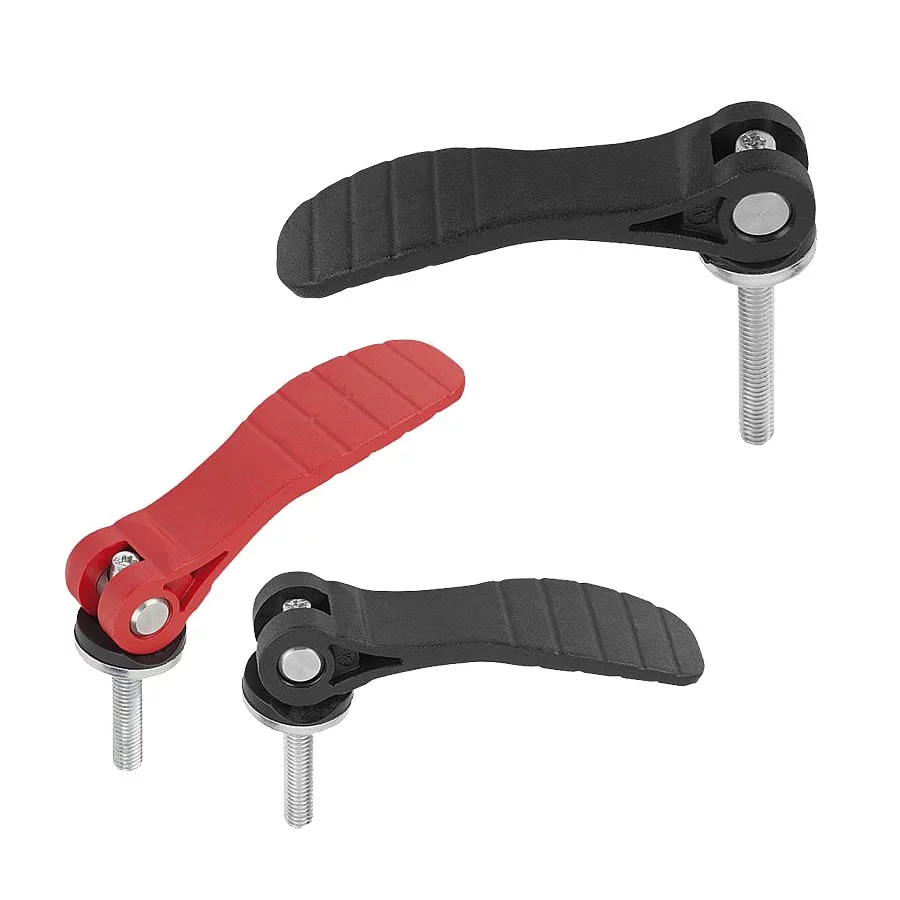

K0648 Kipp cam levers adjustable, plastic handle, external thread, steel or stainless steel

Material:
Handles and thrust washer fiberglass reinforced plastic PA 66.
Hinge pins 1.4305 stainless steel.
Screw and washer steel quality class 5.8 or 1.4305 stainless steel.

Version:
Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud and washer trivalent blue passivated or bright stainless steel.

Note:
Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.

Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.

Drawing reference:
1) setscrew for fine adjustment of lever

Special features:


Order No. K0648.1521105X20 K0648.1521105X30 K0648.1521105X40 K0648.1521105X50 K0648.1521106X20 K0648.1521106X30 K0648.1521106X40 K0648.1521106X50 K0648.2521108X25 K0648.2521108X30 K0648.2521108X40 K0648.2521108X50 K0648.2521110X25 K0648.2521110X30 K0648.2521110X40 K0648.2521110X50 K0648.1531105X20 K0648.1531105X30 K0648.1531105X40 K0648.1531105X50 K0648.1531106X20 K0648.1531106X30 K0648.1531106X40 K0648.1531106X50 K0648.2531108X25 K0648.2531108X30 K0648.2531108X40 K0648.2531108X50 K0648.2531110X25 K0648.2531110X30 K0648.2531110X40 K0648.2531110X50 K0648.15218405X20 K0648.15218405X30 K0648.15218405X40 K0648.15218405X50 K0648.15218406X20 K0648.15218406X30 K0648.15218406X40 K0648.15218406X50 K0648.25218408X25 K0648.25218408X30 K0648.25218408X40 K0648.25218408X50 K0648.25218410X25 K0648.25218410X30 K0648.25218410X40 K0648.25218410X50 K0648.15318405X20 K0648.15318405X30 K0648.15318405X40 K0648.15318405X50 K0648.15318406X20 K0648.15318406X30  K0648.15318406X40 K0648.15318406X50 K0648.25318408X25 K0648.25318408X30 K0648.25318408X40 K0648.25318408X50 K0648.25318410X25 K0648.25318410X30 K0648.25318410X40 K0648.25318410X50
