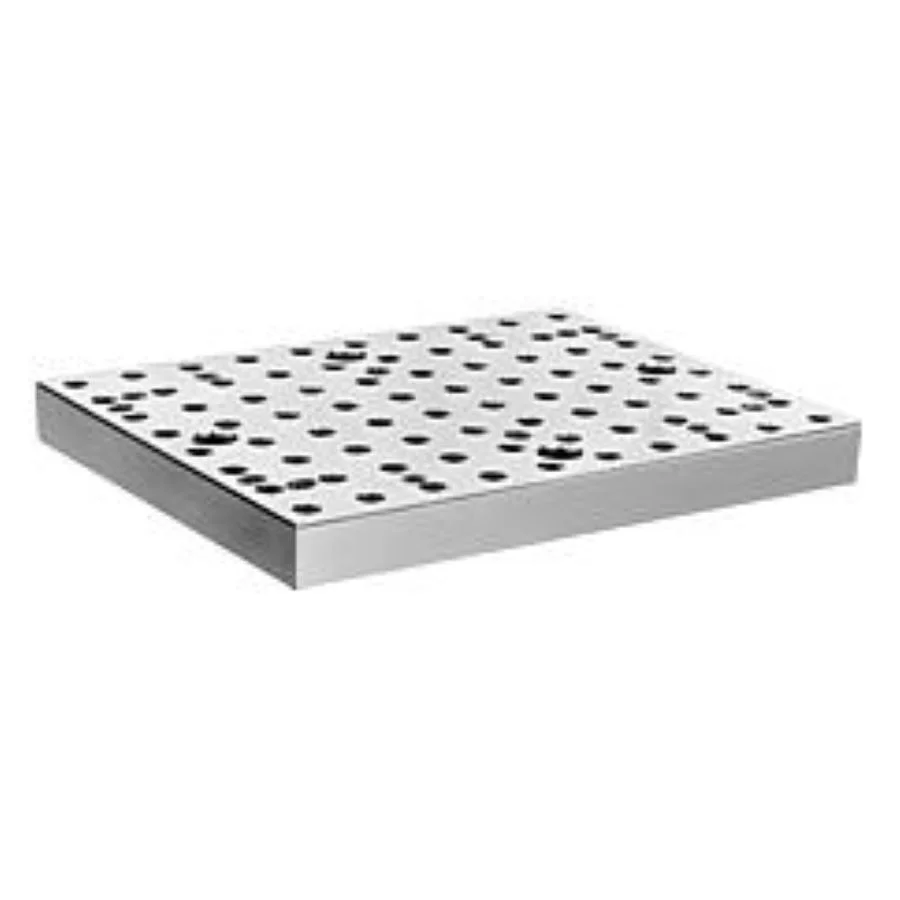

K0800 Kipp tooling plates

View product information as a PDF datasheet:
Product Specification Datasheet for K0800 Kipp tooling plates

Grey cast iron GJL 250

Mounting surfaces ground

Grid hole pitch 50 ±0.01mm.
Grid hole plugs and ring bolts for lifting are supplied.
For large workpieces the tooling plates can be joined together using connecting pieces K0854.400.

Special features:

Order No. K0800.005060 K0800.125060 K0800.165060 K0800.006080 K0800.126080 K0800.166080
