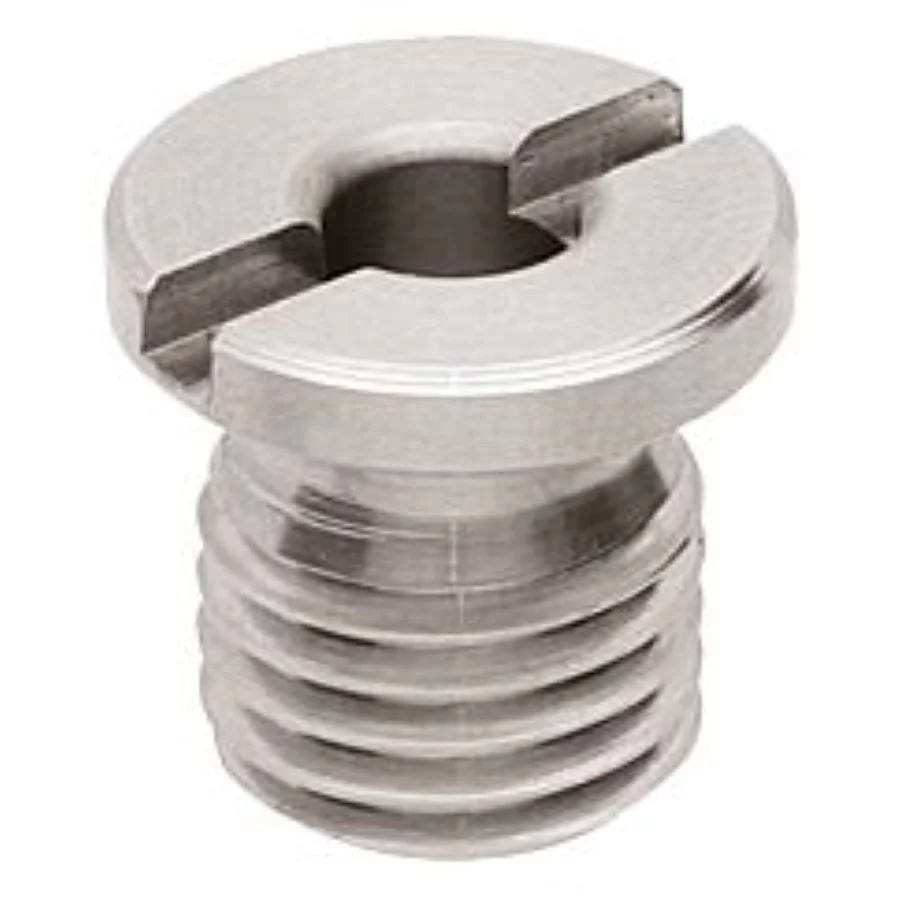

K1068 Kipp magnetic bushes

Material:
Housing stainless steel.
Magnet neodymium.

Version:
Housing bright.

Note:
A magnet in the bush attracts the pin (K1069) and holds it with the specified retaining force.
Repeat accuracy ± 0.25. The repeat accuracy can be increased with the aid of additional locating pins.

Installation dimensions for Form A:
min. plate thickness 6 mm.
Installation dimensions for Form B:
max. plate thickness 10 mm.
Installation dimensions for Form C:
plate thickness > 10 mm.
Installation dimensions for Form D:
blind hole.

On request:
Suitable nuts.

Accessory:
Pin K1069

Drawing reference:
1) magnet
2) circlip

Special features:

Order No.  K1068.6
