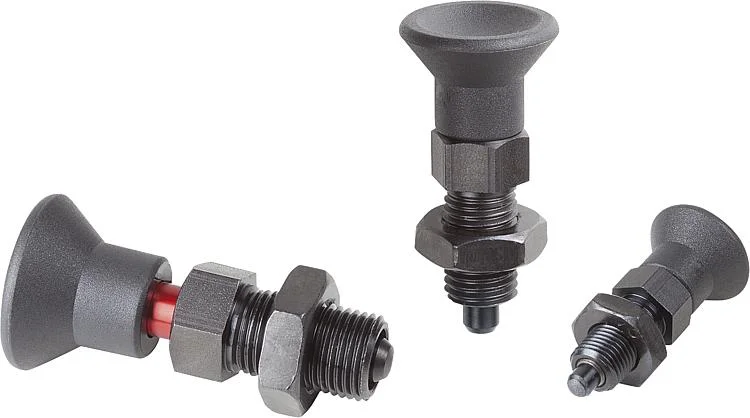

K1149 Kipp Indexing plungers with locked mark
View CAD data and product information as a PDF datasheet:
Product Specification Datasheet for K1149 Kipp Indexing plungers with locked mark
Product Specification Datasheet for K1149 Kipp Indexing plungers with locked mark
Material:
Indexing pin steel.
Threaded sleeve 1.0718.
Mushroom knob black grey thermoplastic.
Lock mark aluminium.
Version:
Indexing pin steel, hardened, ground and black oxidised.
Threaded sleeve black oxidised.
Lock mark red anodised.
Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the plunger has been manually disengaged.
When the lock mark is visible the plunger is either completely disengaged or only partly in the index position.
