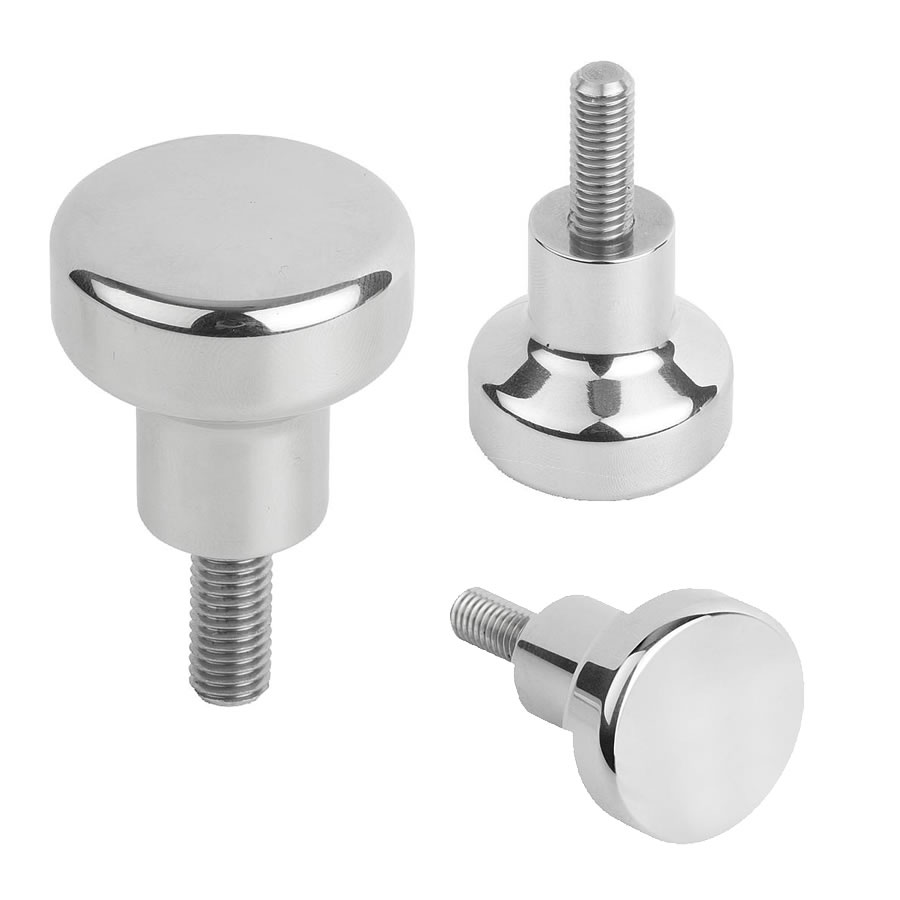

K1309 Kipp Mushroom knobs male thread with high head for Hygienic USIT®…

Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.

Download Datasheet K1309 Kipp Mushroom knobs male thread with high head for Hygienic USIT®...

Category: Brand:

Description

Material:

Version: High-gloss polished.

Note: The high head makes the mushroom knob ideal for manual pull and push movements.
The complete surface is polished to a high gloss with a surface finish of much less than Ra 0.8 µm. The contour is produced with generous radii and transitions. It doesn’t matter in which position the mushroom knob is mounted, dirt and residue from products or cleaners seldom adheres. Easy cleaning is ensured.

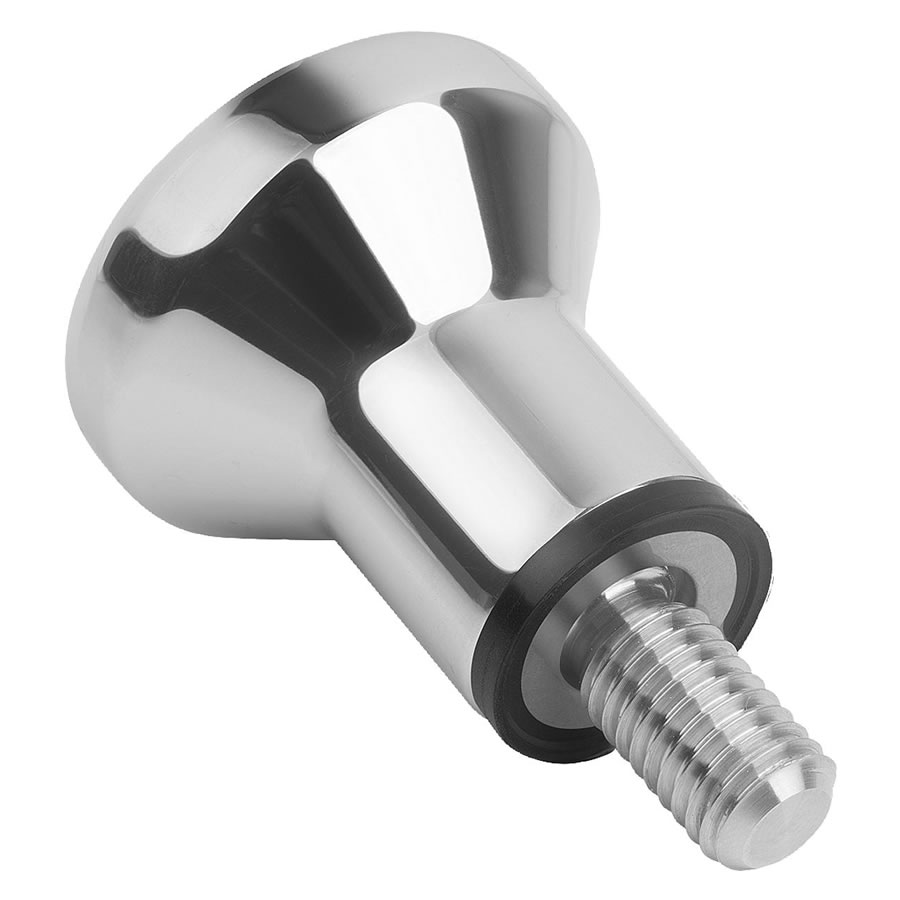

The Hygienic USIT® sealing and shim washers from Freudenberg Process are used to seal the screw-on point. The shaft of the mushroom knob is specially designed to suit this seal. An almost cavity-free seal of the screw-on point is created which satisfies hygienic regulations.

On request: Inch threads, thread lengths, form variations.

Accessory: Hygienic USIT® sealing and shim washer K1491 for the screw-on surface.

Special features:

RoHS
