K1482 Kipp connectors with screw fitting screened
View product information as a PDF datasheet:
Product Specification Datasheet for K1482 Kipp connectors with screw fitting screenedView CAD Files
Product Specification Datasheet for K1482 Kipp connectors with screw fitting screenedView CAD Files

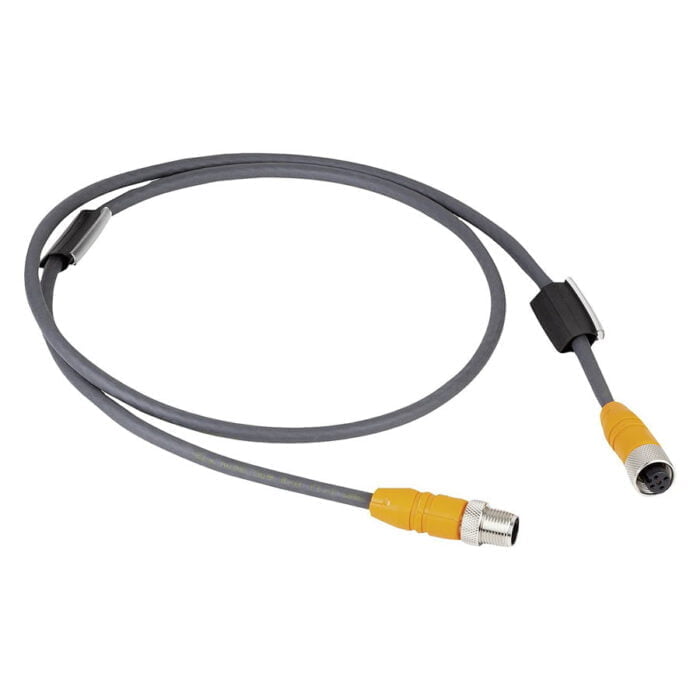

K1482 Kipp connectors with screw fitting screened. Accessory for toggle clamp with force sensor K1463. Connectors with screw fitting and cable serve as a connection cable for sensors and actuators. The cable screening protects from outside interference and ensures error-free signal transmission.
Connectors with screw fitting. Connector moulded to cable. Cable, PVC-, silicon- and halogen-free. Drag-chain suitable.
Forms available:
- K1482_A Form A: bush (female) straight
- K1482_B Form B: bush (female) angle
- K1482_C Form C: plug (male) straight
- K1482_D Form D: plug (male) angled
- K1482_E Form E: bush (female) straight + bush (female) straight
- K1482_F Form F: bush (female) straight + plug (male) straight
- K1482_G Form G: bush (female) angled + plug (male) angled
Description:
- Material: TPU housing. PUR cable sheath. Brass knurled nut. Bronze contacts.
- Version: Tin-plated knurled nut.Gold-plated contacts. Number of pins: 5-pin, A-encoded, screened.
- Technical data: in the datasheet.
- RoHS compliant products: Products marked with this symbol are compliant with the EU directive 2011/65/EU (RoHS).
Category: Horizontal Toggle Clamps
Tags: Kipp Connectors, Kipp Toggle Clamps
Order No:
K1482.1215X2000 K1482.1215X5000 K1482.1215X10000 K1482.1225X2000 K1482.1225X5000 K1482.1225X10000 K1482.1235X2000 K1482.1235X5000 K1482.1235X10000 K1482.1245X5000 K1482.1211215X5000 K1482.1211215X10000 K1482.1211235X1000 K1482.1211235X2000 K1482.1211235X5000 K1482.1211235X10000 K1482.1221245X1000 K1482.1221245X5000
