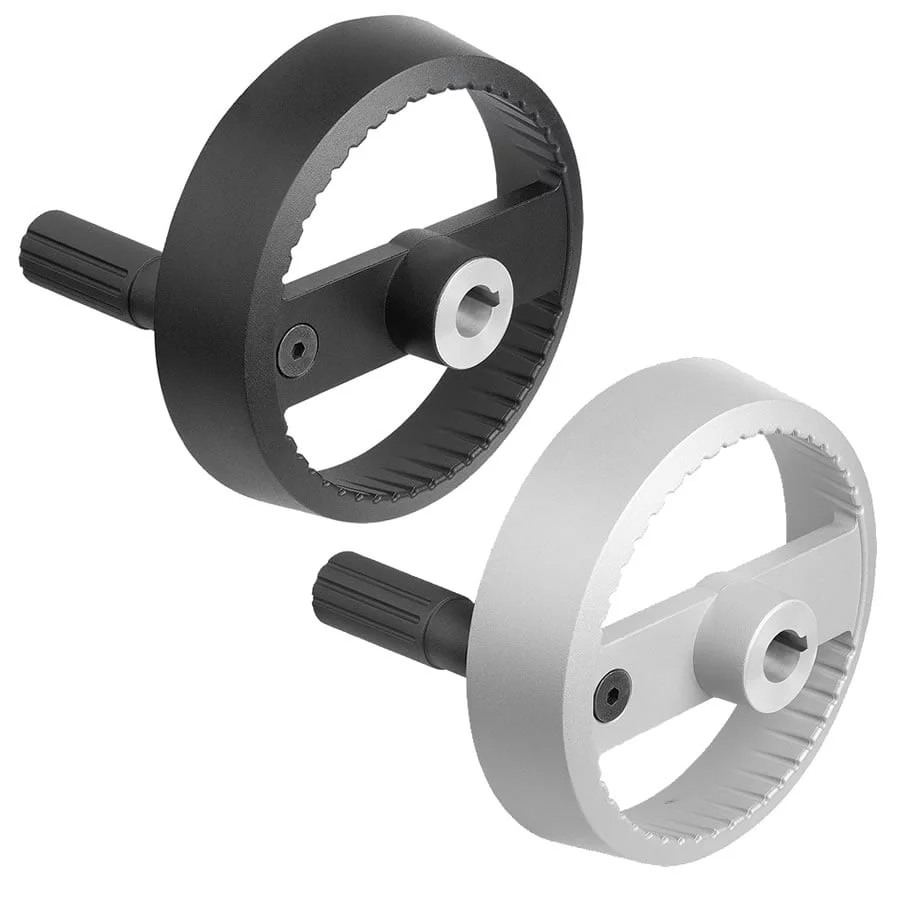

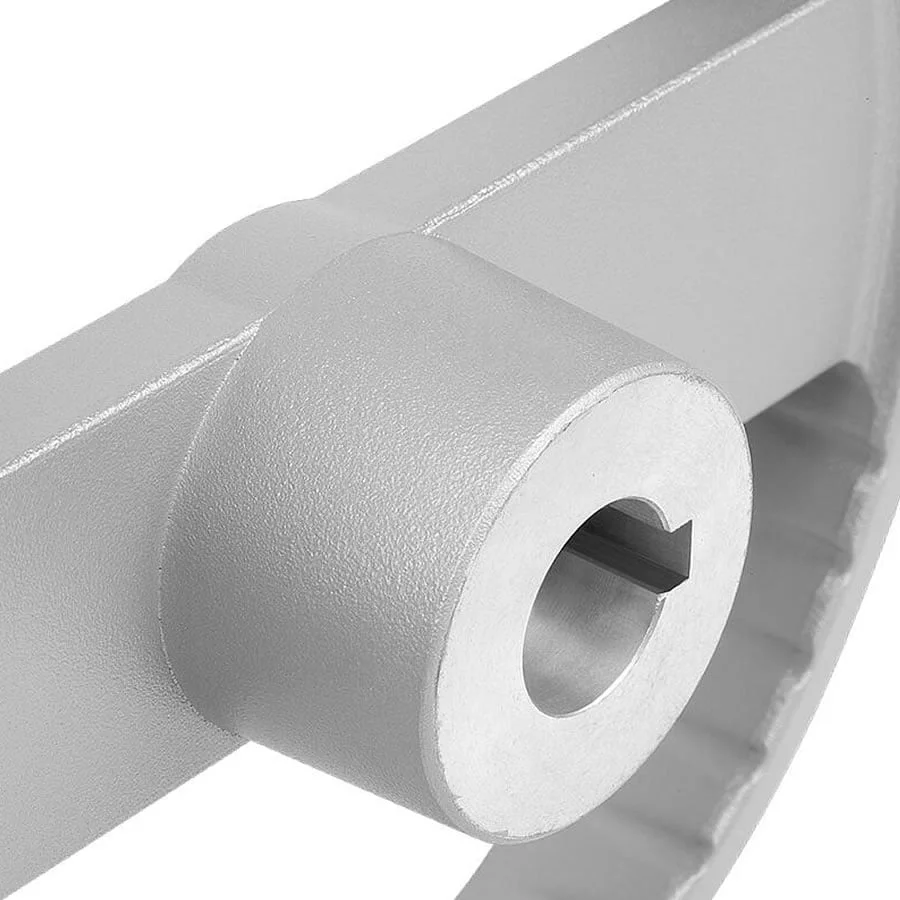

K1525_C Kipp 2-spoke handwheels, aluminium, with fold-down cylinder grip, Form C with reamed hole and keyway

Wheel rim radial and axial run-out ≤ 0.4 mm.

  • Material: Handwheel aluminium. Cylinder grip and hub cover black thermoplastic. Cylinder grip pin black oxidised steel. ISO 4027 grub screw, steel grade 45 H, black.
  • Version: Black or silver powder-coated.
  • Assembly: The hub cover is supplied unassembled. The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a handwheel washer K0173. By the versions with transverse bore, fixation is carried out using an ISO 4027 grub screw.

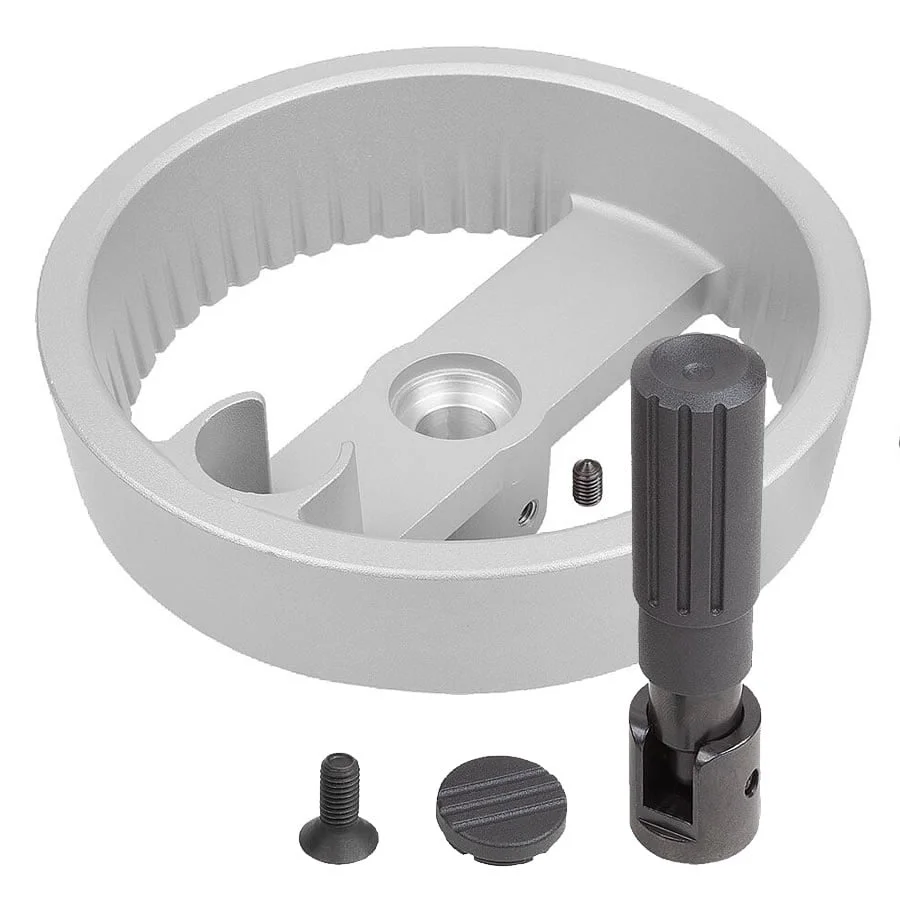

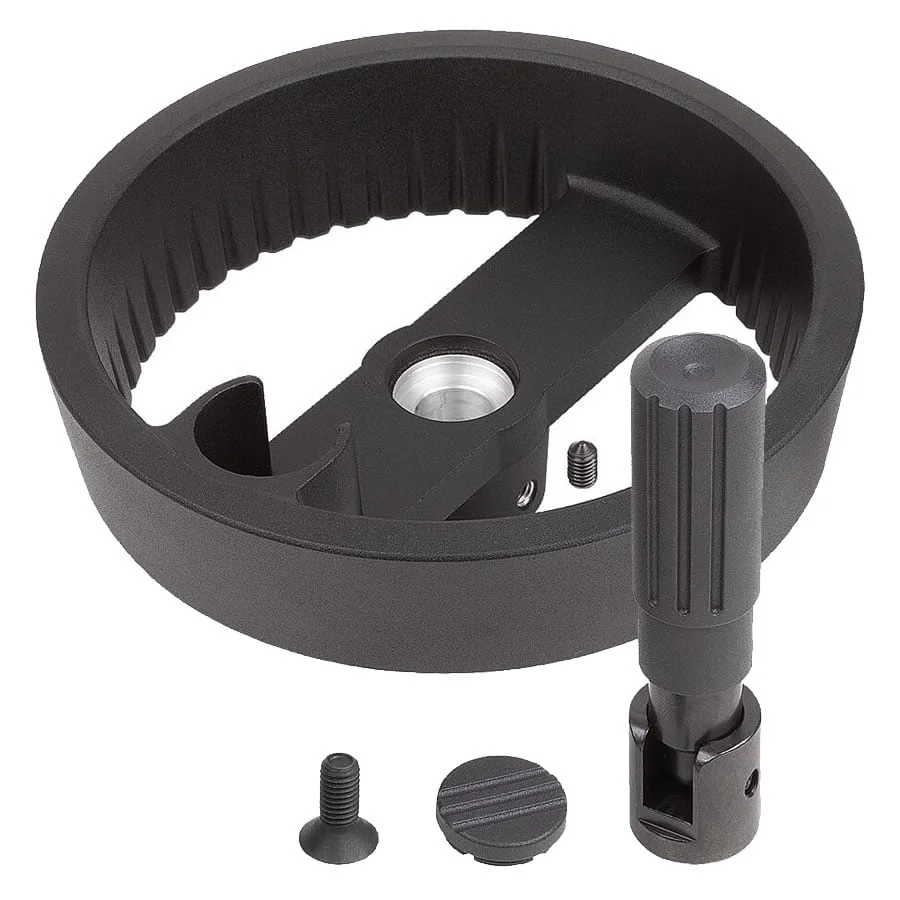

  • Supplied with: Aluminium handwheel. Hub cover. Fold-down cylinder grip. ISO 4027 grub screw (type with transverse bore).
  • Accessory: K0173 Handwheel washers. K1160 Socket head screws with low head DIN 6912.
RoHS compliant product
