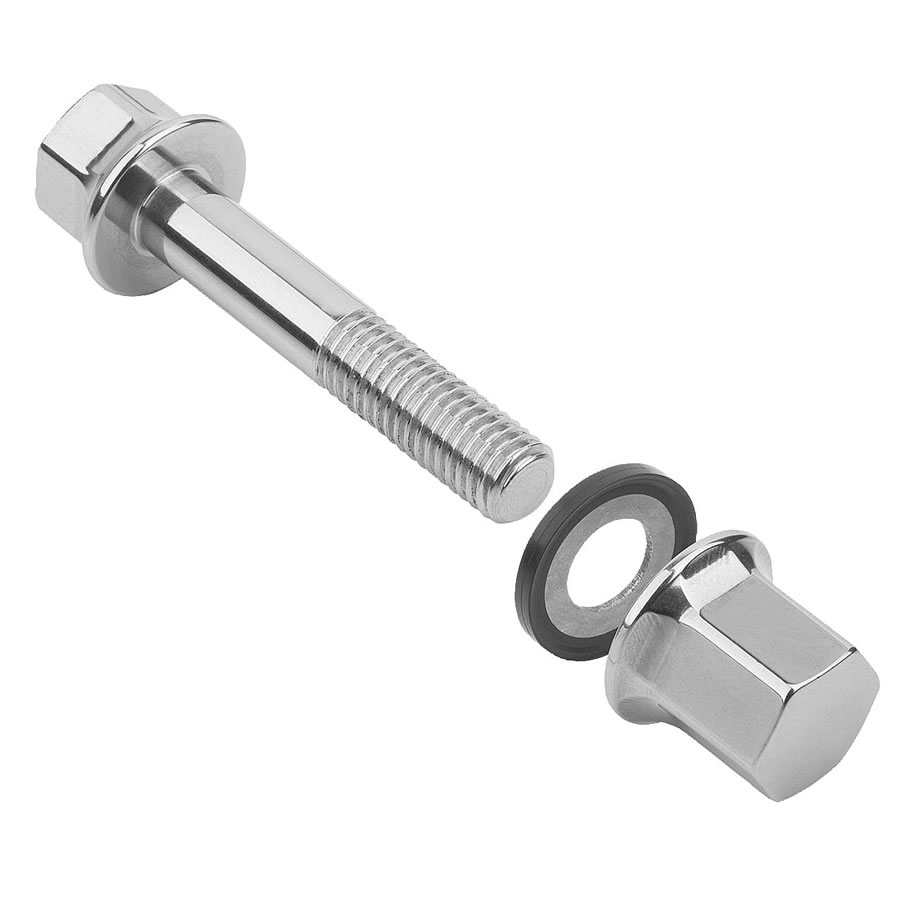

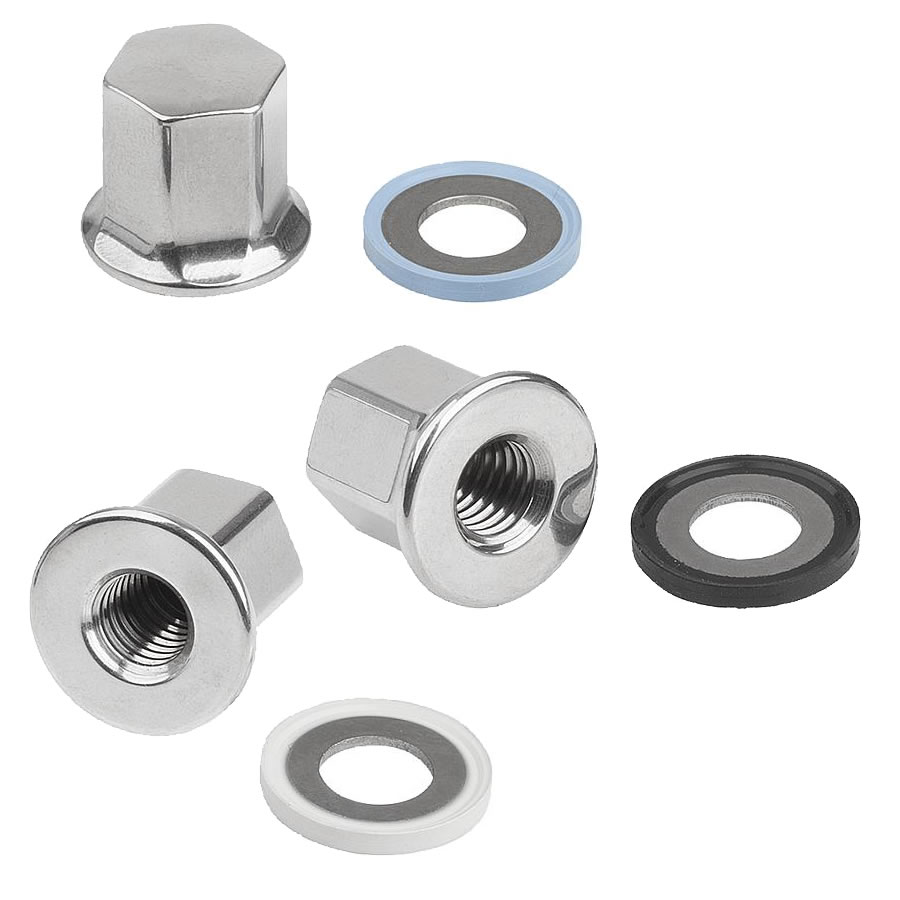

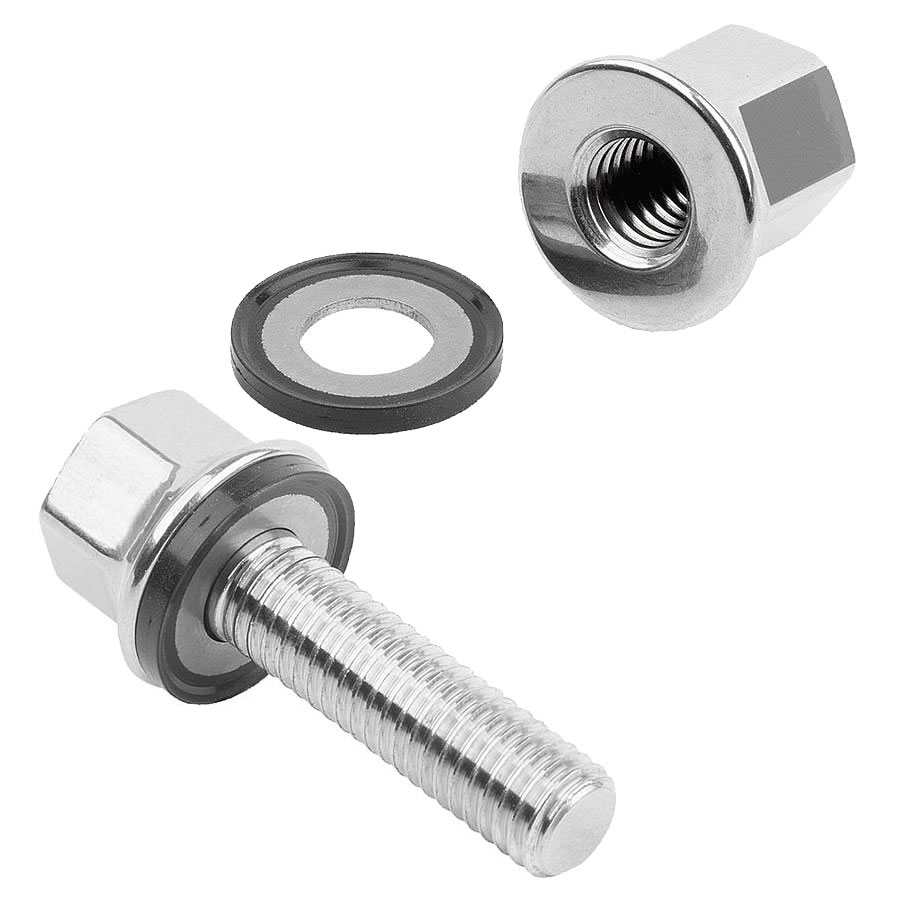

K1594 Kipp Stainless steel cap nuts with collar, seal, shim washer for Hygienic USIT® set
Set: Cap nut with collar K1493 + Hygienic USIT® seal and shim washer K1491. Only the combination of a cap nut with collar and the Hygienic USIT® seal and shim washer assures a cavity-free seal. The cap nut with collar for Hygienic USIT® seal and shim washers is ideal for fastening in sterile areas and also conform to EHEDG regulations, which is confirmed with the relevant certificate.
Material: Cap nut: stainless steel 1.4404. Washer: stainless steel 1.4404.
70 EPDM 291 (black).
70 EPDM 253815 (white).
75 Fluoroprene® XP 45 (blue).
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.
