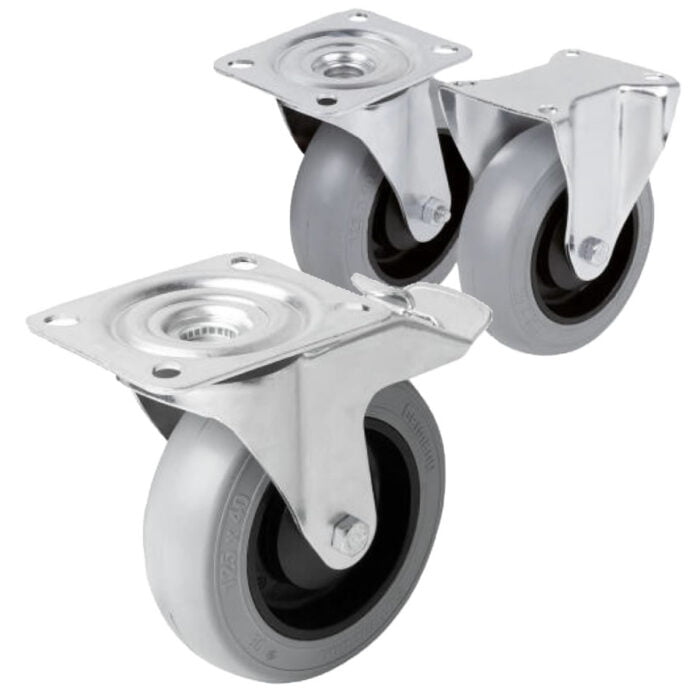

K1766 Kipp Steel plate swivel and fixed castors with soft rubber tyres
View product information as a PDF datasheet:
Product Specification Datasheet for K1766 Kipp Steel plate swivel and fixed castors with soft rubber tyresView CAD Files
Product Specification Datasheet for K1766 Kipp Steel plate swivel and fixed castors with soft rubber tyresView CAD Files
Maximum travel comfort, excellent cushioning of the transported goods. The new soft rubber series brings noticeable noise reduction in all applications.
- Housing: steel plate
- Wheel rims: high-quality unbreakable polyamide or die-cast aluminium.
- Wheel tyre: high-quality elastic solid rubber.
- Housing: press formed.
- Swivel housing: double-row ball bearings in a swivel head.
- Ball bearing wheel axle bearings.
- Wheel axle bolted.
- Swivel and fixed castors with mounting plate.
- Permissible load: 150 – 300 kg.
- Temperature range: -25 °C to +80 °C.
Order No: K1766.101000401 K1766.101250401 K1766.101500401 K1766.101600501 K1766.102000501 K1766.10100040 K1766.10125040 K1766.10150040 K1766.10160050 K1766.10200050 K1766.101000402 K1766.101250402 K1766.101500402 K1766.101600502 K1766.102000502
