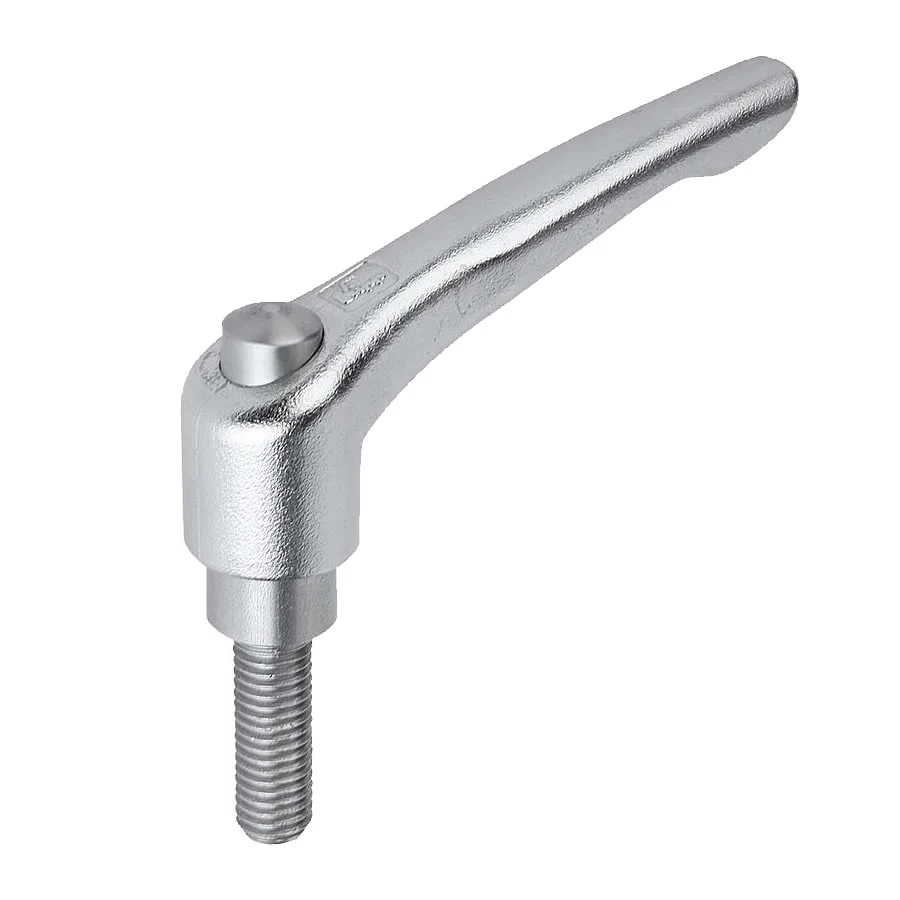

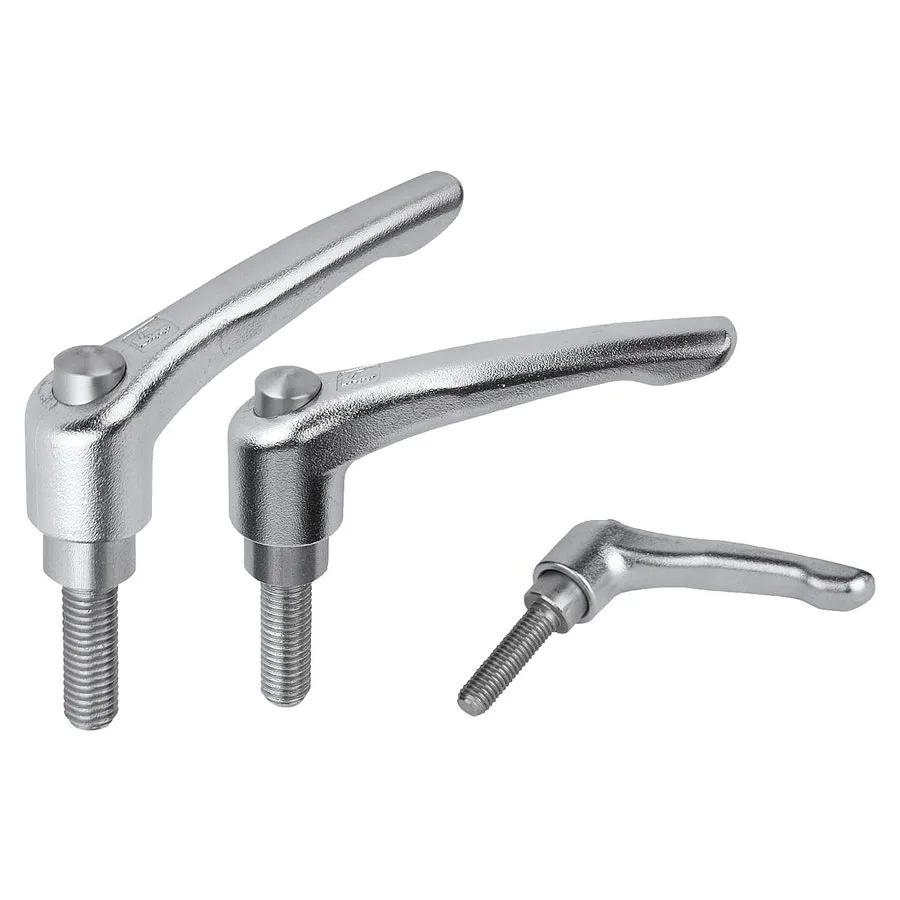

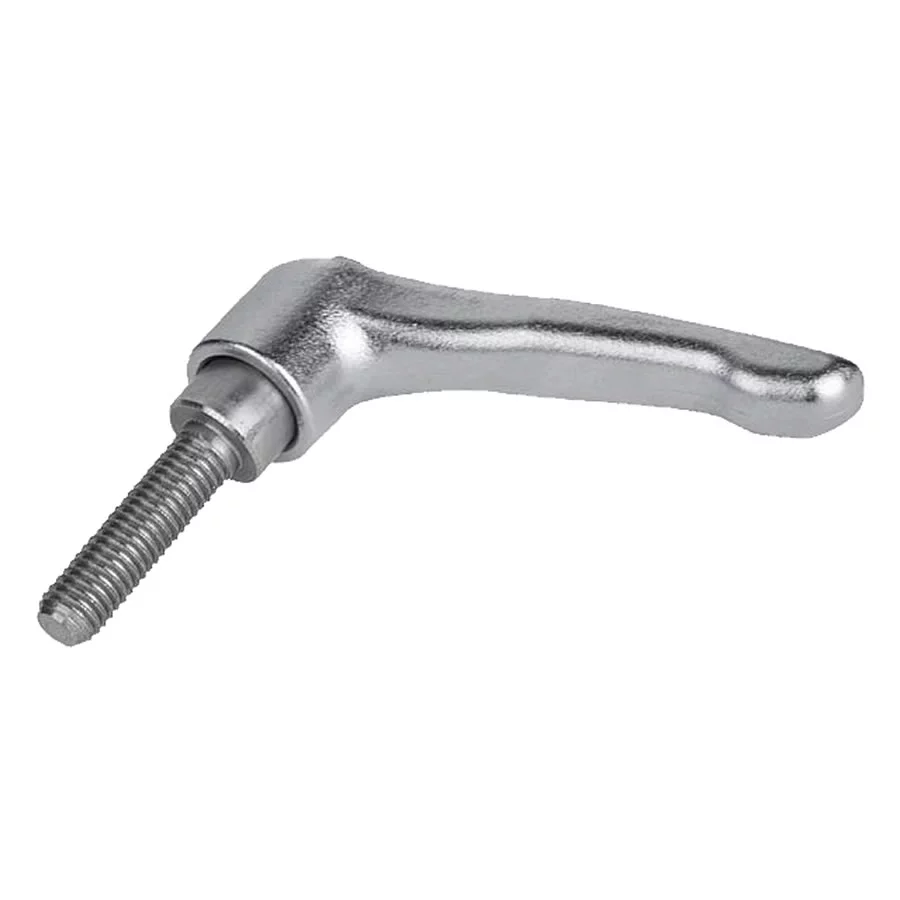

K0124 Kipp Clamping levers with protective cap external thread, stainless steel
Material: Handle investment cast 1.4308. Other steel parts 1.4305.
Version: Handle electropolished. Steel parts bright.
On request: Other threads, screw lengths and special versions. Dimension “H1” available in other lengths at extra charge.
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.
