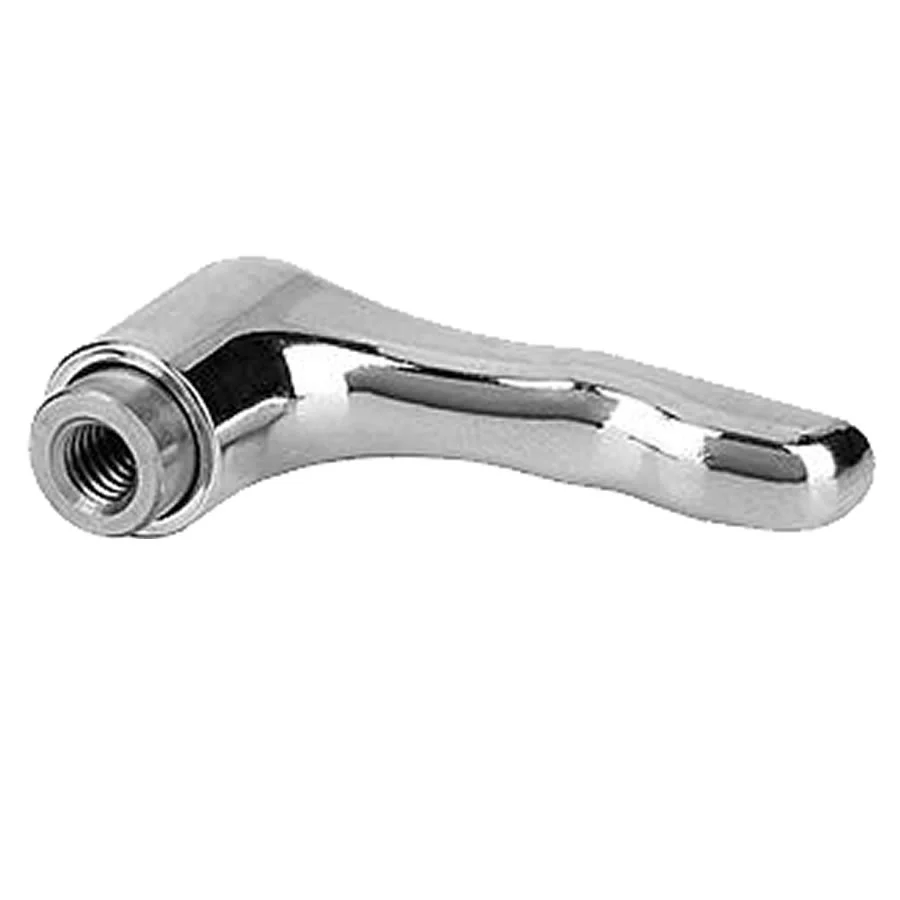

K0123 Kipp Clamping levers with internal thread, steel parts stainless steel
Material: Handle die-cast zinc DIN EN 12844. Steel parts stainless steel 1.4305.
Version: Handle powder-coated or high-gloss chromed. Steel parts bright.

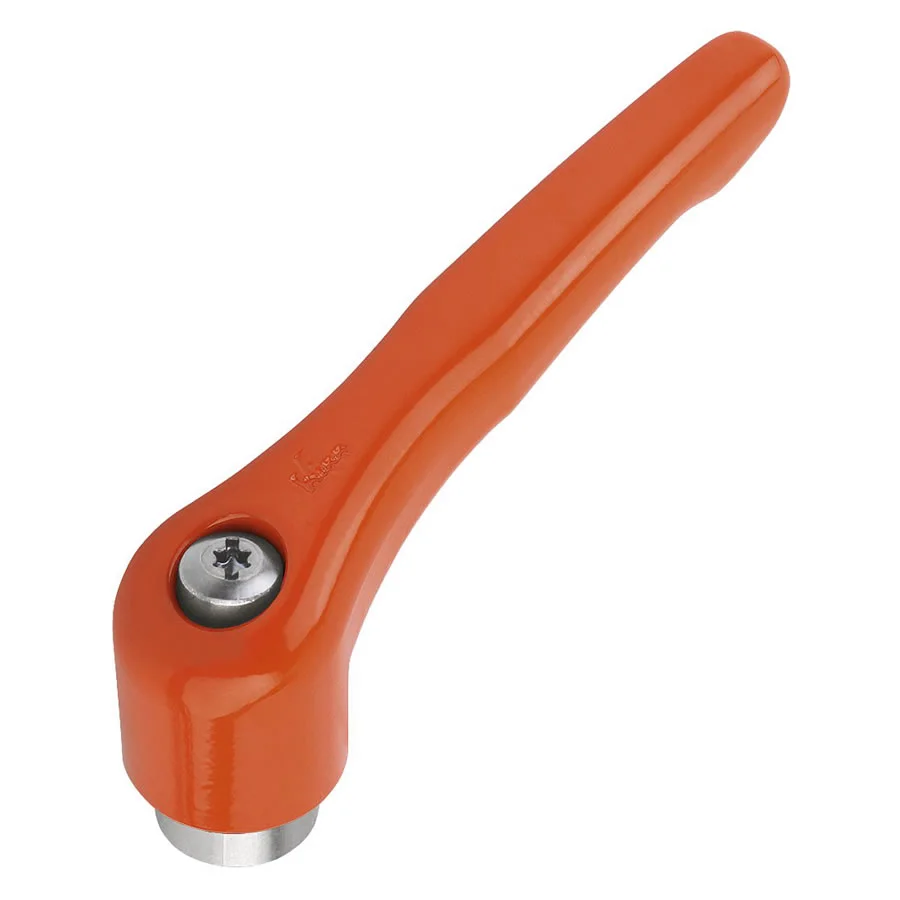

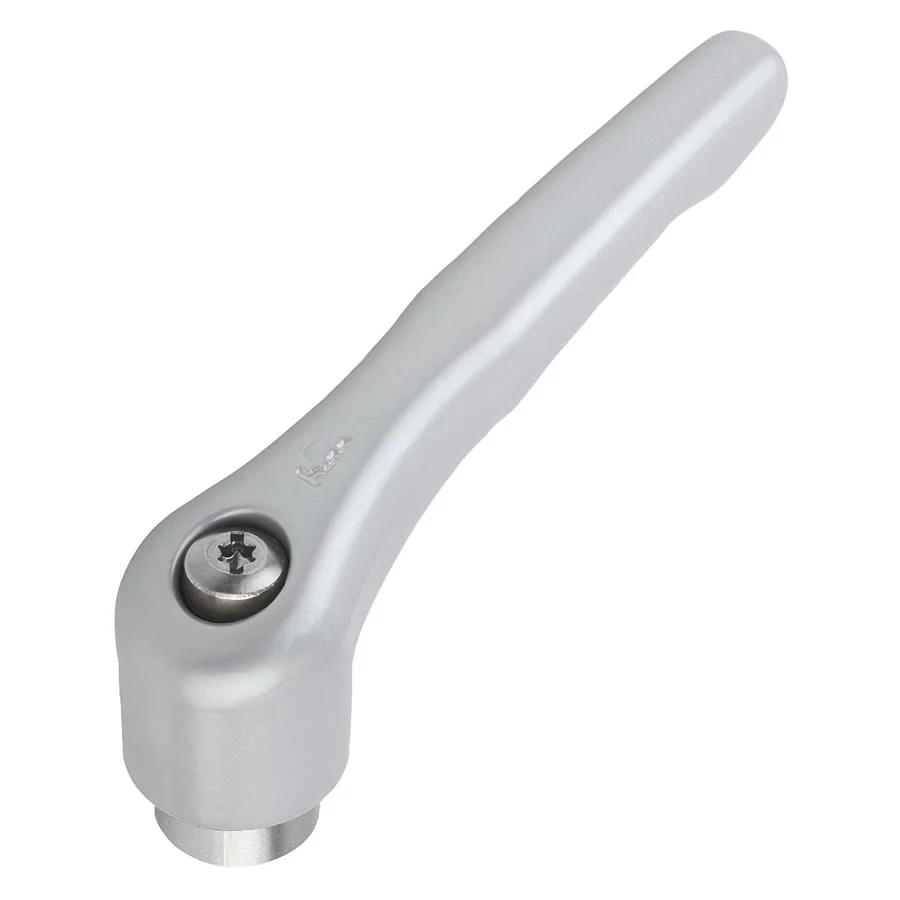

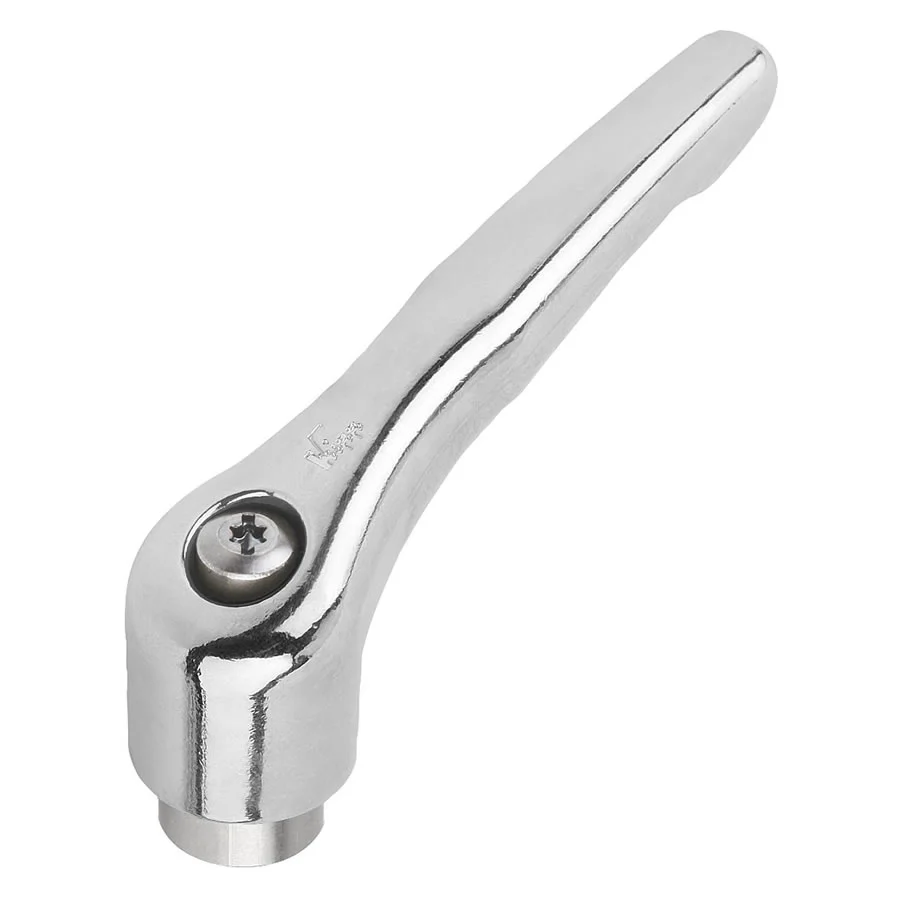

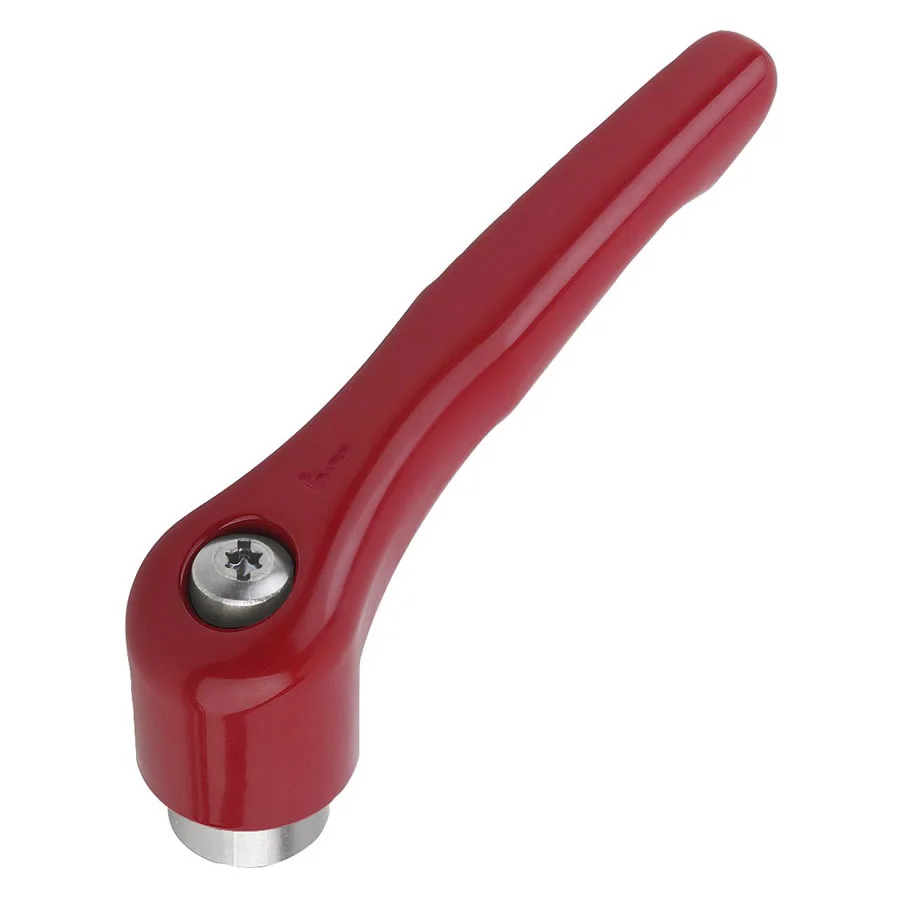

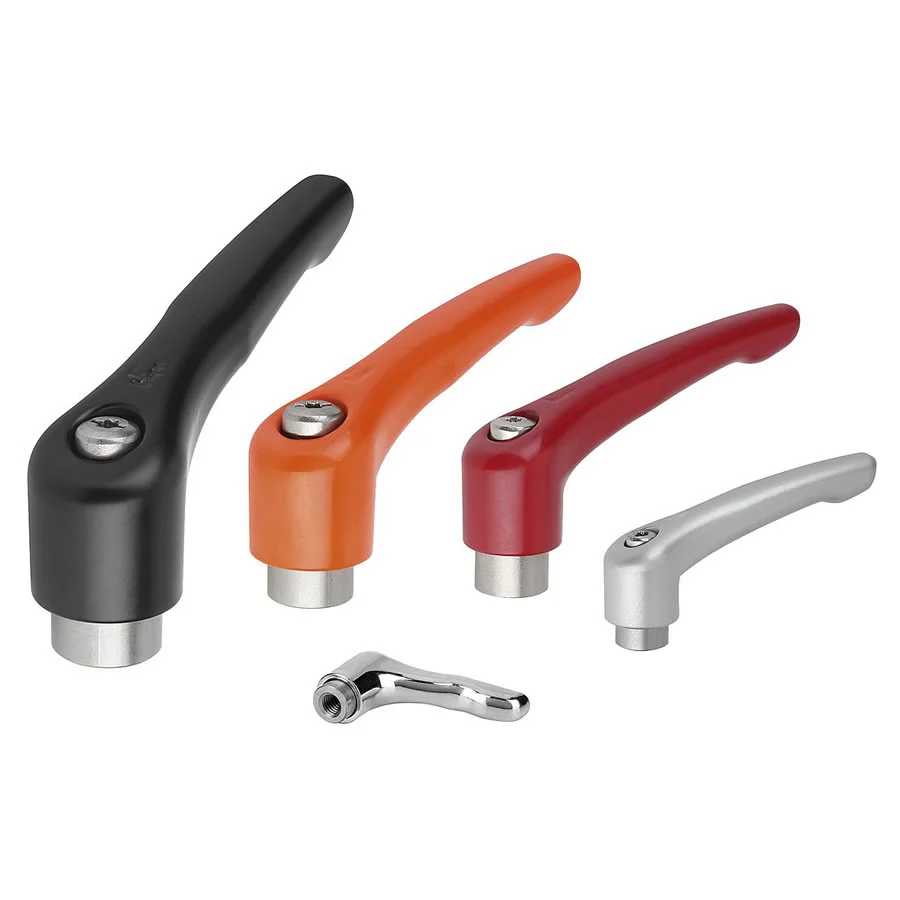

Note: Standard colours are: black satin finish, orange RAL 2004, ruby red RAL 3003, silver metallic, high gloss chromed.
On request: Other threads, colours and special versions. Dimension “H1” available in other lengths at extra charge.
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.
