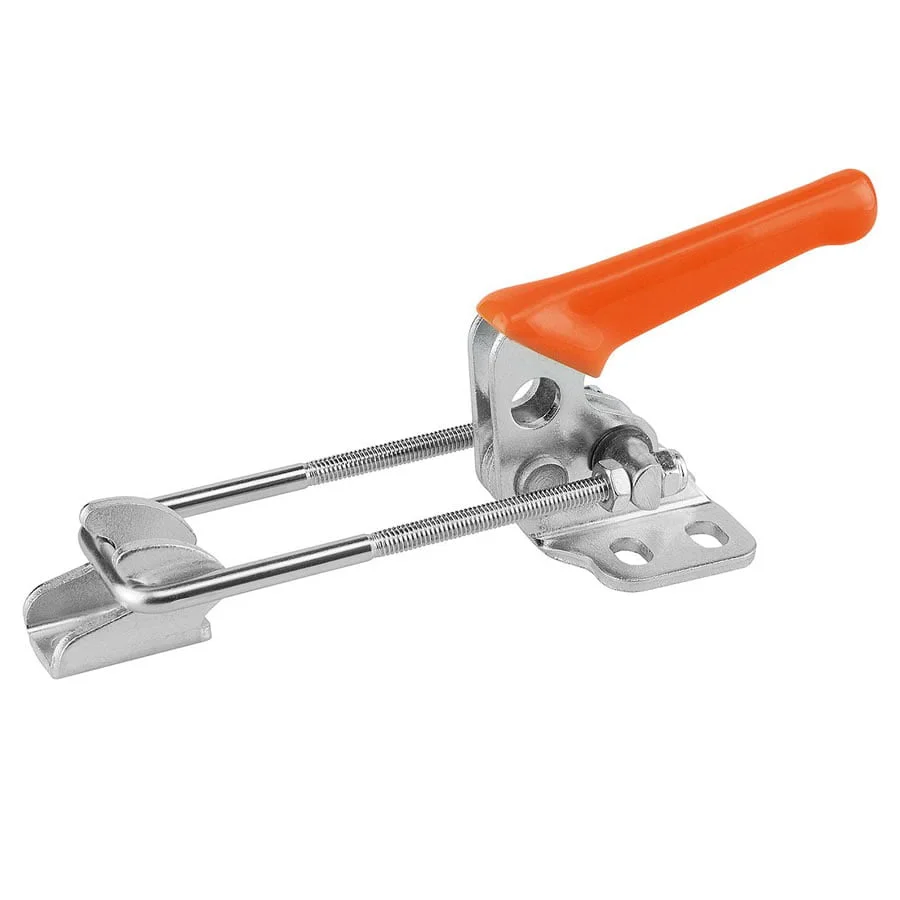

K0080 Kipp Toggle clamps latch horizontal with catch plate
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.
Steel or stainless steel.
Stainless steel bright.
Plastic grip oil-resistant.

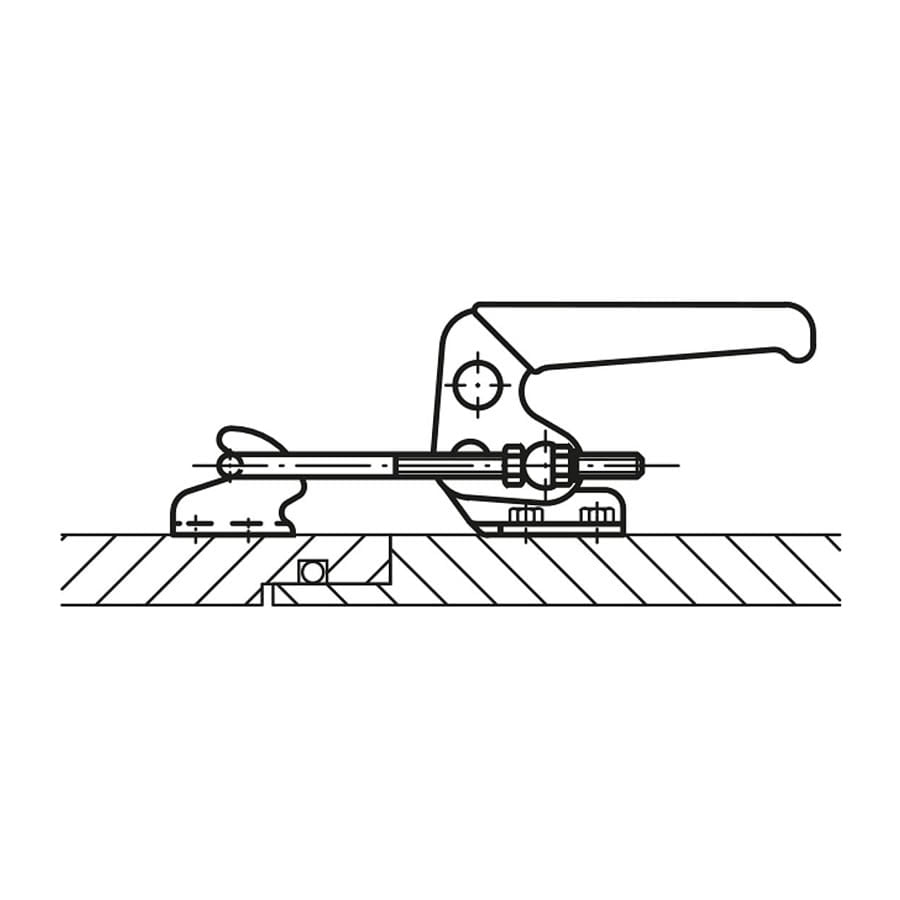

Horizontal latch toggle clamps are especially suitable for quickly closing and locking covers and hatches.
The travel can be set by altering the hasp length.
