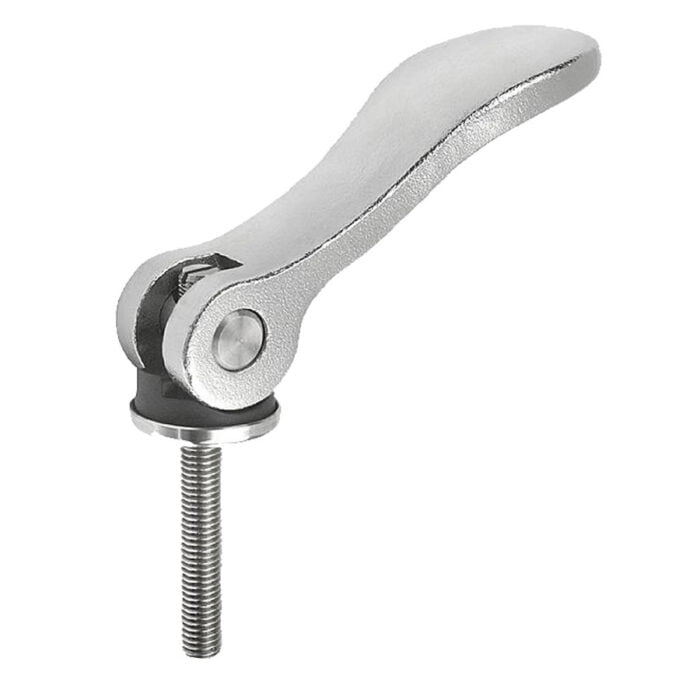

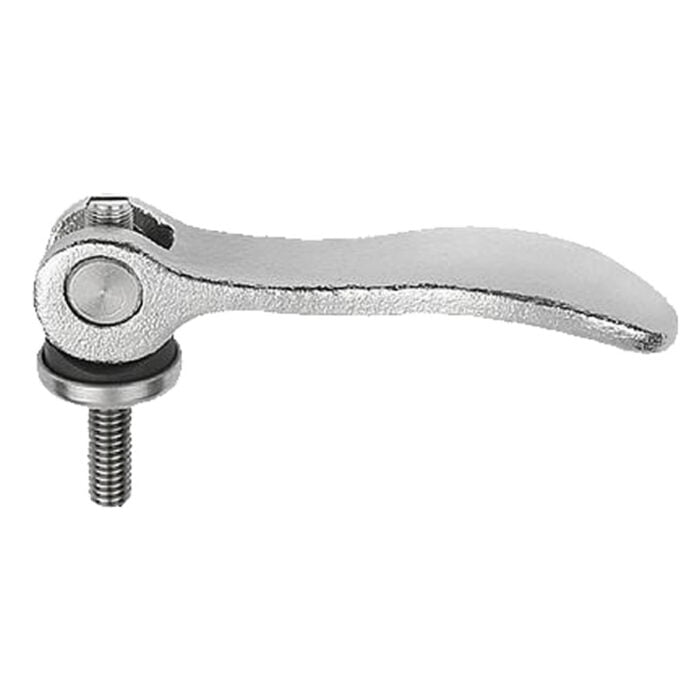

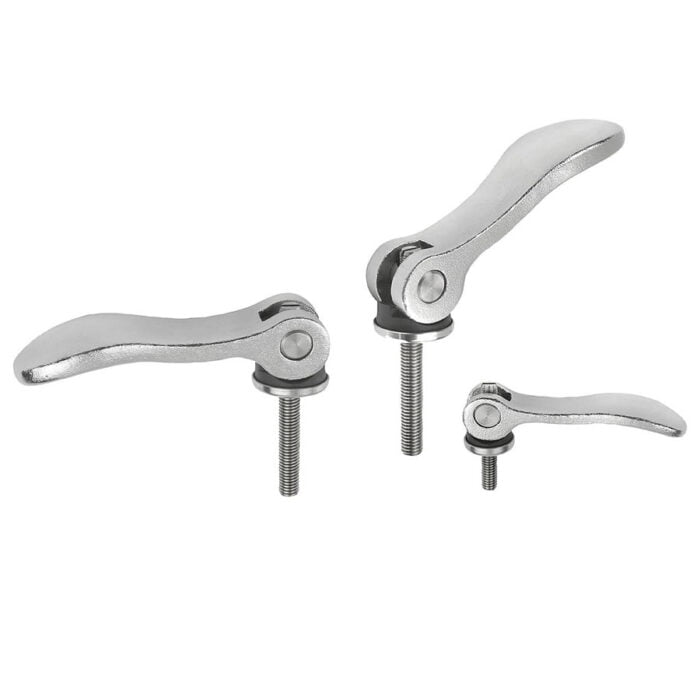

K0789 Kipp cam levers adjustable, external thread, steel

Material:
Handle steel 1.0401.
Thrust washer plastic PA 66 GF 35-X fibreglass reinforced.
Hinge pin stainless steel 1.4305.
Stud and washer steel, grade 5.8.

Version:
Handle, stud and washer trivalent blue passivated.
Thrust washer black.
Hinge pin bright.

Note:
Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).

Drawing reference:
1) setscrew for fine adjustment of lever

Special features:


Order No. K0789.1502205X20 K0789.1502205X30 K0789.1502205X40 K0789.1502205X50 K0789.1502206X20 K0789.1502206X30 K0789.1502206X40 K0789.1502206X50 K0789.2502208X25 K0789.2502208X30 K0789.2502208X40 K0789.2502208X50 K0789.2502210X25 K0789.2502210X30 K0789.2502210X40 K0789.2502210X50
