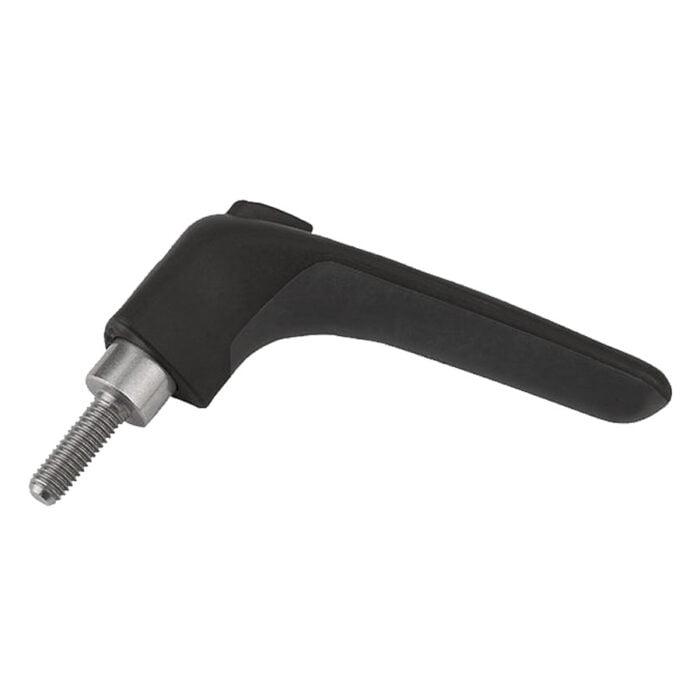

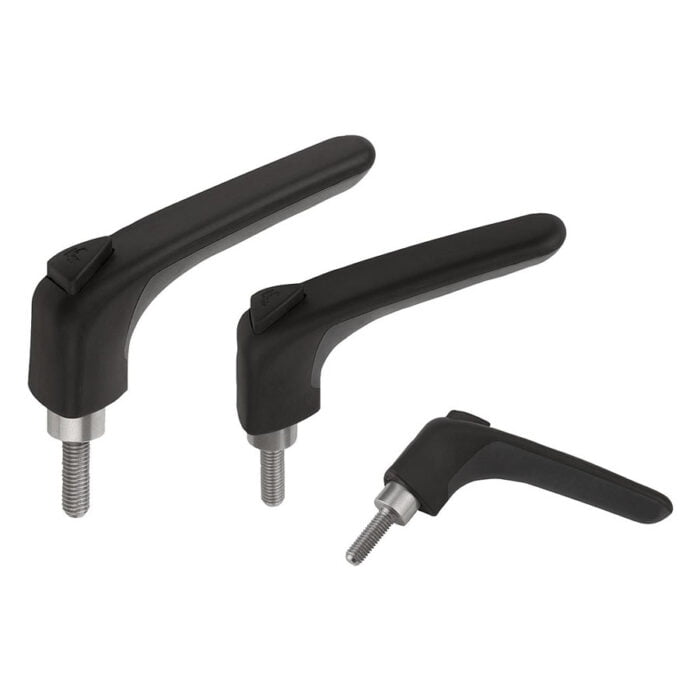

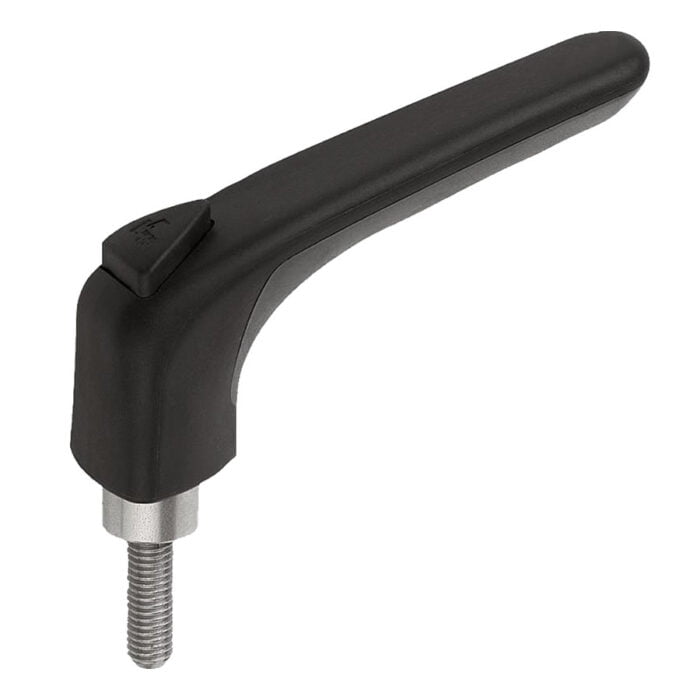

K0982 Kipp clamping levers ergonomic, external thread, steel parts stainless steel

Material:
Handle: Hard components reinforced plastic, toothed ring die-cast zinc.
Soft components thermoplastic elastomer.
Steel parts:
Stainless steel, 1.4305.

Version:
Steel parts bright.

Note:
The colour combinations
graphite black RAL 9011 (hard components) and
black grey RAL 7021 (soft components) are supplied as standard.

The soft components ensure a non-slip grip of the operating part. The closed design offers sufficient protection against dirt. The design was especially developed for ergonomic gripping requirements.

The push button improves disengagement and allows the handle to be easily used.

Where L ≥ 60 mm the thread length is 60 mm.

On request:
Other external threads, screw lengths, colour combinations and special versions.
Dimension “H1” available in other lengths on request at extra charge.

Special features:


Order No. K0982.3081X20 K0982.3081X25 K0982.3081X30 K0982.3081X40 K0982.3081X50 K0982.3081X60 K0982.3101X20 K0982.3101X25 K0982.3101X30 K0982.3101X40 K0982.3101X50 K0982.3101X60
