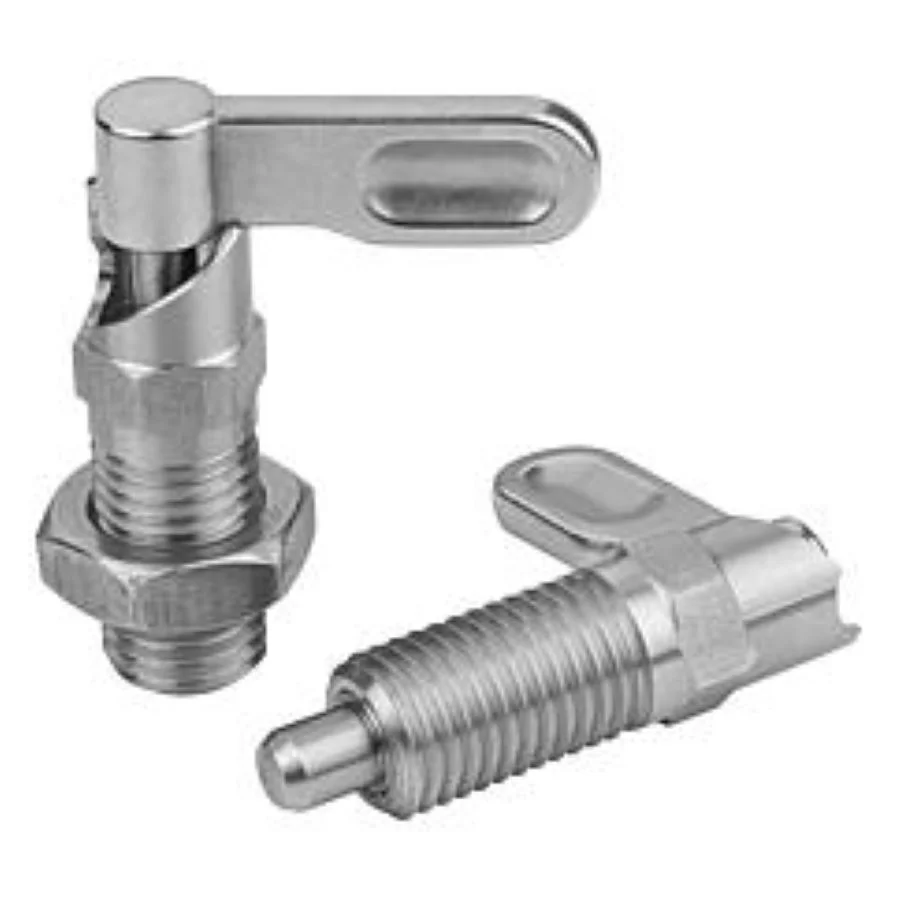

K1285 Kipp cam-action indexing plungers with stop, stainless steel
Product Specification Datasheet for K1285 Kipp cam-action indexing plungers with stop, stainless steel
Stainless steel 1.4305.
Indexing pin ground, not hardened.
Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin.
A notch ensures that the handle remains in this position.
A stop prevents the handle being rotated through more than 180° ensuring that the pin remains retracted.
Selecting which side the stop is on defines the rotation direction of the plunger.
Form A: grip uncoated without nut
Form B: grip uncoated with nut
1) stop left
2) stop right
Order No. K1285.1040410 K1285.1040510 K1285.1040610 K1285.1040512 K1285.1040612 K1285.1040812 K1285.1040616 K1285.1040816 K1285.1041016 K1285.10408201 K1285.10410201 K1285.10412201 K1285.2040410 K1285.2040510 K1285.2040610 K1285.2040512 K1285.2040612 K1285.2040812 K1285.2040616 K1285.2040816 K1285.2041016 K1285.20408201 K1285.20410201 K1285.20412201 K1285.1050410 K1285.1050510 K1285.1050610 K1285.1050512 K1285.1050612 K1285.1050812 K1285.1050616 K1285.1050816 K1285.1051016 K1285.10508201 K1285.10510201 K1285.10512201 K1285.2050410 K1285.2050510 K1285.2050610 K1285.2050512 K1285.2050612 K1285.2050812 K1285.2050616 K1285.2050816 K1285.2051016 K1285.20508201 K1285.20510201 K1285.20512201
