K1316 Kipp Clamping levers with internal thread and collar for Hygienic USIT® Freudenberg Process Seals sealing and shim washer
Product Specification Datasheet for K1316 Kipp Clamping levers with internal thread and collar for Hygienic USIT® Freudenberg Process Seals sealing and shim washerView CAD Files
Hygienic USIT Technical Information

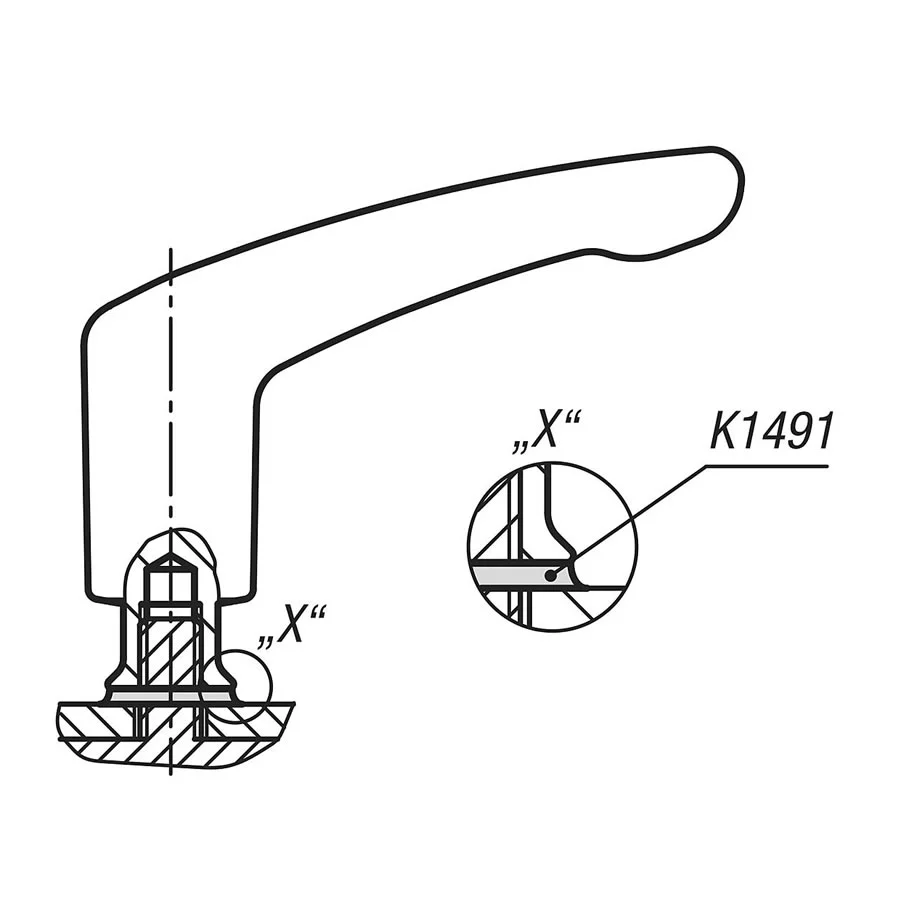

K1316 Kipp Clamping levers with internal thread and collar for Hygienic USIT® Freudenberg Process Seals sealing and shim washer is a clamping lever designed for the hygienic sector. The completely closed grip part and the shaft seal prevent contamination of the lever internal workings. Additionally, the screw insert has a conical collar so that the fastening point can be hygienically sealed with the Hygienic USIT® sealing and shim washer.

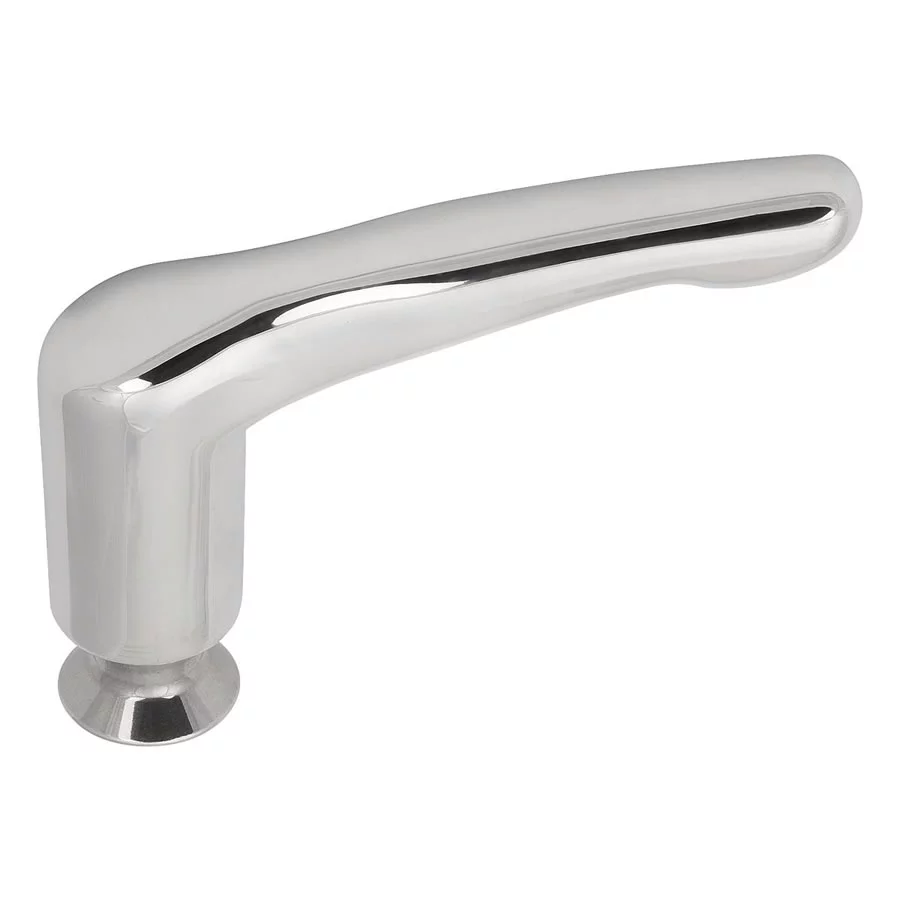

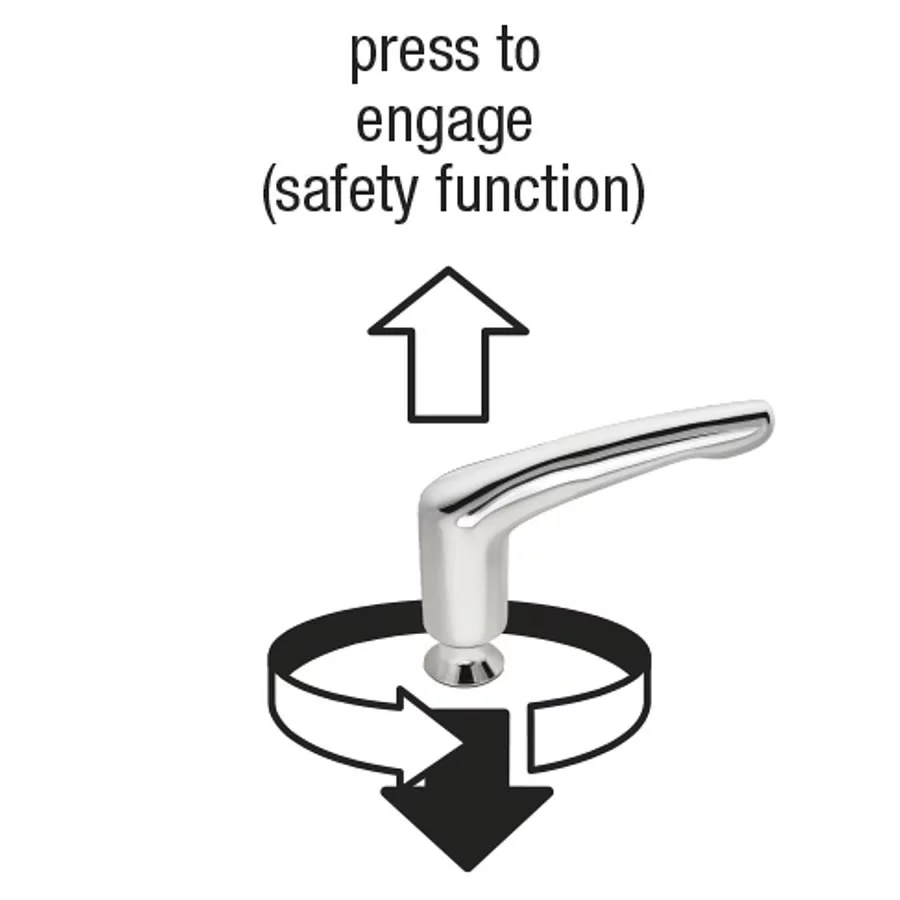

Due to the extremely high surface finish quality of much less than Ra 0.8 μm, hardly any dirt particles adhere to the surface. The highly polished surfaces enable easy cleaning At rest, the lever is freely rotatable. Unintended opening of the lever is excluded. The toothing is protected against high wear for mounting on vibrating elements.
- Material: Metal parts stainless steel 1.4404. Shaft seal 70 EPDM 291.
- Version: High-gloss polished.
- On request: Other thread depths and inch threads.
- Accessory: Hygienic USIT® sealing and shim washer K1491.
- NOVOnox hygienic product. The stainless steel products from the NOVOnox hygienic line target the foodstuff, pharmaceutical, chemical and packaging sectors. Includes Hygienic DESIGN – The new standard and Hygienic USIT® – The innovation in the processing industry.
