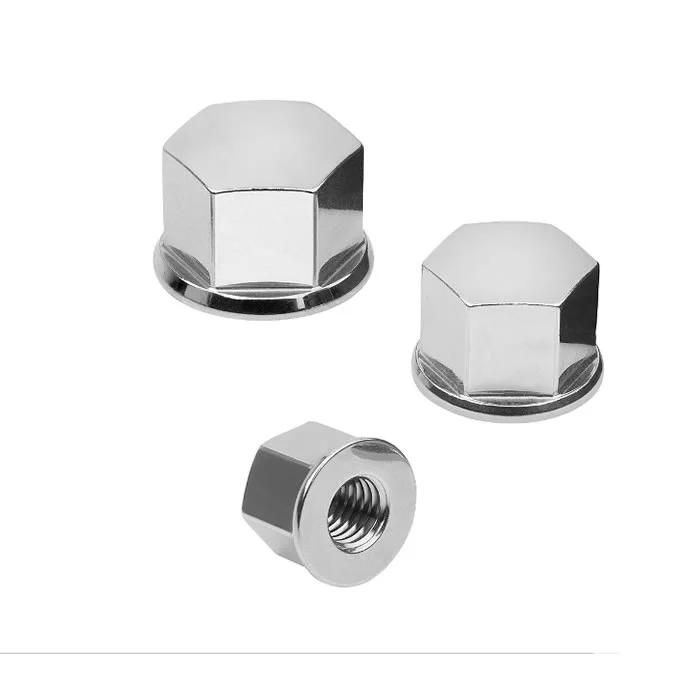

K1332 Kipp Cap nut compact in Hygienic DESIGN
Stainless steel 1.4404.
The surface of the cap nut is polished and, with regard to design optimised for the
use in hygienic environments. The top of the nut is spherical and the collar has a
conical formed top face. The nut has been designed as a low version so as to keep
troublesome corners as few as possible. Due to the extremely high quality surface
finish of much less than Ra 0.8 μm, hardly any dirt particles adhere to the surface.
Inch threads, high versions.
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table in the datasheet.
