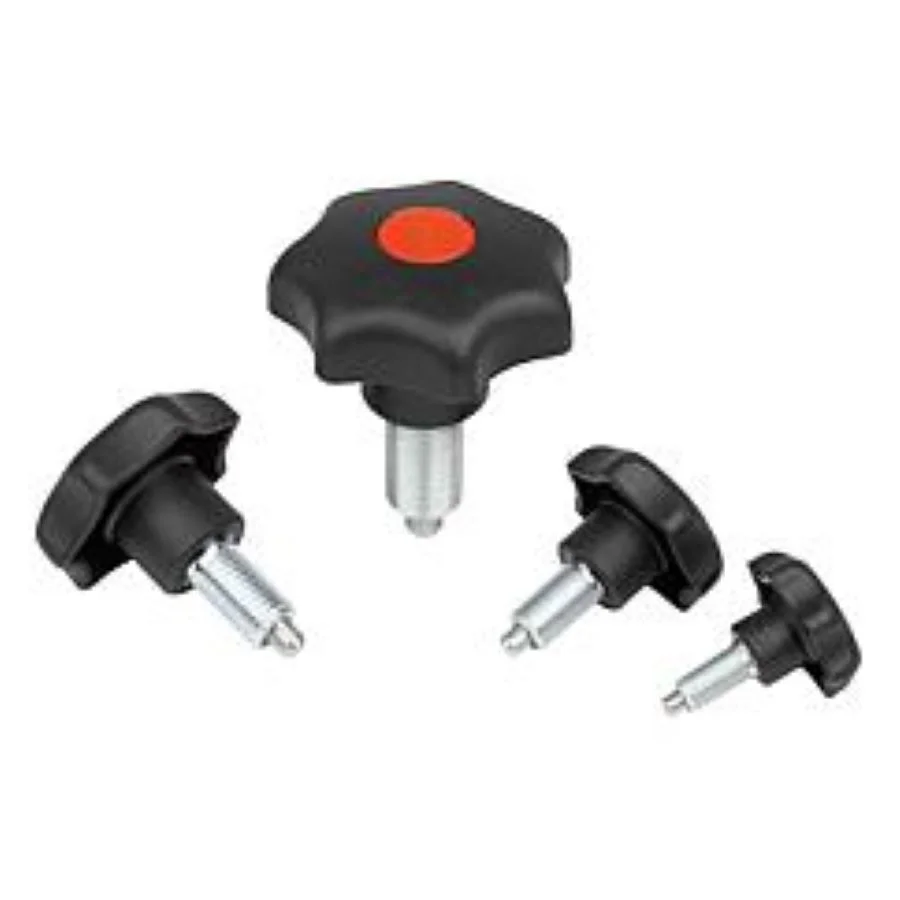

K1583 Kipp indexing and clamping grip with optical lock indicator

Product description:
The indexing and clamping grips enable the positioning, securing and clamping of diverse positioning elements with just one product. Indexing is carried out using the indexing pin and the item is clamped using the end face of the sleeve. A protruding signal button means that the indexing pin is not completely extended.

Material:
Star grip black grey thermoplastic.
Signal button red thermoplastic.
Threaded sleeve 1.0718.
Indexing pin stainless steel 1.4305.

Version:
Steel electro zinc-plated.
Stainless steel bright.

Advantages:
Optical indication of the engagement function.
Indexing and clamping with one product.
Ergonomic operation via star grip.

On request:
Special versions.

Accessory:
Hexagon nuts thin DIN 439

Special features:

Order No. K1583.108040 K1583.210050 K1583.312060 K1583.416080 K1583.108041 K1583.210051 K1583.312061 K1583.416081
