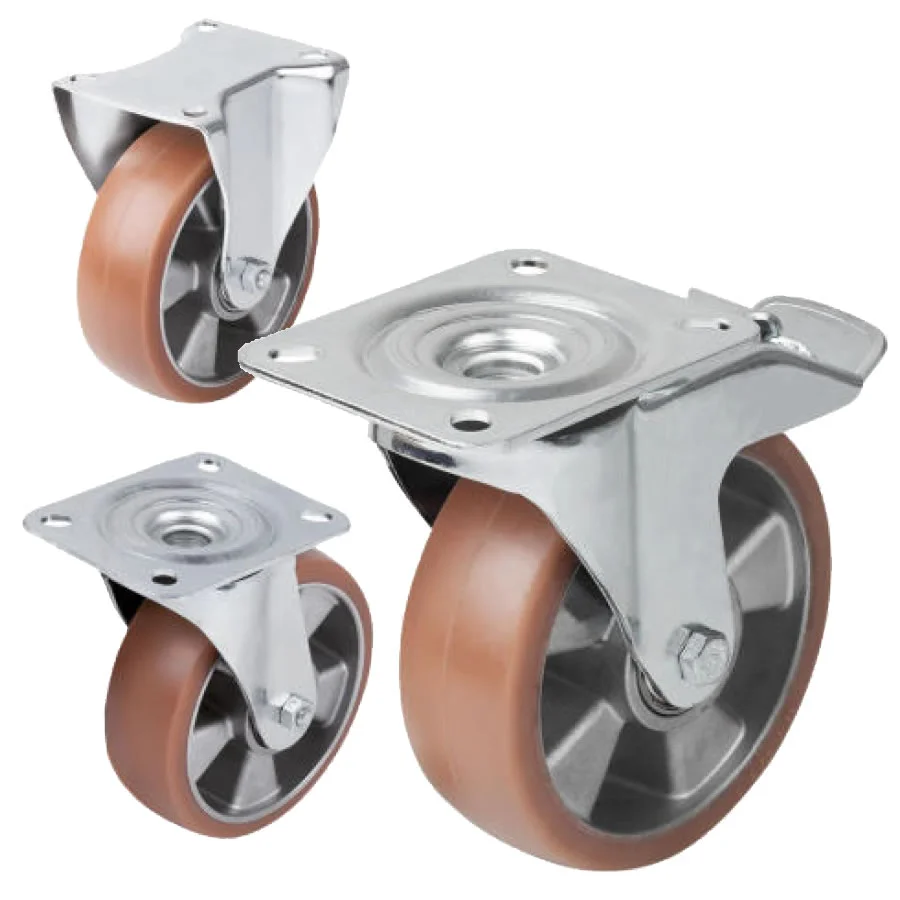

K1765 Kipp Swivel and fixed castors medium-duty version
Product Specification Datasheet for K1765 Kipp Swivel and fixed castors medium-duty versionView CAD Files
Swivel and fixed castors with mounting plate. Heavy loads can be easily transported using this load handling equipment. The
roll and swivel resistance is reduced with this new wheel series designed for intralogistic heavy load applications.
- Housing – steel plate, wheel rims – die-cast aluminium.
- Wheel tread, high quality polyurethane elastomere.
- Housing press formed.
- Wheel axle bolted.
- Double-row ball bearing with ball shield in the swivel head.
- Ball bearing wheel axle bearings.
- Permissible load: 200 – 400 kg.
- Temperature range: -25 °C to +70 °C.
Order No: K1765.101000401 K1765.101250401 K1765.101500501 K1765.101600501 K1765.102000501 K1765.10100040 K1765.10125040 K1765.10150050 K1765.10160050 K1765.10200050 K1765.101000402 K1765.101250402 K1765.101500502 K1765.101600502 K1765.102000502
