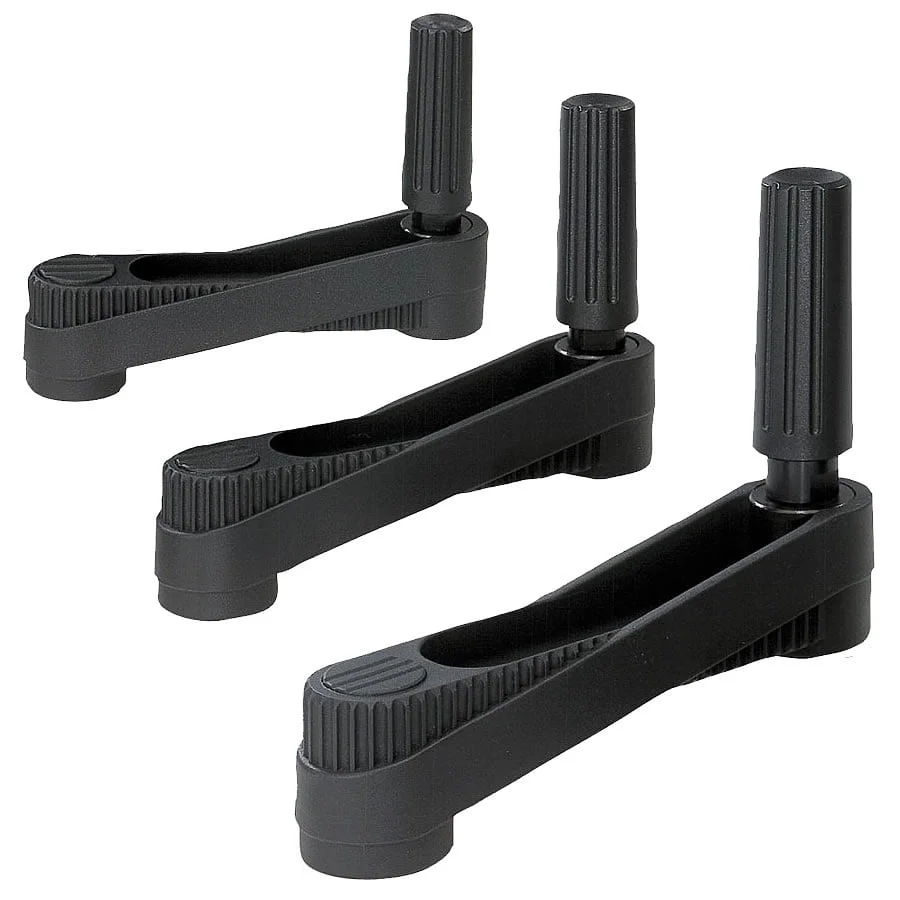

K0659 Kipp crank handles with revolving grip
View product information as a PDF datasheet:
Product Specification Datasheet for K0659 Kipp crank handles with revolving gripView CAD Files
Product Specification Datasheet for K0659 Kipp crank handles with revolving gripView CAD Files
K0659 Kipp crank handles with revolving grip. The hub cover and the revolving cylinder grip are supplied unassembled. To assemble, screw the grip into the tapped hole provided. The crank handles can be secured to the shaft by cross-pinning or by parallel key together with a DIN 6912 cap screw and DIN 7349 washer. Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
Available in 3 forms:
- Form PBON –locating hole without slot
- Form PBMN – locating hole with slot
- Form IV – with square socket
Description:
- Material: Crank thermoplastic. Cylinder grip thermoplastic and steel.
- Version: Black grey thermoplastic. Steel parts black oxidised.
- Accessory: K1160 cap screws screws, low head DIN 6912.
- NOVOgrip product line: Our NOVOgrip product line is the classic in the plastics sector – well thought out in every detail. Sophisticated design, easy-grip shape and good value for money. All the plastic elements are available in several colour combinations and the most varied sizes.
Category: Crank handles
Tag: Kipp Crank Handles
Order No:
K0659.3108 K0659.3110 K0659.3210 K0659.3212 K0659.3312 K0659.3314 K0659.31086 K0659.31106 K0659.32106 K0659.32126 K0659.33126 K0659.33146 K0659.310802 K0659.311003 K0659.321003 K0659.321204 K0659.331204 K0659.331405 K0659.3212046 K0659.3210036 K0659.3312046 K0659.3314056 K0659.3108026 K0659.3110036 K0659.4108 K0659.4110 K0659.4210 K0659.4212 K0659.4312 K0659.4314 K0659.41086 K0659.41106 K0659.42106 K0659.42126 K0659.43126 K0659.43146
